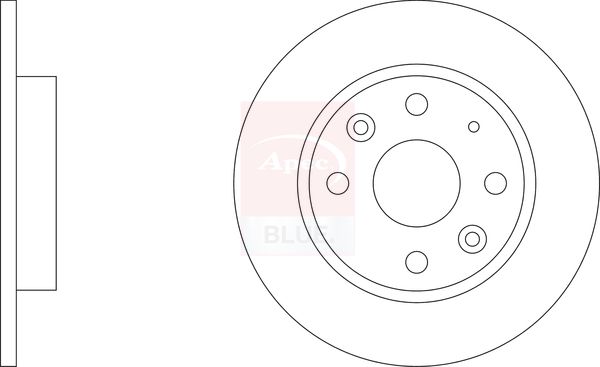

Apec Blue SDK6769 Brake Disc - 1

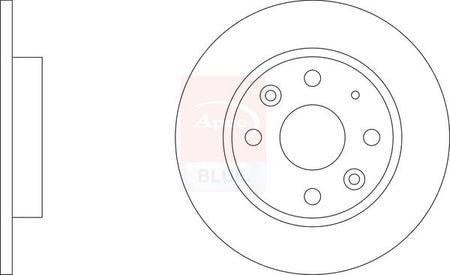

Apec Blue SDK6769 Brake Disc - 1
APEC BLUE

Apec Blue SDK6769 Brake Disc

SKU: SDK6769
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£13.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
MX-5   (NA)
Description Cylinder Capacity Horse Power Year
1.6 (NA6C) 1597 CCM 115 HP 05/1990 - 01/1994
1.6 (NA6C) 1598 CCM 90 HP 01/1995 - 04/1998
1.6 Turbo 1597 CCM 150 HP 09/1990 - 12/1992

The Apec Blue SDK6769 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 231 mm outer diameter, 9 mm brake disc thickness, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 231
Brake Disc Thickness [mm] : 9
Height [mm] : 34
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 55
Number of Holes : 4
Test Mark : 90R-02C0355/1011
  • Vendor APEC BLUE
  • SKU SDK6769
  • Barcode 5028906137786
  • MAZDA : B46126251A B46126251C B46126251D B4Y226251C NA0126251 NA0126251A NA0126251C NA0126251D NA0133251A SA0126251A
  • APEC : DSK304
  • APEC : SDK6769
  • BLUE PRINT : ADM54339
  • BORG & BECK : BBD4051
  • BORG & BECK : BBD4609
  • BORG & BECK : BBD5065
  • BOSCH : 0 986 478 242
  • HELLA : 8DD 355 106-471
  • MEYLE : 35-15 523 0008
  • MINTEX : MDC772
  • National : NBD523
  • TEXTAR : 92096600
