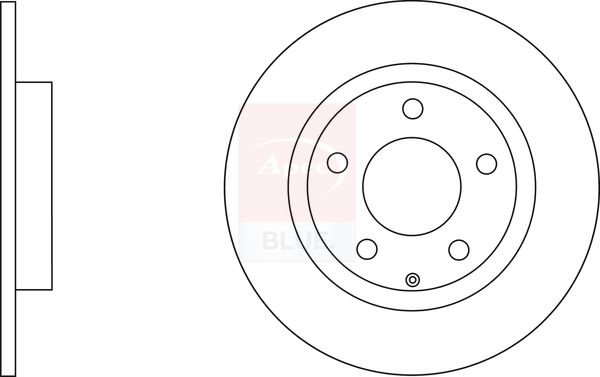

Apec Blue SDK6771 Brake Disc - 1
Apec Blue SDK6771 Brake Disc - 1
APEC BLUE

Apec Blue SDK6771 Brake Disc

SKU: SDK6771
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£18.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 (BM, BN)
Description Cylinder Capacity Horse Power Year
1.5 1496 CCM 100 HP 09/2013 - 05/2019
2.0 1998 CCM 120 HP 09/2013 - 05/2019
2.2 D 2191 CCM 150 HP 09/2013 - 05/2019
2.0 1998 CCM 165 HP 07/2013 - 05/2019
1.6 (BM4, BN4) 1598 CCM 105 HP 09/2013 - 05/2019
1.5 D (BMLFS, BM4, BN4) 1499 CCM 105 HP 02/2016 - 05/2019
3 Saloon (BM_, BN_)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 120 HP 09/2013 - 05/2019
2.2 D 2191 CCM 150 HP 09/2013 - 05/2019
2.0 1998 CCM 165 HP 11/2014 - 05/2019
1.5 1496 CCM 100 HP 10/2014 - 05/2019
1.6 (BM6FJ) 1598 CCM 105 HP 09/2013 - 05/2019
1.5 D (BMLFP, BMLFS) 1499 CCM 105 HP 06/2016 - 05/2019
3 Saloon (BP_)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5S, BP6S) 1496 CCM 120 HP From 11/2018
2.0 SKYACTIV-X M Hybrid (BP2S) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-G M Hybrid (BP5S, BP6S) 1998 CCM 150 HP From 07/2020
2.0 SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
3 Hatchback (BP)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5H, BP6H) 1496 CCM 120 HP From 06/2019
SKYACTIV-X M Hybrid (BP2H) 1998 CCM 179 HP From 06/2019
SKYACTIV-X M Hybrid AWD (BP2H) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-G (BP5H, BP6H) 1998 CCM 150 HP From 11/2018
2.0 SKYACTIV-G M Hybrid 1998 CCM 150 HP From 01/2020
SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 02/2021
2.5 e-SKYACTIV-G (BP5H) 2488 CCM 140 HP From 06/2024
CX-3 (DK)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G AWD (DK4W7, DKEAW) 1998 CCM 150 HP From 05/2015
1.8 SKYACTIV-D (DK4WS) 1759 CCM 116 HP From 02/2018
2.0 SKYACTIV-G 1998 CCM 121 HP From 02/2018
CX-30 (DM, DT, ED)
Description Cylinder Capacity Horse Power Year
SKYACTIV-G M Hybrid 1998 CCM 122 HP From 07/2019
SKYACTIV-X M Hybrid (DMFP) 1998 CCM 179 HP From 07/2019
1.8 SKYACTIV-D 1759 CCM 116 HP From 07/2019
SKYACTIV-G M Hybrid (DM5W, DM6W) 1998 CCM 150 HP From 01/2020
e-SKYACTIV-X M Hybrid 1998 CCM 186 HP From 06/2021
2.5 e-SKYACTIV-G (ED5W) 2488 CCM 140 HP From 06/2024

The Apec Blue SDK6771 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 265 mm outer diameter, 9 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 265
Brake Disc Thickness [mm] : 9
Height [mm] : 39
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0355/0018
  • Vendor APEC BLUE
  • SKU SDK6771
  • Barcode 5028906137809
  • MAZDA : B45G26251A B45G26251B BDTS26251
  • APEC : DSK3041
  • APEC : SDK6771
  • BLUE PRINT : ADM543131
  • BORG & BECK : BBD4582
  • BORG & BECK : BBD4614
  • BORG & BECK : BBD5382
  • BORG & BECK : BBD5663
  • BOSCH : 0 986 479 C26
  • BOSCH : 0 986 479 E54
  • DELPHI : BG5101C
  • Fahren : FBD6771
  • FEBI BILSTEIN : 108513
  • HELLA : 8DD 355 120-461
  • MEYLE : 35-15 523 0019/PD
  • MINTEX : MDC2605
  • NAPA : NBD5654
  • National : NBD1909
  • SKF : VKBD 90608 S2
  • TEXTAR : 92267703
