Apec Blue SDK6777 Brake Disc

SKU: SDK6777

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£23.49 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI

SWIFT III (FZ, NZ)

Description	Cylinder Capacity	Horse Power	Year
1.2 (AZH412, ZC72S)	1242 CCM	94 HP	10/2010 - 04/2017
1.2 4x4 (AZH412, ZD72S)	1242 CCM	94 HP	10/2010 - 04/2017
1.3 DDiS (AZG413D, ZC02S, ZC92S)	1248 CCM	75 HP	10/2010 - 04/2017
1.2 (AZH412, AZG412, ZC72S)	1242 CCM	91 HP	08/2012 - 04/2017
1.2 4WD (AZH412, AZG412, ZD72S)	1242 CCM	91 HP	08/2012 - 04/2017

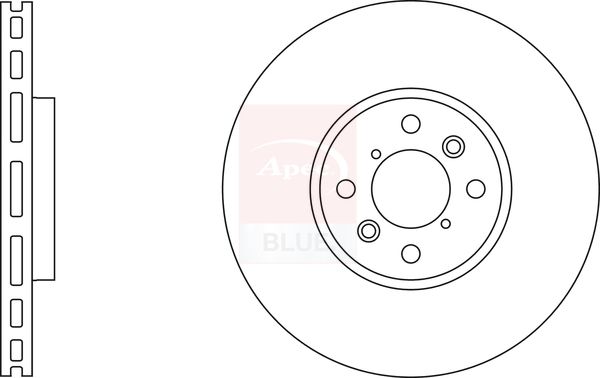

The Apec Blue SDK6777 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 272 mm outer diameter, 22 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 272

Brake Disc Thickness [mm] : 22

Height [mm] : 40

Bolt Hole Circle Ø [mm] : 100

Wheel Bolt Bore Diameter [mm] : 13

Centering Diameter [mm] : 60

Number of Holes : 4

Test Mark : 90R-02C0349/0052

APEC : DSK3051
APEC : SDK6777
BLUE PRINT : ADK84340
BORG & BECK : BBD5394
BOSCH : 0 986 479 789
BOSCH : 0 986 479 V08
DELPHI : BG5222C
Fahren : FBD6777
FEBI BILSTEIN : 108504
HELLA : 8DD 355 123-071
MEYLE : 33-15 521 0026/PD
MINTEX : MDC2713
NAPA : NBD5218
National : NBD1586
SKF : VKBD 80185 V2
TEXTAR : 92278203
