Apec Blue SDK6796 Brake Disc - 1
Apec Blue SDK6796 Brake Disc - 1
APEC BLUE

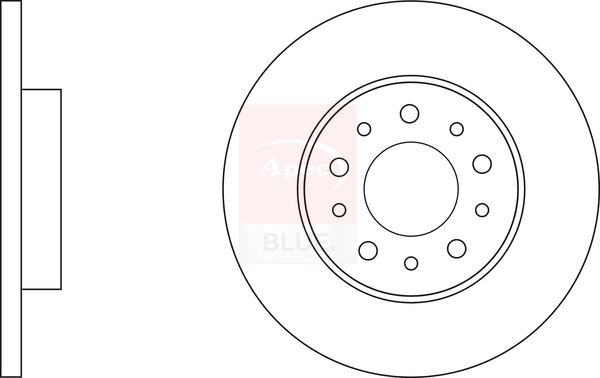

Apec Blue SDK6796 Brake Disc

SKU: SDK6796
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£19.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT
500L (351_, 352_)
Description Cylinder Capacity Horse Power Year
1.4 (199LYB1B) 1368 CCM 95 HP From 09/2012
0.9 (199LYC1B) 875 CCM 105 HP From 09/2012
1.3 D Multijet (199LXY1A, 199LXY11) 1248 CCM 84 HP From 09/2012
1.6 D Multijet (199LYD1B) 1598 CCM 105 HP 09/2012 - 05/2018
0.9 Natural Power (199LYC1B) 875 CCM 86 HP From 03/2013
1.3 D Multijet (199.LYM11, 199.LYM1A) 1248 CCM 95 HP From 06/2014
0.9 Natural Power (199LYC1B) 875 CCM 80 HP From 04/2017
TIPO Saloon (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356SXA1B) 1368 CCM 95 HP From 10/2015
1.6 (356SXE11) 1598 CCM 110 HP 10/2015 - 10/2020
1.3 D (356SXB1A, 356SXH1A, 356SXD1A) 1248 CCM 95 HP 10/2015 - 10/2020
1.6 D (356SXG1B) 1598 CCM 120 HP 10/2015 - 10/2020
1.4 LPG (356SXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.6 Multijet (357SXG1) 1598 CCM 131 HP From 11/2020
TIPO Hatchback (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356HXA1B, 357) 1368 CCM 95 HP From 03/2016
1.6 D (356HXG1B, 356HXG11) 1598 CCM 120 HP 03/2016 - 10/2020
1.3 D (356HXH1A) 1248 CCM 95 HP From 03/2016
1.4 (356HXF1B) 1368 CCM 120 HP 03/2016 - 10/2020
1.4 LPG (356HXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.6 (356HXE11) 1598 CCM 110 HP 07/2016 - 10/2020
1.6 Multijet (357HXG1) 1598 CCM 131 HP From 11/2020
TIPO Estate (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356WXA1B) 1368 CCM 95 HP 03/2016 - 10/2020
1.3 D (356WXH1A) 1248 CCM 95 HP From 03/2016
1.6 (356WXE11) 1598 CCM 110 HP 07/2016 - 10/2020

The Apec Blue SDK6796 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 251 mm outer diameter, 10 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 251
Brake Disc Thickness [mm] : 10
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 98
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 59
Number of Holes : 5
Test Mark : 90R-02C0355/0465
  • Vendor APEC BLUE
  • SKU SDK6796
  • Barcode 5028906138059
  • FIAT : 51808471 51885409 52048984 52048985 52067389 52067390
  • APEC : DSK3087
  • APEC : SDK6796
  • BLUE PRINT : ADL144338
  • BORG & BECK : BBD4614
  • BORG & BECK : BBD5312
  • Fahren : FBD6796
  • FEBI BILSTEIN : 105716
  • HELLA : 8DD 355 118-071
  • MEYLE : 215 523 0036/PD
  • MINTEX : MDC2401
  • NAPA : NBD5661
  • National : NBD1830
  • SKF : VKBD 90392 S2
  • TEXTAR : 92244303
