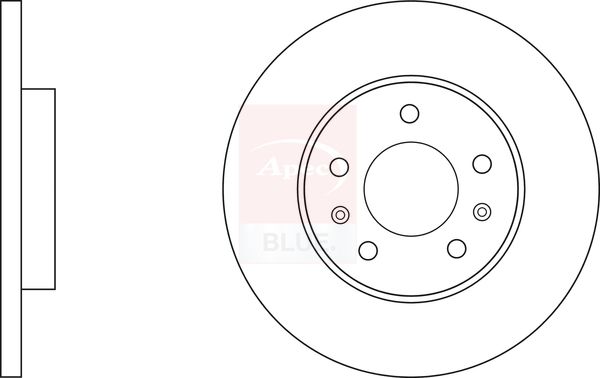

Apec Blue SDK6798 Brake Disc - 1

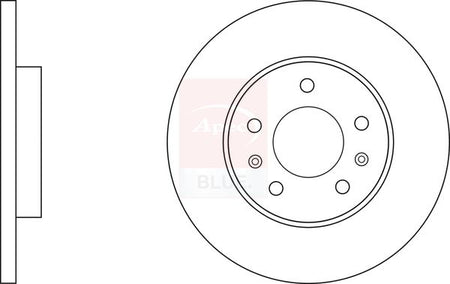

Apec Blue SDK6798 Brake Disc - 1
APEC BLUE

Apec Blue SDK6798 Brake Disc

SKU: SDK6798
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£28.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
QASHQAI II (J11, J11_)
Description Cylinder Capacity Horse Power Year
1.2 DIG-T 1197 CCM 116 HP From 11/2013
1.5 dCi 1461 CCM 110 HP From 11/2013
1.6 dCi 1598 CCM 130 HP From 11/2013
1.6 dCi ALL MODE 4x4-i 1598 CCM 130 HP From 11/2013
2.0 (J11E) 1997 CCM 144 HP From 06/2014
1.6 DIG-T 1618 CCM 163 HP From 02/2014
2.0 ALL MODE 4x4-i (J11R) 1997 CCM 144 HP From 12/2013
1.3 DIG-T 1332 CCM 140 HP From 08/2018
1.3 DIG-T 1332 CCM 160 HP From 08/2018
1.5 dCi 1461 CCM 116 HP From 06/2018
1.7 dCi 1749 CCM 150 HP From 01/2019
1.7 dCi ALL MODE 4x4-i 1749 CCM 150 HP From 01/2019
1.3 DIG-T 1332 CCM 158 HP From 10/2020
QASHQAI II VAN (J11_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 110 HP From 05/2015
1.5 dCi 1461 CCM 116 HP From 06/2018
RENAULT
CAPTUR II (HF_)
Description Cylinder Capacity Horse Power Year
E-TECH 160 1598 CCM 158 HP From 05/2020
TCe 160 (HFN1) 1332 CCM 158 HP From 09/2020
E-TECH 145 (HFMU) 1598 CCM 143 HP From 01/2022
E-TECH 160 1598 CCM 160 HP From 03/2021
KADJAR (HA_, HL_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 110 (HLA3) 1461 CCM 110 HP From 06/2015
1.6 dCi 130 (HLA4) 1598 CCM 130 HP From 06/2015
1.6 dCi 130 4x4 (HLA4) 1598 CCM 130 HP From 06/2015
1.2 TCe 130 (HLMR) 1197 CCM 130 HP From 06/2015
1.6 TCe 165 (HLMH) 1618 CCM 163 HP From 11/2016
1.3 TCe 140 (HLNB, HLN1) 1332 CCM 140 HP From 08/2018
1.5 BLUE dCi 115 (HLA6) 1461 CCM 116 HP From 08/2018
1.3 TCe 160 (HLNC) 1332 CCM 160 HP From 08/2018
1.7 Blue dCi 150 4WD (HLA7) 1749 CCM 150 HP From 08/2018
1.7 Blue dCi 150 (HLA7) 1749 CCM 150 HP From 08/2018
1.3 TCe 160 (HLN2) 1332 CCM 158 HP From 07/2021

The Apec Blue SDK6798 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 290 mm outer diameter, 13 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 13
Height [mm] : 47
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0355/0618
  • Vendor APEC BLUE
  • SKU SDK6798
  • Barcode 5028906138073
  • NISSAN : 432064EA0A 432064EA0B
  • RENAULT : 432068231R
  • APEC : DSK3089
  • APEC : SDK6798
  • BLUE PRINT : ADN143177
  • BORG & BECK : BBD4631
  • BORG & BECK : BBD5367
  • BOSCH : 0 986 479 D17
  • Fahren : FBD6798
  • FEBI BILSTEIN : 108445
  • HELLA : 8DD 355 122-771
  • MEYLE : 36-15 523 0055/PD
  • MINTEX : MDC2693
  • NAPA : NBD5497
  • National : NBD1884
  • SKF : VKBD 90457 S2
  • TEXTAR : 92274003
  • VALEO : 672714
