Apec Blue SDK6805 Brake Disc - 1
Apec Blue SDK6805 Brake Disc - 1
APEC BLUE

Apec Blue SDK6805 Brake Disc

SKU: SDK6805
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£31.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
328 i 1997 CCM 245 HP 11/2011 - 10/2018
320 d xDrive 1995 CCM 163 HP 08/2012 - 10/2018
320 i xDrive 1997 CCM 184 HP 07/2012 - 10/2018
320 d xDrive 1995 CCM 184 HP 08/2012 - 06/2015
328 i xDrive 1997 CCM 245 HP 07/2012 - 08/2016
3 Gran Turismo (F34)
Description Cylinder Capacity Horse Power Year
325 d 1995 CCM 211 HP 07/2013 - 06/2016
320 d 1995 CCM 163 HP 03/2013 - 03/2018
320 i 1997 CCM 184 HP 03/2013 - 06/2016
328 i 1997 CCM 245 HP 03/2013 - 06/2016
318 d 1995 CCM 143 HP 03/2013 - 06/2015
320 d 1995 CCM 184 HP 03/2013 - 06/2015
320 i xDrive 1997 CCM 184 HP 11/2012 - 06/2016
328 i xDrive 1997 CCM 245 HP 07/2013 - 06/2016
320 d xDrive 1995 CCM 184 HP 07/2013 - 06/2015
325 d 1995 CCM 218 HP 07/2013 - 06/2016
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
320 i 1997 CCM 184 HP 11/2012 - 06/2015
328 i 1997 CCM 245 HP 07/2012 - 06/2015
316 d 1995 CCM 116 HP 11/2012 - 06/2019
318 d 1995 CCM 143 HP 11/2012 - 06/2015
320 d 1995 CCM 184 HP 07/2012 - 02/2016
320 d 1995 CCM 163 HP 07/2012 - 06/2019
325 d 1995 CCM 218 HP 03/2013 - 02/2016
328 i xDrive 1997 CCM 245 HP 03/2013 - 06/2016
320 i xDrive 1997 CCM 184 HP 03/2013 - 06/2015
320 d xDrive 1995 CCM 184 HP 03/2013 - 06/2015
316 i 1598 CCM 136 HP 03/2013 - 06/2015
4 Coupe (F32, F82)
Description Cylinder Capacity Horse Power Year
420 d xDrive 1995 CCM 184 HP 11/2013 - 02/2015
420 i xDrive 1997 CCM 184 HP 11/2013 - 02/2016
428 i 1997 CCM 245 HP 07/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 07/2013 - 02/2016
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
420 d 1995 CCM 184 HP 10/2013 - 06/2015
428 i 1997 CCM 245 HP 11/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
420 i 1997 CCM 184 HP 07/2014 - 02/2016
425 d 1995 CCM 218 HP 07/2014 - 02/2016
420 d 1995 CCM 200 HP 10/2013 - 06/2015
420 d 1995 CCM 190 HP 07/2015 - 07/2020
4 Gran Coupe (F36)
Description Cylinder Capacity Horse Power Year
420 d 1995 CCM 184 HP 03/2014 - 02/2015
420 d xDrive 1995 CCM 184 HP 03/2014 - 02/2015
420 i 1997 CCM 184 HP 03/2014 - 02/2017
428 i 1997 CCM 245 HP 03/2014 - 06/2016
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
420 i xDrive 1997 CCM 184 HP 07/2014 - 02/2016

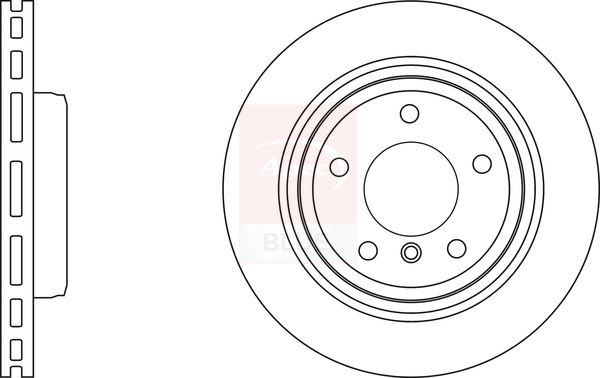

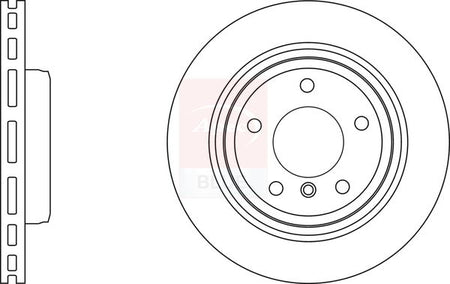

The Apec Blue SDK6805 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 20 mm brake disc thickness, and 17 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 20
Height [mm] : 66
Bolt Hole Circle Ø [mm] : 120
Wheel Bolt Bore Diameter [mm] : 17
Centering Diameter [mm] : 75
Number of Holes : 5
Test Mark : 90R-02C0443/0934
  • Vendor APEC BLUE
  • SKU SDK6805
  • Barcode 5028906138141
  • BMW : 34216792229 34216864900
  • APEC : DSK3099
  • APEC : SDK6805
  • BLUE PRINT : ADB114334
  • BORG & BECK : BBD4579
  • BORG & BECK : BBD5259
  • BOSCH : 0 986 479 045
  • Fahren : FBD6805
  • FEBI BILSTEIN : 43868
  • HELLA : 8DD 355 118-271
  • MEYLE : 315 523 0032/PD
  • MINTEX : MDC2356
  • NAPA : NBD5174
  • National : NBD1876
  • SKF : VKBD 90120 V1
  • TEXTAR : 92239703
  • VALEO : 672778
