Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

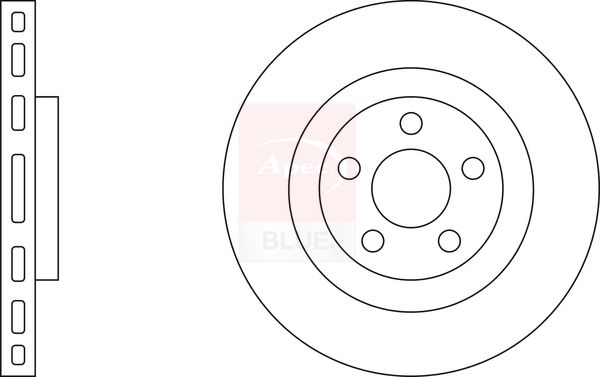

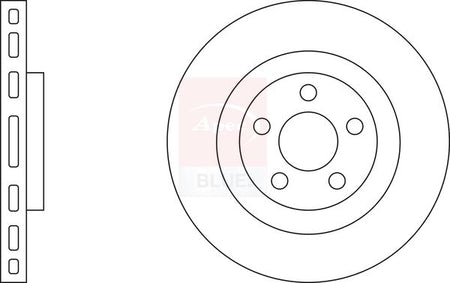

Apec Blue SDK6829 Brake Disc - 1
Apec Blue SDK6829 Brake Disc - 1
APEC BLUE

Apec Blue SDK6829 Brake Disc

SKU: SDK6829
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£45.22 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
GALAXY III (CK)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 160 HP 01/2015 - 06/2018
2.0 EcoBoost 1999 CCM 240 HP 01/2015 - 04/2023
2.0 TDCi 1997 CCM 120 HP 01/2015 - 06/2018
2.0 TDCi 1997 CCM 150 HP 01/2015 - 06/2018
2.0 TDCi 1997 CCM 180 HP 01/2015 - 06/2018
2.0 TDCi Bi-Turbo 1997 CCM 210 HP 01/2015 - 06/2018
2.0 TDCi 4x4 1997 CCM 150 HP 05/2015 - 06/2018
2.0 TDCi 4x4 1997 CCM 180 HP 05/2015 - 06/2018
2.0 EcoBlue 1995 CCM 120 HP 07/2018 - 04/2023
2.0 EcoBlue 1995 CCM 150 HP 07/2018 - 04/2023
2.0 EcoBlue 4x4 1995 CCM 150 HP 07/2018 - 04/2023
2.0 EcoBlue 1995 CCM 190 HP 07/2018 - 04/2023
2.0 EcoBlue 4x4 1995 CCM 190 HP 07/2018 - 04/2023
2.0 EcoBlue Bi-Turbo 1995 CCM 240 HP 07/2018 - 04/2023
GALAXY MK III VAN (CK)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 150 HP 03/2019 - 04/2023
2.0 EcoBlue AWD 1995 CCM 190 HP 03/2019 - 04/2023
S-MAX (CJ, WA6)
Description Cylinder Capacity Horse Power Year
2.0 EcoBoost 1999 CCM 240 HP 01/2015 - 04/2023
2.0 TDCi 1997 CCM 120 HP 01/2015 - 06/2018
2.0 TDCi 1997 CCM 150 HP 01/2015 - 06/2018
2.0 TDCi 4x4 1997 CCM 150 HP 01/2015 - 06/2018
2.0 TDCi 1997 CCM 180 HP 01/2015 - 06/2018
2.0 TDCi 4x4 1997 CCM 180 HP 01/2015 - 06/2018
2.0 TDCi BI-Turbo 1997 CCM 210 HP 01/2015 - 06/2018
2.0 EcoBlue 1995 CCM 190 HP 07/2018 - 04/2023
2.0 EcoBlue 4x4 1995 CCM 190 HP 07/2018 - 04/2023
2.0 EcoBlue 1995 CCM 120 HP 07/2018 - 04/2023
2.0 EcoBlue 1995 CCM 150 HP 07/2018 - 04/2023
2.0 EcoBlue 4x4 1995 CCM 150 HP 07/2018 - 04/2023
FORD USA
EDGE
Description Cylinder Capacity Horse Power Year
2.0 TDCi AWD 1997 CCM 180 HP 08/2015 - 07/2018
2.0 TDCi Bi-Turbo AWD 1997 CCM 210 HP 08/2015 - 07/2018
2.0 EcoBlue AWD 1995 CCM 190 HP From 08/2018
2.0 EcoBlue 1995 CCM 150 HP From 08/2018

The Apec Blue SDK6829 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 316 mm outer diameter, 32 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 316
Brake Disc Thickness [mm] : 32
Height [mm] : 52
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 5
Test Mark : 90R-02C0349/0638
  • Vendor APEC BLUE
  • SKU SDK6829
  • Barcode 5028906138387
  • FORD : 2019816 2467599 5312312 5424014 E1GC1125EC
  • APEC : DSK3178
  • APEC : SDK6829
  • BLUE PRINT : ADF124374
  • BORG & BECK : BBD6124S
  • BOSCH : 0 986 479 D48
  • Fahren : FBD6829
  • FEBI BILSTEIN : 107716
  • HELLA : 8DD 355 126-701
  • MEYLE : 715 521 0045/PD
  • MINTEX : MDC2820C
  • NAPA : NBD5669
  • National : NBD1920
  • SKF : VKBD 81333 V1
  • TEXTAR : 92293605
  • VALEO : 673315
