Apec Blue SDK6865 Brake Disc - 1
Apec Blue SDK6865 Brake Disc - 1
APEC BLUE

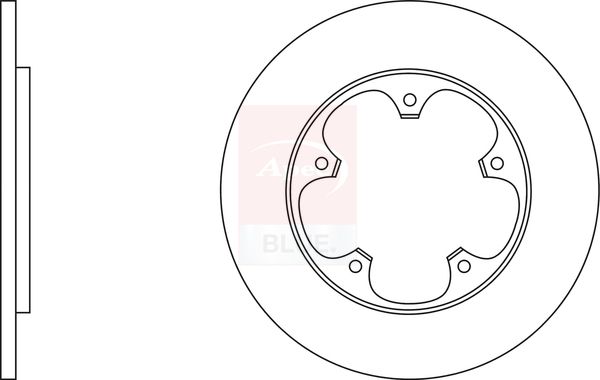

Apec Blue SDK6865 Brake Disc

SKU: SDK6865
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£30.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.2 TDCi All-wheel Drive 2198 CCM 155 HP 08/2015 - 12/2018
2.0 EcoBlue RWD 1995 CCM 130 HP From 05/2019
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2015 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue 4x4 1995 CCM 130 HP From 01/2017

The Apec Blue SDK6865 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 308 mm outer diameter, 16 mm brake disc thickness, and 12 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 308
Brake Disc Thickness [mm] : 16
Height [mm] : 26
Bolt Hole Circle Ø [mm] : 150
Wheel Bolt Bore Diameter [mm] : 12
Centering Diameter [mm] : 123
Number of Holes : 5
  • Vendor APEC BLUE
  • SKU SDK6865
  • Barcode 5028906138745
  • FORD : 1815599 2226519 BK312A315AB
  • APEC : DSK3334
  • APEC : SDK6865
  • BLUE PRINT : ADF124354
  • BORG & BECK : BBD4725
  • BORG & BECK : BBD5364
  • BOSCH : 0 986 479 F44
  • BOSCH : 0 986 479 H56
  • BOSCH : 0 986 479 J36
  • Fahren : FBD6865
  • FEBI BILSTEIN : 105712
  • HELLA : 8DD 355 122-781
  • MEYLE : 715 523 0029/PD
  • MINTEX : MDC2694
  • NAPA : NBD5697
  • National : NBD1847
  • SKF : VKBD 90460 S2
  • TEXTAR : 92274103
