Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

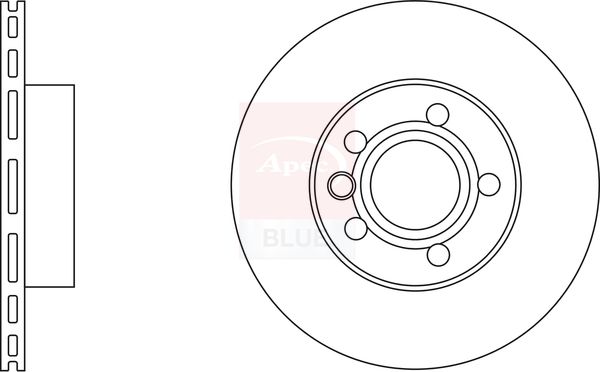

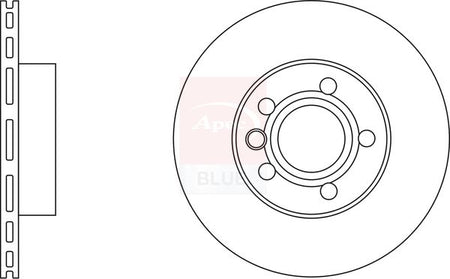

Apec Blue SDK6904 Brake Disc - 1
Apec Blue SDK6904 Brake Disc - 1
APEC BLUE

Apec Blue SDK6904 Brake Disc

SKU: SDK6904
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£26.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
CALIFORNIA T4 Camper (7DJ, 7DK, 70J)
Description Cylinder Capacity Horse Power Year
2.5 2461 CCM 110 HP 05/1998 - 04/2002
2.4 D 2370 CCM 75 HP 05/1998 - 04/2002
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 2461 CCM 110 HP 11/1990 - 04/2003
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 05/1998 - 04/2003
2.8 2792 CCM 140 HP 05/1996 - 05/2000
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.5 2461 CCM 110 HP 11/1990 - 04/2003
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 07/1990 - 04/1998
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI 2461 CCM 88 HP 12/1998 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 Syncro 2461 CCM 110 HP 08/1992 - 04/2003
2.5 2461 CCM 110 HP 09/1990 - 06/2003
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 01/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 07/1996 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.8 VR 6 2792 CCM 140 HP 11/1995 - 04/2000
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003

The Apec Blue SDK6904 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 280 mm outer diameter, 24 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 24
Height [mm] : 55
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0349/0726
  • Vendor APEC BLUE
  • SKU SDK6904
  • Barcode 5028906139131
  • VW : 701615301F 7D0615301A 7D0615301C
  • APEC : DSK779
  • APEC : SDK6904
  • BLUE PRINT : ADV184361
  • BORG & BECK : BBD4135
  • BORG & BECK : BBD5839S
  • BOSCH : 0 986 478 846
  • BOSCH : 0 986 479 B50
  • Fahren : FBD6904
  • FEBI BILSTEIN : 14040
  • HELLA : 8DD 355 105-591
  • MEYLE : 115 521 0035
  • MEYLE : 115 521 0035/PD
  • MINTEX : MDC1047
  • NAPA : NBD5286
  • National : NBD933
  • SKF : VKBD 80358 V2
  • TEXTAR : 92083805
