APEC BLUE

Apec Blue SDK6936 Brake Disc

SKU: SDK6936

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£44.11 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

A-CLASS (W176)

Description	Cylinder Capacity	Horse Power	Year
A 250 (176.044)	1991 CCM	211 HP	06/2012 - 05/2018
A 220 CDI (176.003)	2143 CCM	170 HP	09/2012 - 05/2018
A 250 4-matic (176.046)	1991 CCM	211 HP	06/2013 - 05/2018
A 220 CDI 4-matic (176.005)	2143 CCM	170 HP	02/2014 - 05/2018
A 220 CDI (176.003)	2143 CCM	163 HP	01/2014 - 05/2018
A 220 4-matic (176.047)	1991 CCM	184 HP	05/2014 - 05/2018

B-CLASS Sports Tourer (W246, W242)

Description	Cylinder Capacity	Horse Power	Year
B 220 4-matic (246.247)	1991 CCM	184 HP	05/2013 - 12/2018
B 250 (246.244)	1991 CCM	211 HP	05/2012 - 12/2018
B 220 CDI / d (246.203)	2143 CCM	170 HP	11/2011 - 12/2018
B 250 4-matic (246.246)	1991 CCM	211 HP	08/2014 - 12/2018
B 200 CDI / d 4-matic (246.202)	2143 CCM	136 HP	08/2014 - 12/2018
B 220 CDI / d (246.203)	2143 CCM	177 HP	08/2014 - 12/2018
B 220 CDI / d 4-matic (246.205)	2143 CCM	177 HP	08/2014 - 12/2018

CLA Coupe (C117)

Description	Cylinder Capacity	Horse Power	Year
CLA 250 4-matic (117.346)	1991 CCM	211 HP	07/2013 - 03/2019
CLA 220 CDI / d (117.303)	2143 CCM	170 HP	01/2013 - 03/2019
CLA 220 CDI / d (117.303)	2143 CCM	163 HP	01/2013 - 03/2019
CLA 220 CDI 4-matic (117.305)	2143 CCM	170 HP	07/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305)	2143 CCM	163 HP	08/2014 - 03/2019
CLA 220 CDI / d (117.303)	2143 CCM	177 HP	09/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305)	2143 CCM	177 HP	09/2014 - 03/2019

CLA Shooting Brake (X117)

Description	Cylinder Capacity	Horse Power	Year
CLA 250 (117.944)	1991 CCM	211 HP	01/2015 - 03/2019
CLA 250 4-matic (117.946)	1991 CCM	211 HP	01/2015 - 03/2019
CLA 220 CDI / d (117.903)	2143 CCM	177 HP	01/2015 - 03/2019
CLA 220 CDI / d 4-matic (117.905)	2143 CCM	177 HP	01/2015 - 03/2019
CLA 220 CDI / d (117.903)	2143 CCM	163 HP	01/2015 - 03/2019
CLA 250 4-matic (117.951)	1991 CCM	218 HP	07/2015 - 03/2019
CLA 220 4-matic (117.947)	1991 CCM	184 HP	04/2016 - 03/2019
CLA 220 d (117.903)	2143 CCM	170 HP	07/2018 - 03/2019

GLA-CLASS (X156)

Description	Cylinder Capacity	Horse Power	Year
GLA 220 CDI (156.903)	2143 CCM	170 HP	12/2013 - 05/2019
GLA 220 CDI / d (156.903)	2143 CCM	163 HP	12/2013 - 05/2019
GLA 220 CDI 4-matic (156.905)	2143 CCM	170 HP	12/2013 - 12/2019
GLA 220 CDI / d 4-matic (156.905)	2143 CCM	163 HP	12/2013 - 12/2019
GLA 250 (156.944)	1991 CCM	211 HP	12/2013 - 12/2019
GLA 250 4-matic (156.946)	1991 CCM	211 HP	12/2013 - 12/2019
GLA 220 d (156.903)	2143 CCM	177 HP	07/2015 - 05/2019
GLA 220 d 4-matic (156.905)	2143 CCM	177 HP	07/2015 - 12/2019

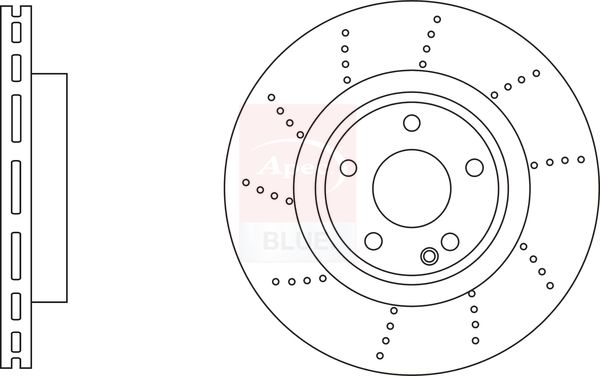

The Apec Blue SDK6936 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 320 mm outer diameter, 30 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : perforated/vented

Outer Diameter [mm] : 320

Brake Disc Thickness [mm] : 30

Height [mm] : 51

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 67

Number of Holes : 5

Test Mark : 90R-02C0727/1418

APEC : DSK3280
APEC : SDK6936
BLUE PRINT : ADU174395
BORG & BECK : BBD4722
BORG & BECK : BBD5355
BOSCH : 0 986 479 A60
Fahren : FBD6936
FEBI BILSTEIN : 107501
HELLA : 8DD 355 120-351
MEYLE : 083 521 0021/PD
MINTEX : MDC2569
NAPA : NBD5488
National : NBD2074
SKF : VKBD 81120 V1
TEXTAR : 92262105

Apec Blue SDK6936 Brake Disc
