Apec Blue SDK6940 Brake Disc

SKU: SDK6940
Your selected vehicle
Out of stock
Out of Stock
£37.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.5 AWD 2488 CCM 194 HP From 05/2017
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018

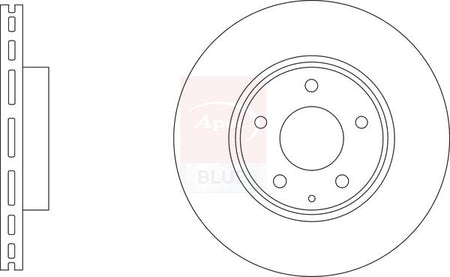

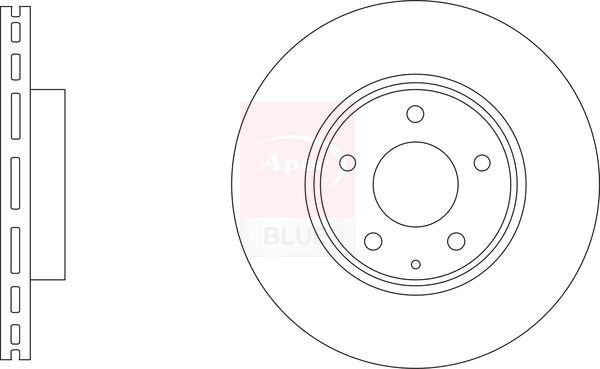

The Apec Blue SDK6940 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 297 mm outer diameter, 28 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 297
Brake Disc Thickness [mm] : 28
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0411/0943
  • Vendor APEC BLUE
  • SKU SDK6940
  • Barcode 5028906148164
  • MAZDA : GHR1-33-251A K011-33-251A K011-33-251B KD4533251
  • APEC : DSK3365
  • APEC : SDK6940
  • BLUE PRINT : ADM543123
  • BORG & BECK : BBD5302
  • BORG & BECK : BBD5519
  • BOSCH : 0 986 479 B15
  • FEBI BILSTEIN : 108417
  • HELLA : 8DD 355 126-981
  • MEYLE : 35-83 521 0044/PD
  • MINTEX : MDC2837C
  • NAPA : NBD5556
  • National : NBD1977
  • SKF : VKBD 81352 V1
  • TEXTAR : 92295003
  • VALEO : 673072
