Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Apec Blue SDK7231 Brake Disc - 1
Apec Blue SDK7231 Brake Disc - 1
APEC BLUE

Apec Blue SDK7231 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: SDK7231

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£46.17 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
GRANVIA (_H2_, _H1_)
Description Cylinder Capacity Horse Power Year
2.7 (RCH11W_, RCH11W) 2694 CCM 145 HP 08/1995 - 09/1998
3.0 TD (KCH10) 2982 CCM 140 HP 08/1995 - 12/2002
HIACE IV Van (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 (RZH103, RZH113) 2438 CCM 116 HP 08/1989 - 07/1998
HIACE IV Bus (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.4 D (LXH12, LXH22) 2446 CCM 79 HP 08/1995 - 08/2001
2.4 TD (LXH12, LXH22) 2446 CCM 90 HP 08/1995 - 08/2001
2.4 (RCH12, RCH22) 2438 CCM 115 HP 08/1995 - 04/1998
2.7 (RCH13, RCH23) 2694 CCM 143 HP 04/1998 - 11/2001
2.4 TD 4WD (LXH18, LXH28) 2446 CCM 90 HP 08/1995 - 08/2001
2.4 D (LXH12) 2446 CCM 75 HP 08/1995 - 08/2001
2.5 D-4D (KLH12) 2494 CCM 88 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 102 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 08/2006 - 12/2012
HIACE IV Van (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.4 (RCH12, RCH22) 2438 CCM 116 HP 08/1995 - 11/2003
2.4 D (LXH12, LXH22) 2446 CCM 79 HP 08/1995 - 08/2001
2.4 TD (LXH12, LXH22) 2446 CCM 90 HP 08/1995 - 08/2001
2.7 (RCH13, RCH23) 2694 CCM 143 HP 04/1998 - 06/2005
2.4 TD 4WD (LXH18, LXH28) 2446 CCM 90 HP 08/1995 - 08/2001
2.5 D-4D (KLH12, KLH22) 2494 CCM 88 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 102 HP 08/2001 - 08/2006
2.4 D (LXH12, LXH22) 2446 CCM 75 HP 08/1995 - 08/2001
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) 2494 CCM 102 HP From 06/2004
2.5 D-4D 2494 CCM 95 HP From 09/2006
2.5 D-4D (KDH200, KDH202, KDH212, KDH222) 2494 CCM 117 HP From 09/2006
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KDH202) 2494 CCM 102 HP From 09/2006
REGIUS IV MPV (_H1_)
Description Cylinder Capacity Horse Power Year
3.0 TD (KCH40W) 2982 CCM 141 HP 08/1999 - 05/2002
3.0 TD 4WD (KZH106, KZH116, KZH126) 2982 CCM 131 HP 08/1993 - 08/2004
3.0 TD (KZH100, KZH110, KZH120, KCH40G) 2982 CCM 131 HP 08/1993 - 08/2004
2.7 (RCH41) 2694 CCM 143 HP 04/1997 - 12/2002
3.0 TD 4WD (KCH46) 2982 CCM 141 HP 04/1997 - 05/2002

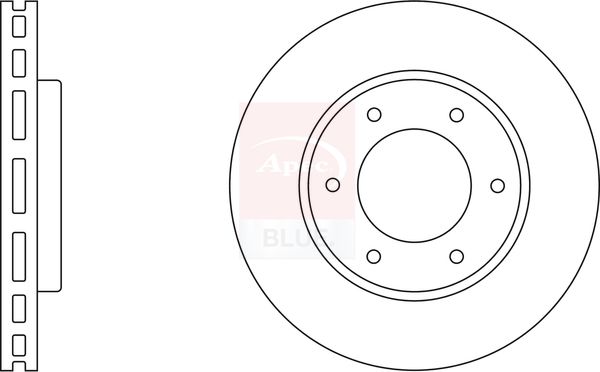

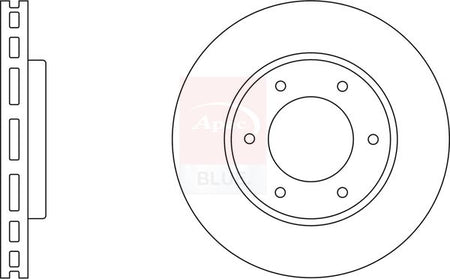

The Apec Blue SDK7231 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 285 mm outer diameter, 28 mm brake disc thickness, and 84 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 285
Brake Disc Thickness [mm] : 28
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 127
Centering Diameter [mm] : 84
Number of Holes : 6
Test Mark : 90R-02C0349/1156
  • Vendor APEC BLUE
  • SKU SDK7231
  • Barcode 5028906249267
  • TOYOTA : 4351226140 4351226160
  • APEC : DSK2049
  • APEC : SDK7231
  • BLUE PRINT : ADT343101
  • BOSCH : 0 986 478 693
  • Fahren : FBD7231
  • FEBI BILSTEIN : 29981
  • MINTEX : MDC1785
  • NAPA : NBD5748
  • National : NBD849
  • TEXTAR : 92113000
