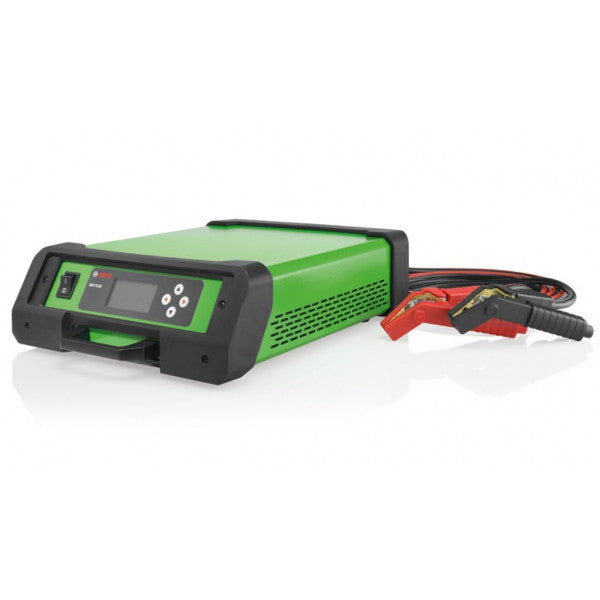

BAT 6120 Battery Support Unit
Your selected vehicle
Regular price
£1,475.69
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The BAT 6120 Battery Support Unit is a battery charging, support or diagnostic product that is designed for the battery voltage and operating mode stated in its product data. Its catalogue specification records BAT 6120 Battery Support Unit enhanced description. Use Bosch reference 0687000044 when cross-checking the part. Confirm the supported battery chemistry, voltage, current range, lead connections and operating instructions before use; provide ventilation and observe battery polarity and eye-protection precautions.
Technical Info
- Dimensions (W x H x D): 329 x 116 x 433 mm
- Protection type (DIN 40050): IP 20 D
- Battery nominal voltage: 12 V
- Main voltage: 220 - 240 V, 50/60 Hz
- Function temperature range: 0 – 40 degree(C)
- Max. 120 A continuous current
- Floating-mode operation: 12.0 V - 13.2 V adjustable, default 13.5 V
- Backup mode: 12.0 V - 13.2 V adjustable, default 12.6 V / 10 A - 30 A adjustable power limit, default 20 A
- Charging characteristic: up to 120 Amperes continuous. Battery types: UNI, WET, EFB, AGM, VRLA/GEL, LFP (LiFePO4)
- Weight (without charging and power cable): 8.5 kg
- Power input :120 - 240 V AC
- Cross-section charging cable: 25 mm sq.
- Length of the charging cable: 3 m (twin cable)
- Max. Charge current intensity 12V: 120 A
Enhanced Description
BAT 6120 Battery Support Unit
Info
- Easy access to BAT 6120 Help Center web page through QR code displayed on the screen
- Easy to use large 4 colour backlight LCD display including wall mount mode
- Fits underneath a car in show room
- Desk, floor or wall operations possible
- Flexible operation modes to fulfill customer needs
- Maximum power output: up to 1750 W
- Interface available in 26 languages
- 12 V Lead Acid Battery Charge. Charging Diagnosis / 12 V Lithium Battery Charge, Wake Up
- Supports Flooded/AGM/EFB/GEL/Lithium (LFP) Batteries
- Supports 120 A DC Continuous Output (AC120 V - 240 V, 25 degree Celcius)
Length
559
Thickness
329
Width
439
Weight
12.579
- Supports 120 A DC Continuous Output (AC120 V - 240 V, 25 degree Celcius)
- Supports Flooded/AGM/EFB/GEL/Lithium (LFP) Batteries
- 12 V Lead Acid Battery Charge. Charging Diagnosis / 12 V Lithium Battery Charge, Wake Up
- Interface available in 26 languages
- Maximum power output: up to 1750 W
- Vendor BOSCH
- SKU 0687000044
