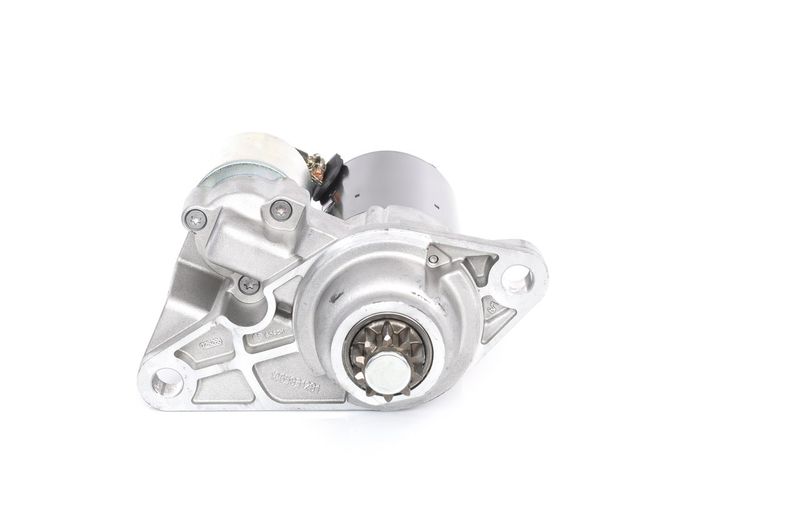

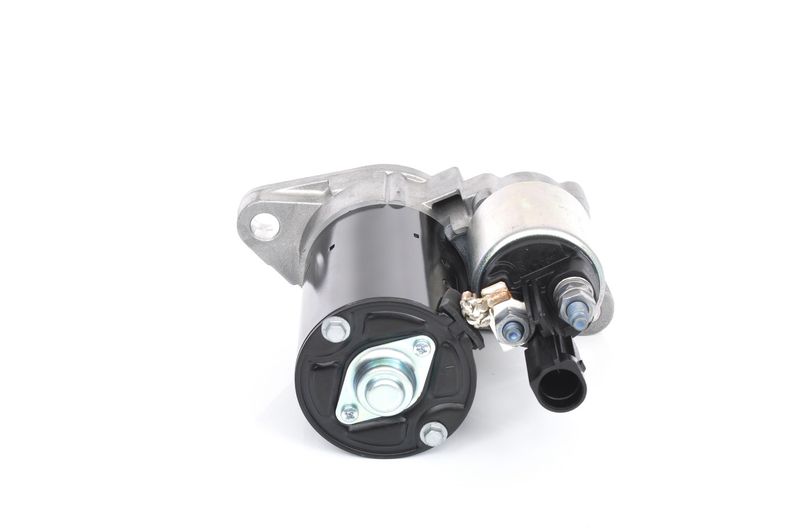

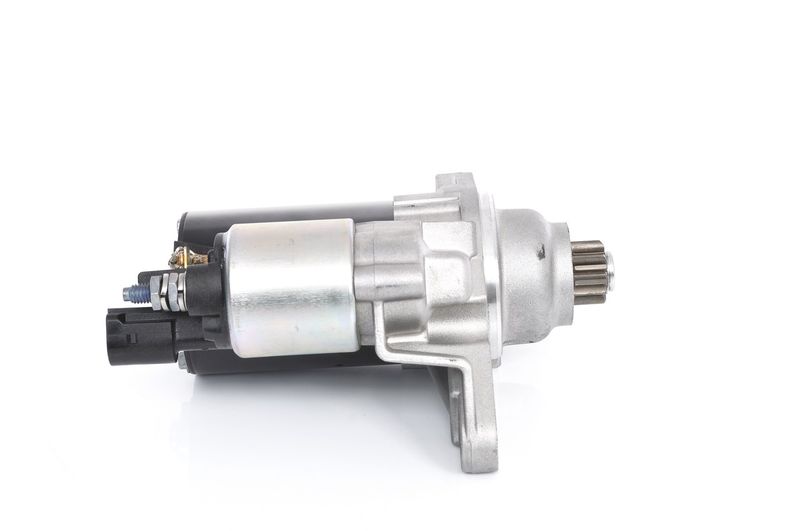

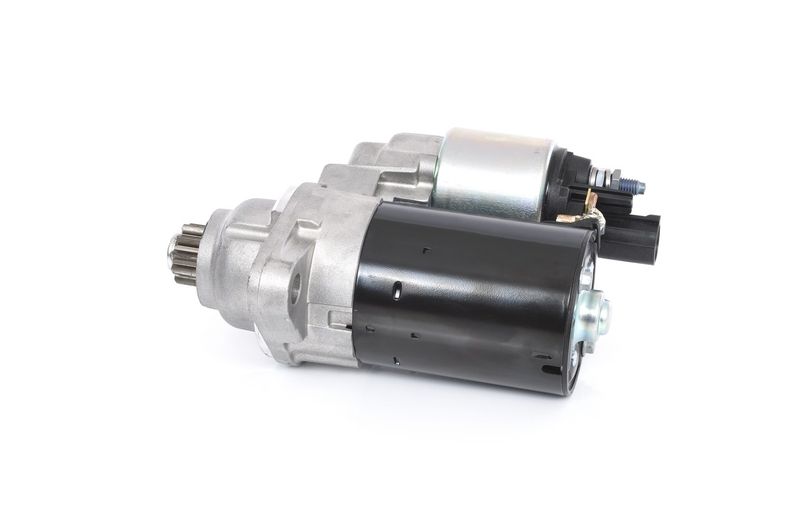

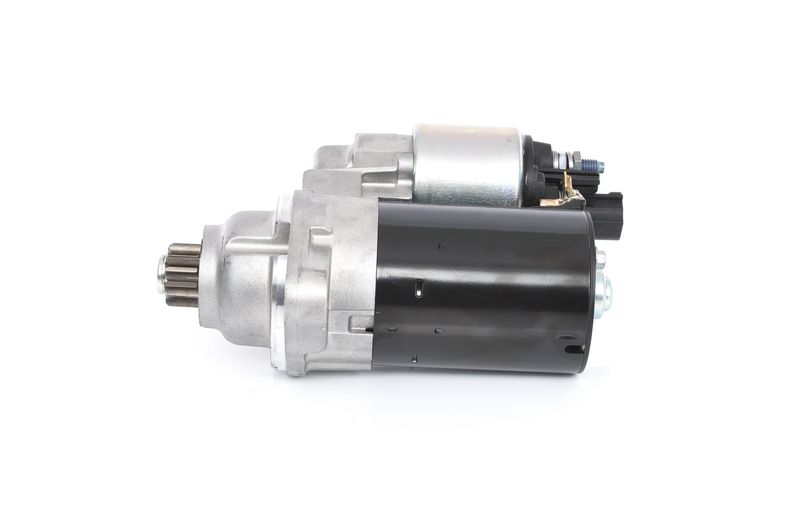

Bosch 0001120406 Starter Motor
Your selected vehicle
Regular price
£225.95
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0001120406 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1 kW rated power, 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
50
Clamp :
30

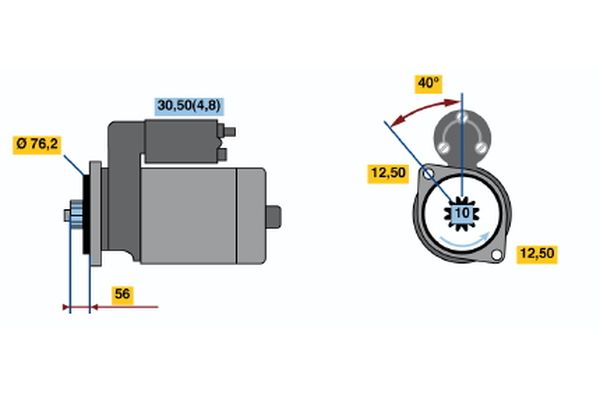

Flange Diameter [mm] :
76.2
Rotation Direction :
Anticlockwise rotation
Pinion Rest Position [mm] :
52.5
Starter Type :
Floating pinion
Bore Diameter [mm] :
12.5
Bore Diameter 2 [mm] :
12.5
Length [mm] :
195
Position/Degree :
links
Mounting Angle [degrees] :
40
Mounting bore angle measurement [degree] :
40
- Vendor BOSCH
- SKU 0001120406
- AUDI : 02T 911 023 R
- SEAT : 02T 911 023 R
- SKODA : 02T 911 023 R
- VW : 02T 911 023 R
- APEC : ASM1029
- BORG & BECK : BST2074
- BOSCH : 0 001 121 433
- BOSCH : 0 986 020 290
- BOSCH : 1 986 S00 895
- Carwood Group : BREF0320001121433
- Carwood Group : BREF0320986020290
- Carwood Group : BREF032114034
- Carwood Group : BREF0321986S00895
- DENSO : DSN3006
- FEBI BILSTEIN : 101624
- HELLA : 8EA 012 527-531
- LUCAS : LRS01675
- NAPA : NSM1029
- VALEO : 438172
- WAI : 32675N
- WAI : S132.364
- BOSCH : RF70-S25 12V (L)
