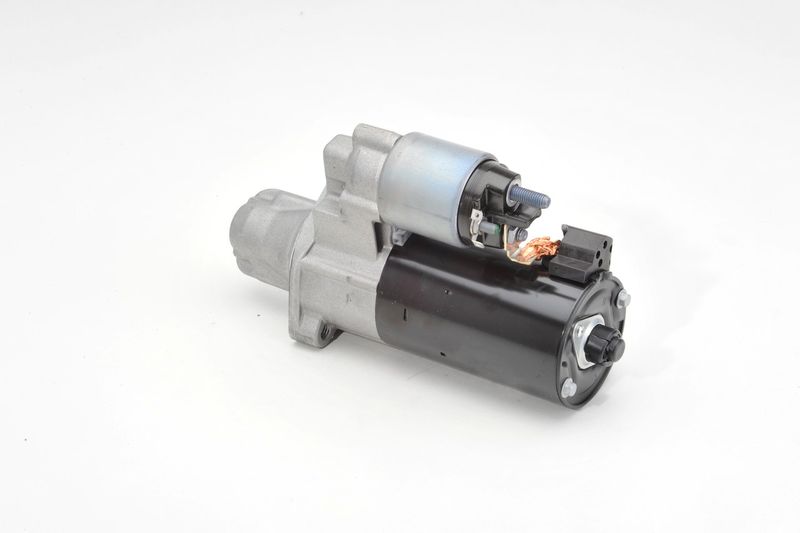

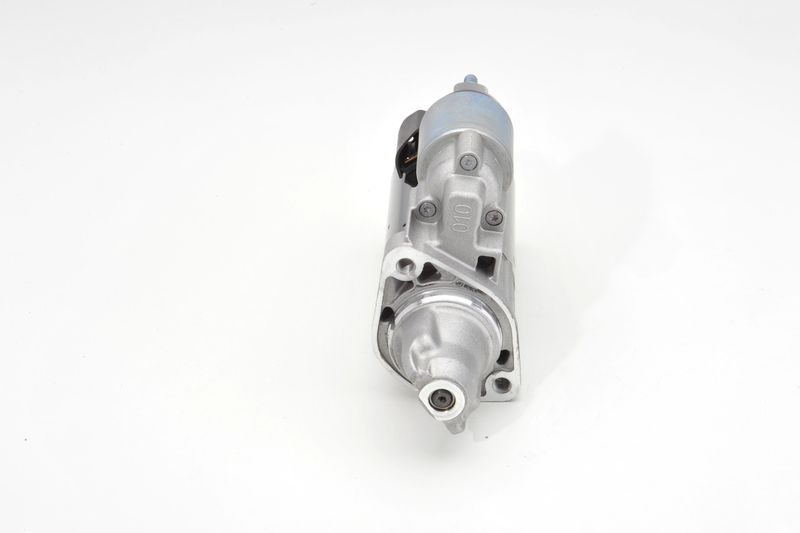

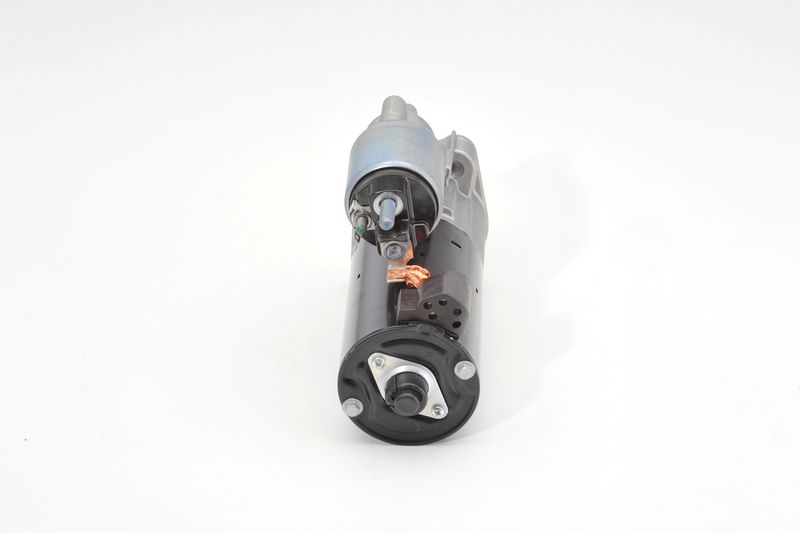

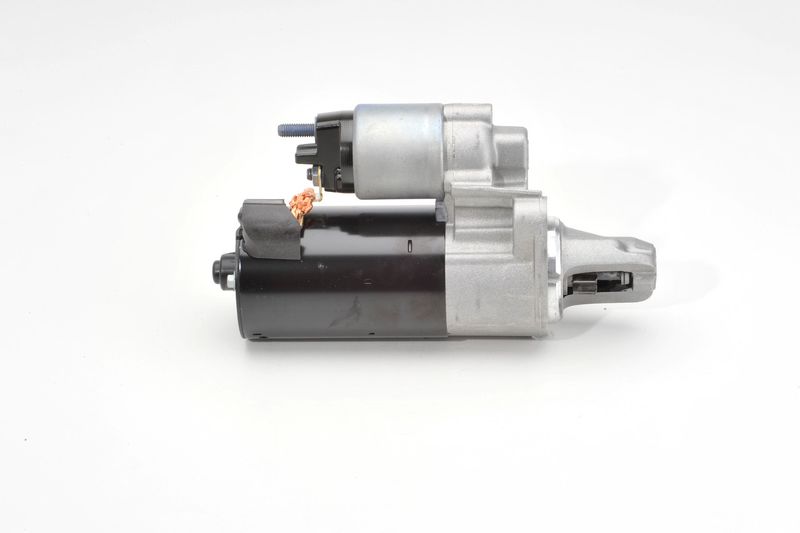

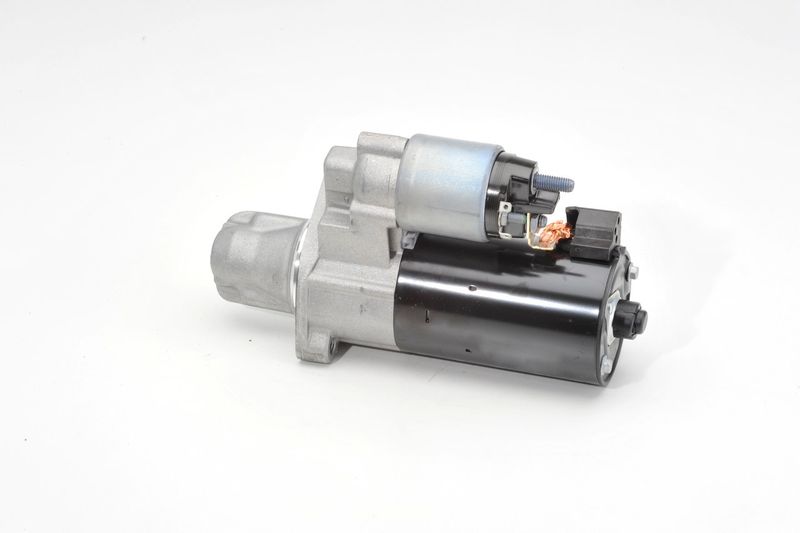

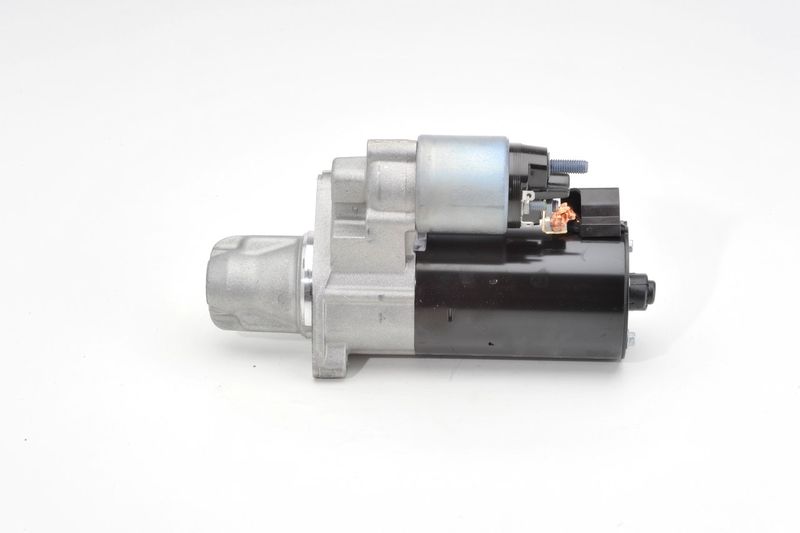

Bosch 0001147404 Starter Motor
Your selected vehicle
Regular price
£285.95
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0001147404 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2
Number of mounting bores :
0
Number of threaded holes :
2
Number of Teeth :
10
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
60
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
27.4
Starter Type :
Self-supporting
Thread Size :
M10
Thread Size 1 :
M10x1.5
Length [mm] :
248
Position/Degree :
links
Mounting Angle [degrees] :
32
Jaw opening angle measurement [Degree] :
135
Mounting bore angle measurement [degree] :
32
- Vendor BOSCH
- SKU 0001147404
- BOSCH : 0 986 023 130
- BOSCH : 1 986 S00 855
- Carwood Group : BREF0320986023130
- Carwood Group : BREF032116002
- Carwood Group : BREF0321986S00855
- HELLA : 8EA 011 613-101
- LUCAS : LRS02565
- VALEO : 438531
- VALEO : 458925
- WAI : 32795N
- BOSCH : SL74-L 12V (R)
