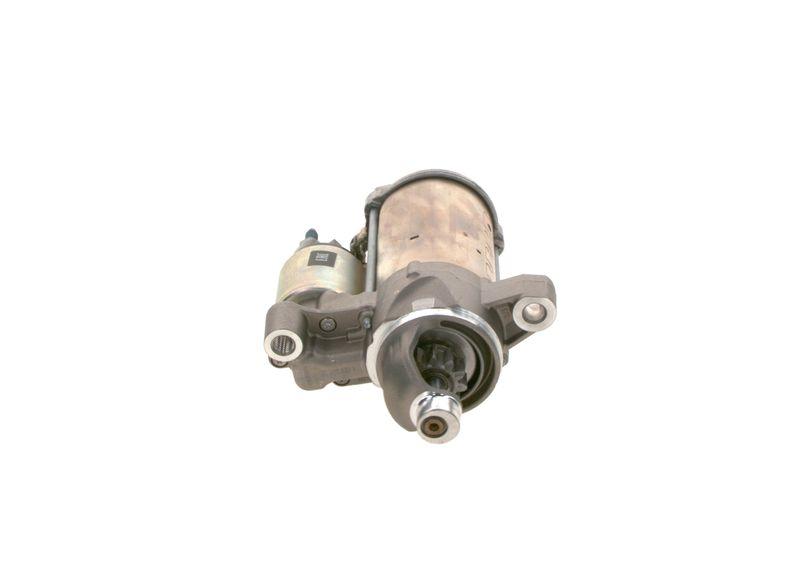

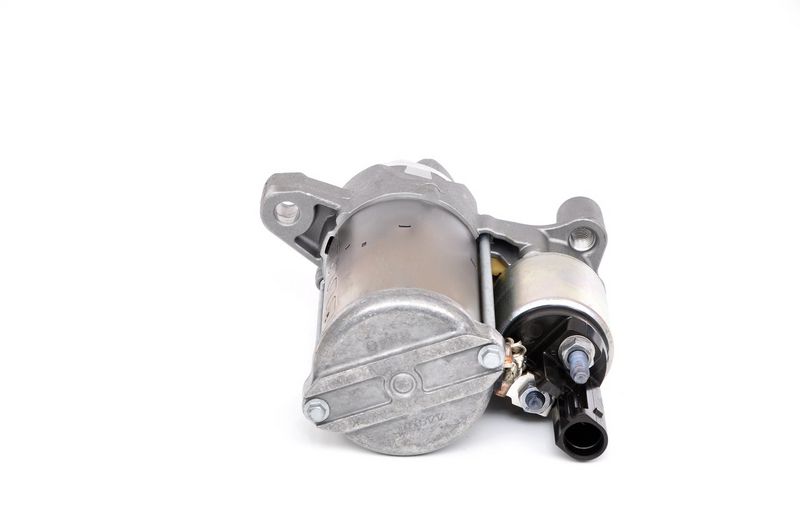

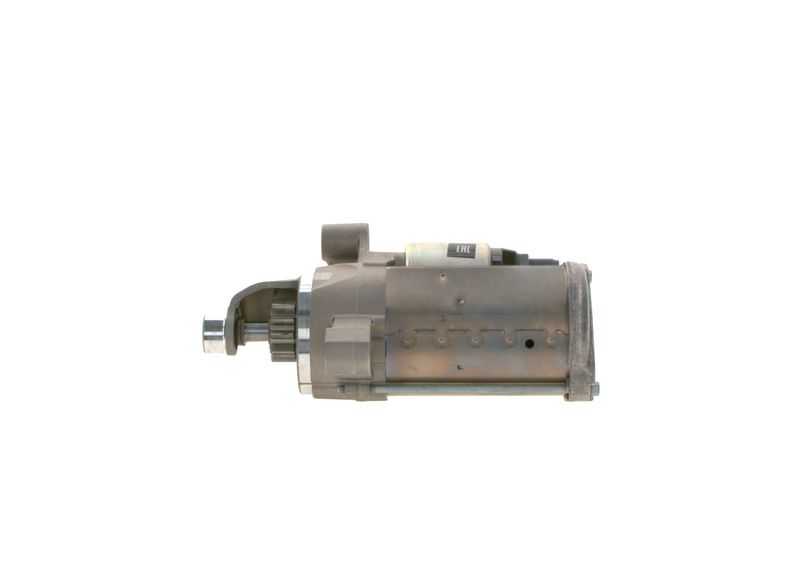

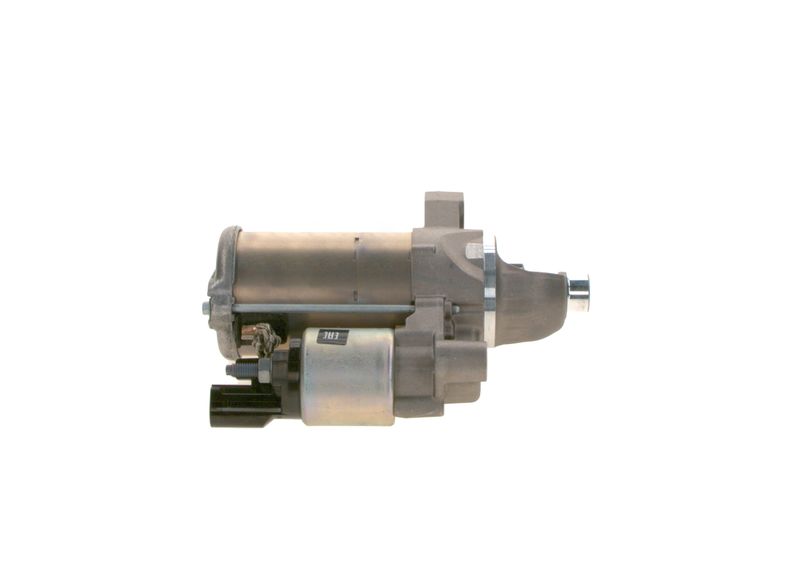

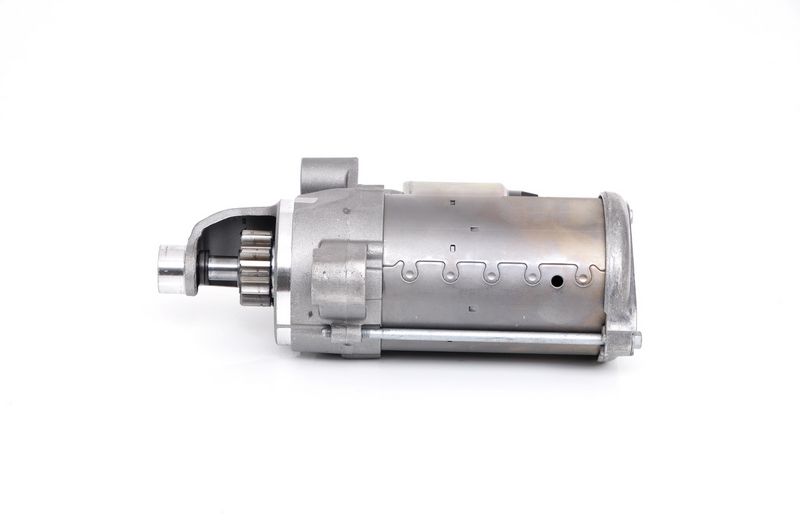

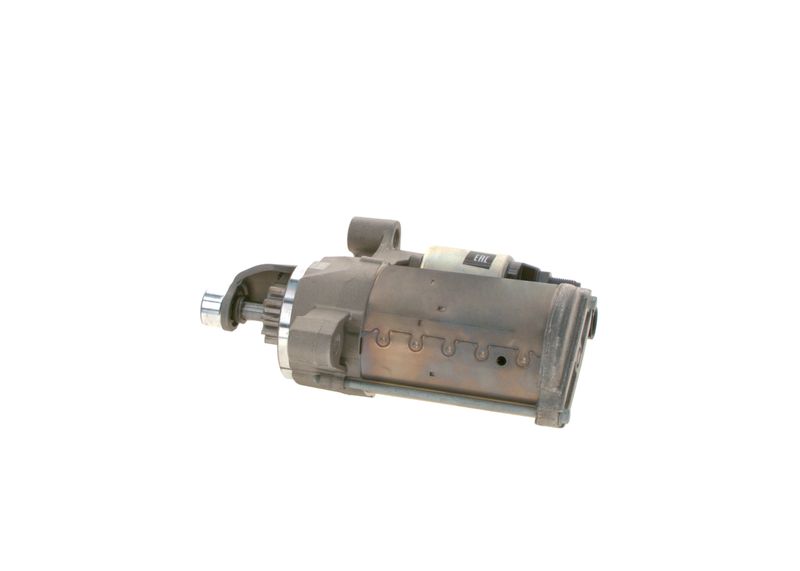

Bosch 0001172402 Starter Motor
Your selected vehicle
Regular price
£210.42
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0001172402 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.4 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.4
Number of mounting bores :
1
Number of threaded holes :
1
Number of Teeth :
11
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
66
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
23
Starter Type :
Self-supporting
Thread Size :
M12
Bore Diameter 2 [mm] :
11
Length [mm] :
211
Position/Degree :
rechts
Mounting Angle [degrees] :
16
Jaw opening angle measurement [Degree] :
110
Mounting bore angle measurement [degree] :
16
- Vendor BOSCH
- SKU 0001172402
- APEC : ASM2054
- BOSCH : 0 986 027 500
- BOSCH : 1 986 S01 341
- Carwood Group : BREF032116872
- Carwood Group : BREF0321986S01341
- DENSO : DSN1437
- LUCAS : LRS04034
- NAPA : NSM2054
- VALEO : 438414
- VALEO : 438553
- VALEO : 445680
- WAI : 16428N
- WAI : S132.134
- BOSCH : SCL70-M 12V (R)
