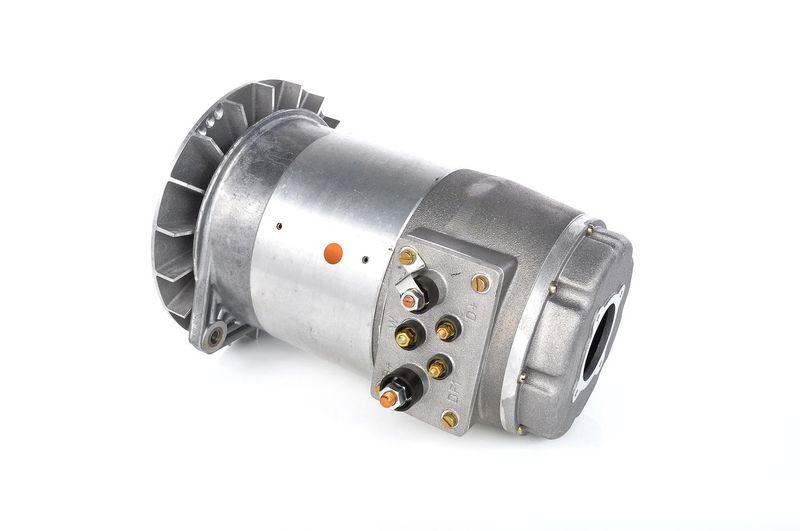

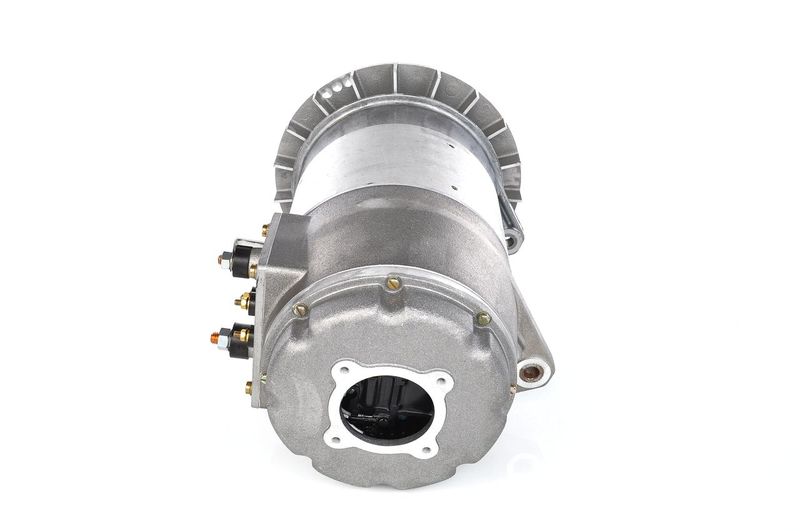

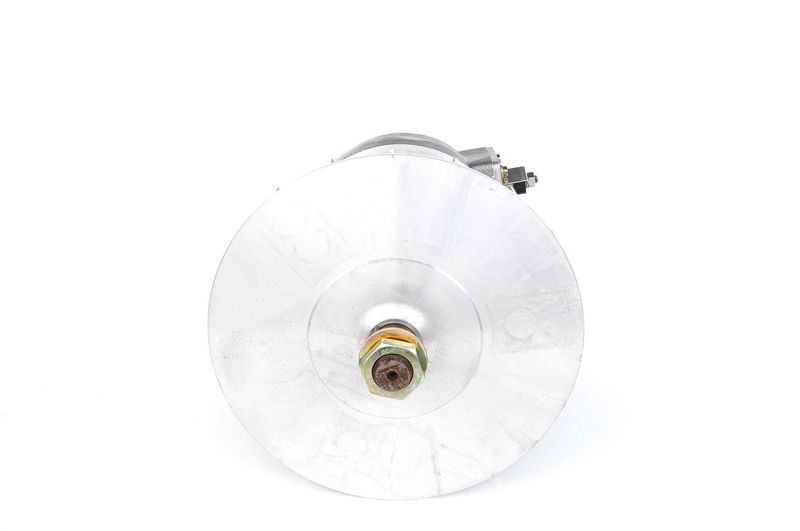

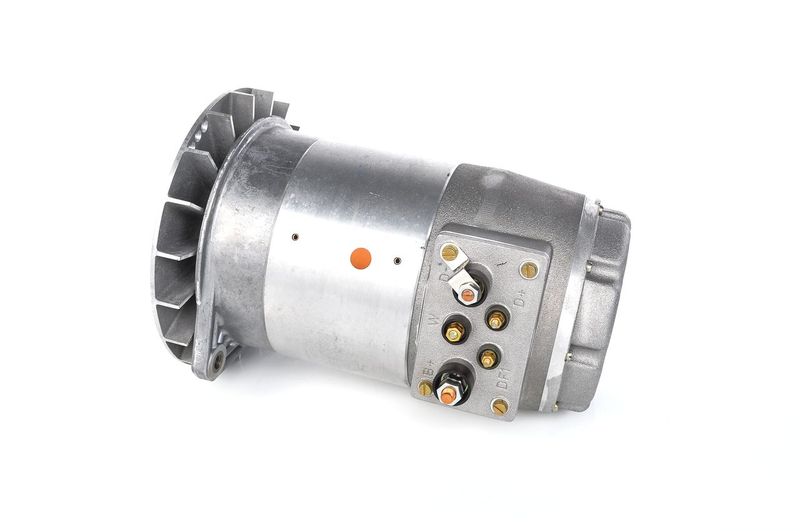

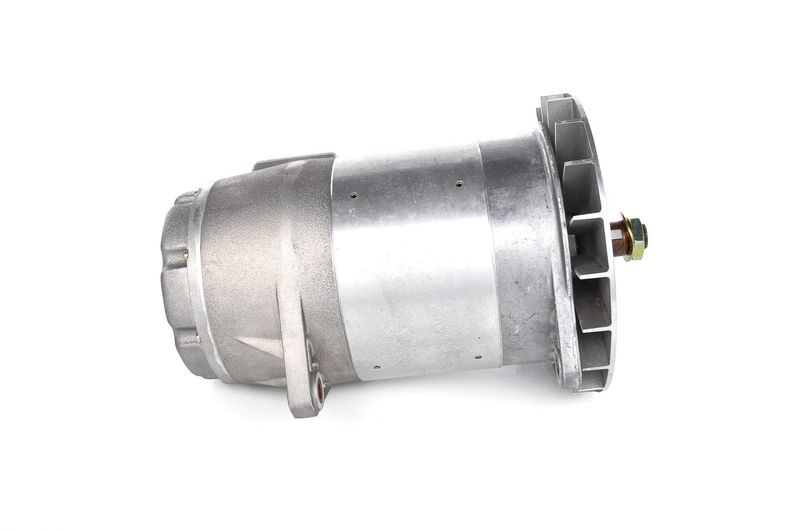

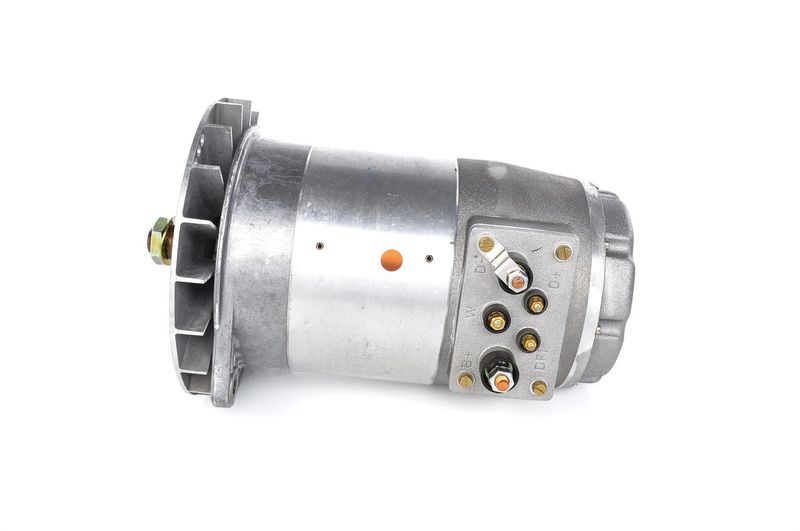

Bosch 0120689600 Alternator
Your selected vehicle
Regular price
£8,106.02
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0120689600 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 28 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 392 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
28
Alternator Charging Current [A] :
180
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Rotation Direction :
Anticlockwise rotation
Rotation Direction :
Clockwise rotation
Pulleys :
without belt pulley
Length [mm] :
392
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0120689600
- MERCEDES-BENZ : A 009 154 25 02 009 154 25 02
- MTU : 0091542502
- BOSCH : T1 (RL) 28V 110/180A
