BOSCH

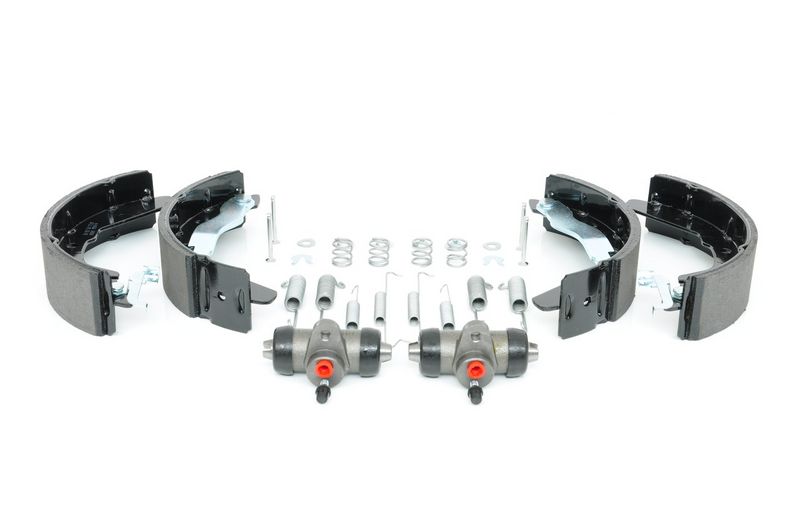

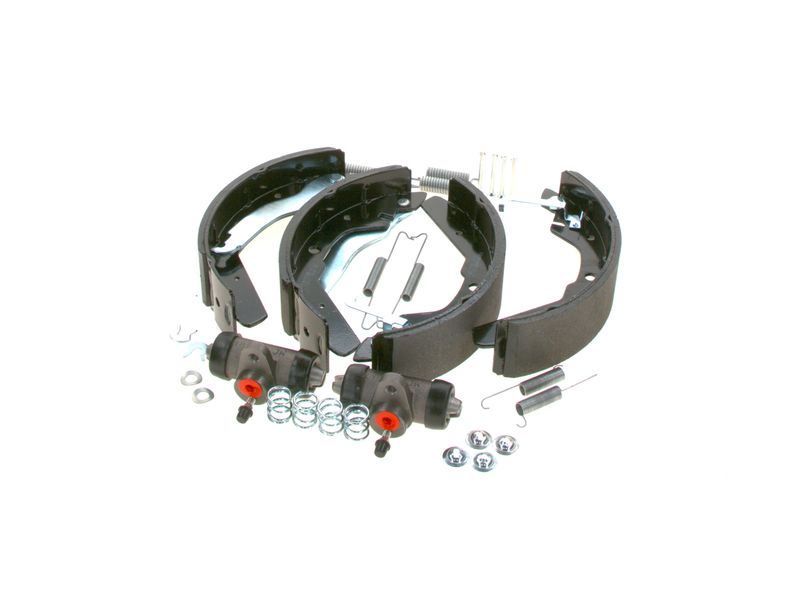

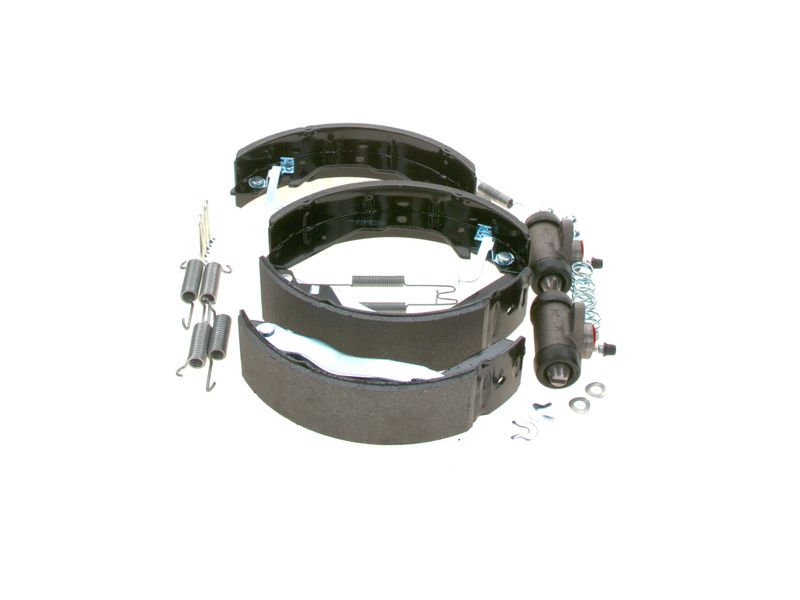

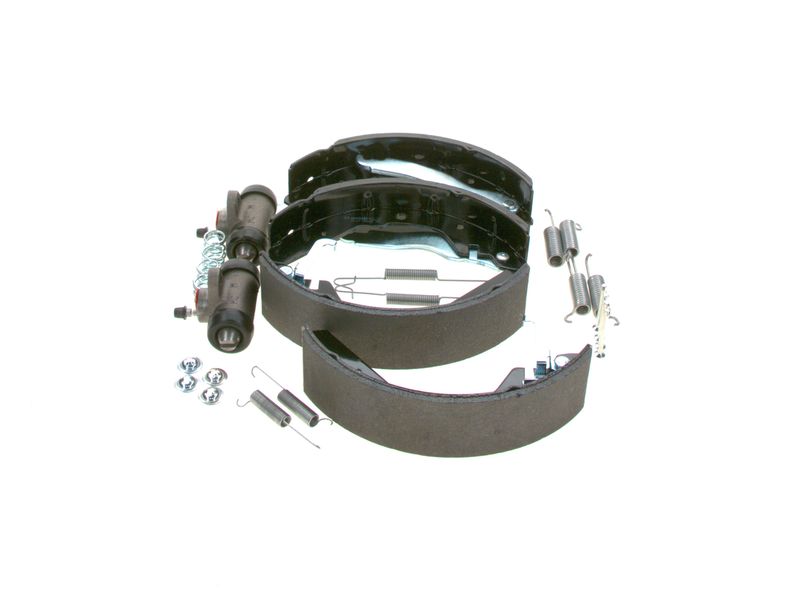

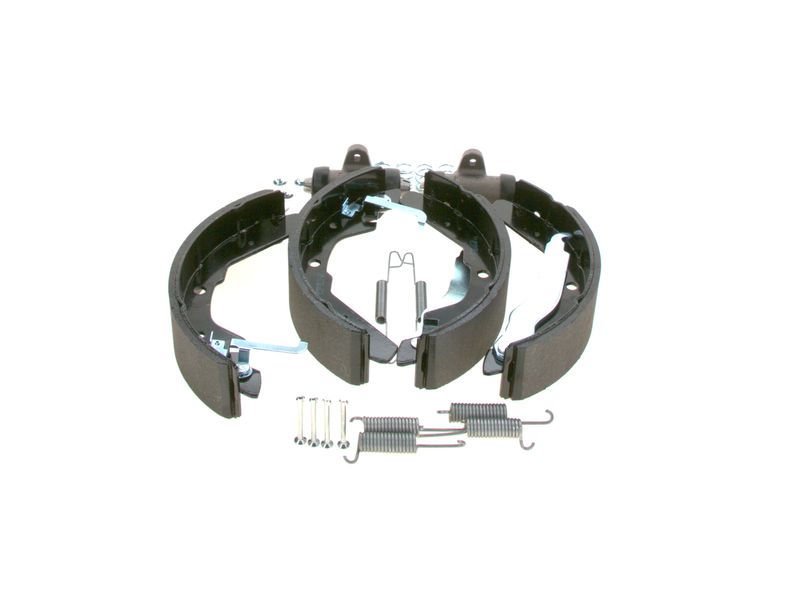

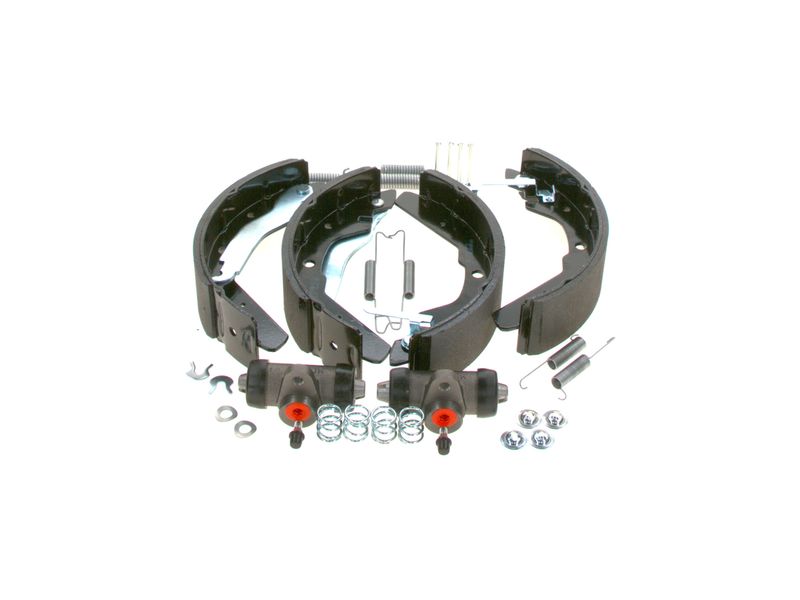

Bosch 0204113596 Brake Shoe Set

5.0/5 65 reviews

SKU: 0204113596

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£99.51 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details

Pay securely with

Need help with fitment? 01472 869 066

TRANSPORTER T3 Platform/Chassis (24_)

Description	Cylinder Capacity	Horse Power	Year
1.6 TD	1588 CCM	70 HP	10/1984 - 07/1992
1.7 D	1715 CCM	57 HP	08/1985 - 07/1992
2.1	2109 CCM	95 HP	08/1985 - 07/1992
1.9 Syncro	1913 CCM	78 HP	12/1984 - 07/1992
2.1 Syncro	2109 CCM	95 HP	08/1985 - 07/1992
2.1 Syncro	2109 CCM	112 HP	03/1986 - 07/1992
1.6 TD Syncro	1588 CCM	69 HP	03/1986 - 07/1992
2.0	1970 CCM	69 HP	05/1979 - 04/1986
1.9	1913 CCM	60 HP	09/1982 - 07/1992
1.9	1913 CCM	78 HP	08/1982 - 07/1992
2.1	2109 CCM	112 HP	03/1986 - 07/1992
2.1 i	2109 CCM	92 HP	07/1989 - 07/1992
1.6 D	1588 CCM	50 HP	01/1981 - 07/1987
1.9	1913 CCM	83 HP	10/1984 - 02/1989

TRANSPORTER T3 Van (24_, 25_)

Description	Cylinder Capacity	Horse Power	Year
2.1	2109 CCM	95 HP	08/1985 - 07/1992
1.9	1913 CCM	60 HP	10/1982 - 07/1992
2.1 Syncro	2109 CCM	95 HP	08/1985 - 07/1992
2.0	1970 CCM	69 HP	05/1979 - 04/1986
1.6	1584 CCM	50 HP	05/1979 - 12/1982
1.9	1913 CCM	78 HP	10/1982 - 07/1992
1.6 TD	1588 CCM	69 HP	10/1984 - 07/1992
1.7 D	1715 CCM	57 HP	08/1984 - 07/1992
1.9 Syncro	1913 CCM	78 HP	11/1984 - 07/1992
2.1 Syncro	2109 CCM	112 HP	03/1986 - 07/1992
1.6 TD Syncro	1588 CCM	69 HP	03/1986 - 07/1992
1.6 D	1588 CCM	50 HP	01/1981 - 07/1987
2.1	2109 CCM	112 HP	03/1986 - 07/1992
2.1 i	2109 CCM	92 HP	07/1989 - 07/1992
1.9	1913 CCM	90 HP	08/1983 - 02/1989

TRANSPORTER / CARAVELLE T3 Bus (25_)

Description	Cylinder Capacity	Horse Power	Year
1.6	1584 CCM	50 HP	05/1979 - 12/1982
1.6 D	1588 CCM	50 HP	01/1981 - 07/1987
1.6 TD	1588 CCM	70 HP	08/1984 - 07/1992
1.9	1913 CCM	60 HP	08/1982 - 07/1992
1.9	1913 CCM	78 HP	08/1982 - 07/1992
1.9	1913 CCM	83 HP	01/1983 - 07/1985
2.0	1970 CCM	70 HP	05/1979 - 12/1982
2.1	2109 CCM	95 HP	08/1985 - 07/1992
2.1	2109 CCM	112 HP	08/1984 - 07/1992
1.7 D	1716 CCM	57 HP	10/1986 - 07/1992
2.1 i	2109 CCM	92 HP	07/1989 - 07/1992
2.1 Cat	2109 CCM	95 HP	06/1989 - 07/1992
1.9	1913 CCM	90 HP	08/1983 - 07/1985
1.9 Syncro	1913 CCM	78 HP	02/1985 - 07/1992
2.1 Syncro	2109 CCM	95 HP	08/1985 - 07/1992

The Bosch 0204113596 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records not pre-mounted mounting type, with wheel brake cylinder and with accessories, 252 mm inner brake drum diameter, and 23.8 mm piston diameter. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : not pre-mounted

Adjustment : without adjustment

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 252

Supplementary Article/Supplementary Info : with accessories

Width [mm] : 56

Brake Lining : with lining

Piston Diameter [mm] : 23.8
