BOSCH

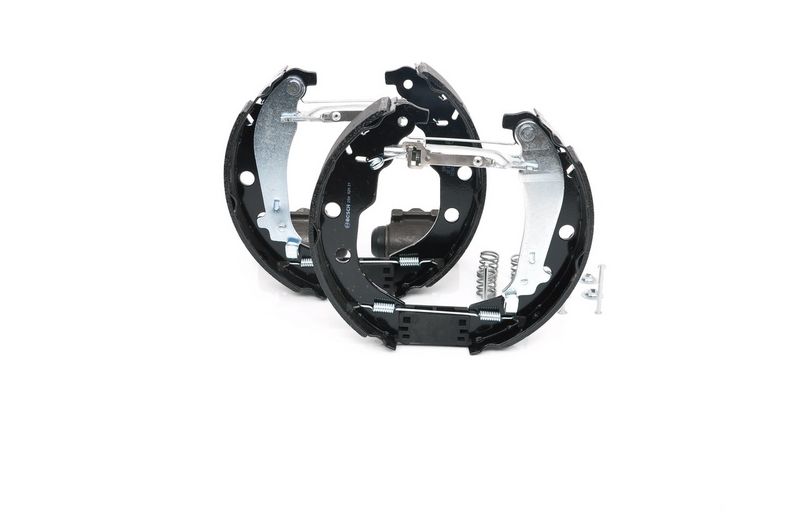

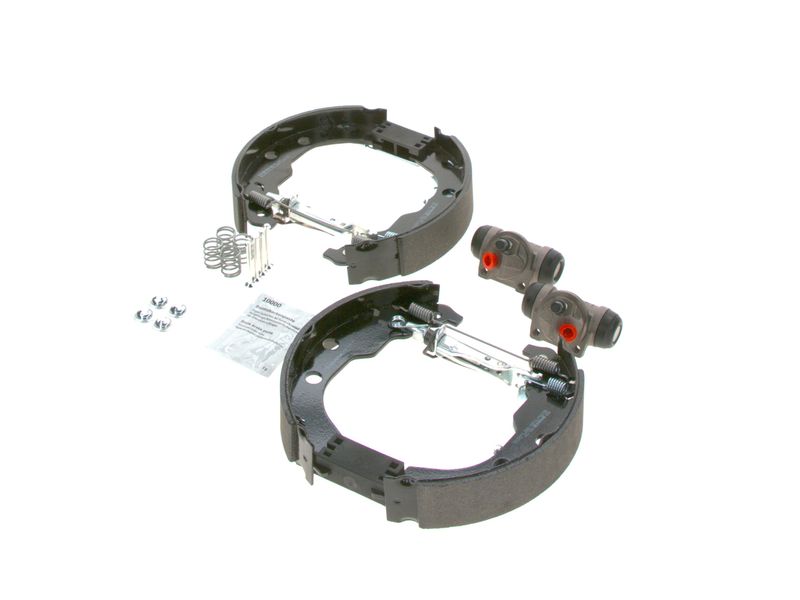

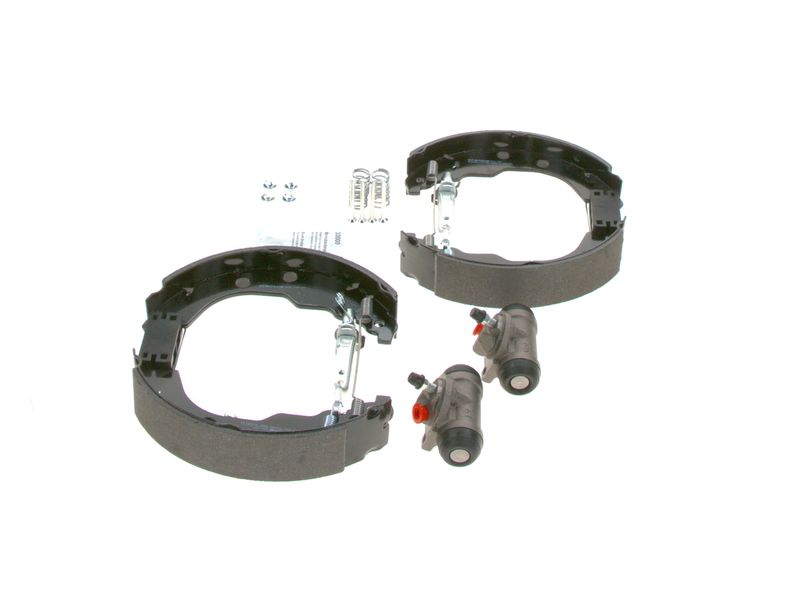

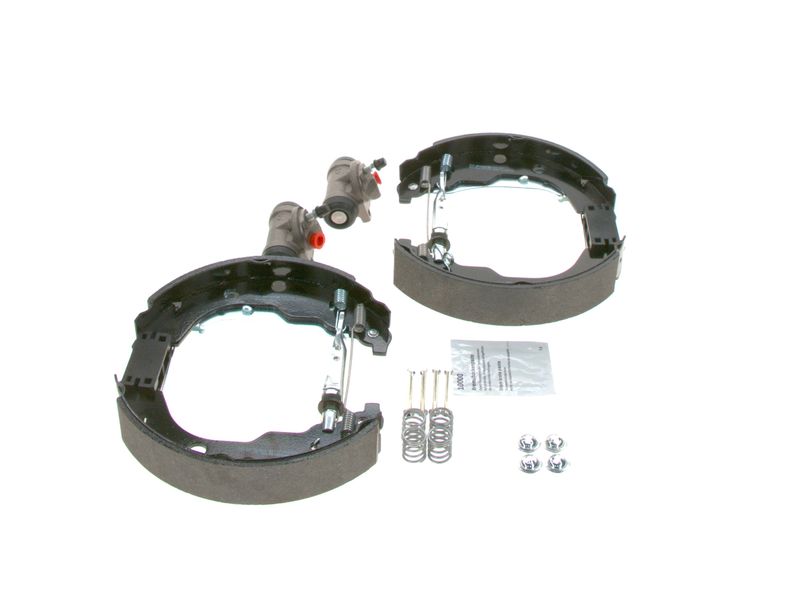

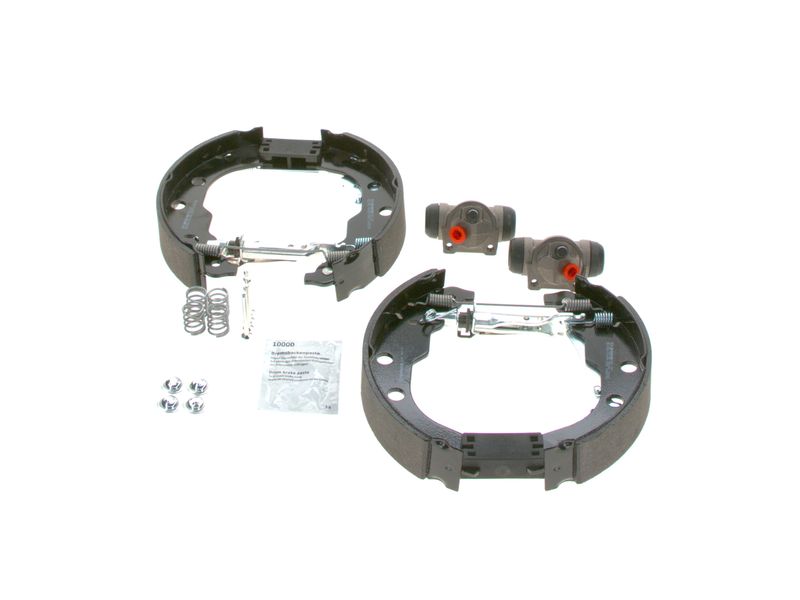

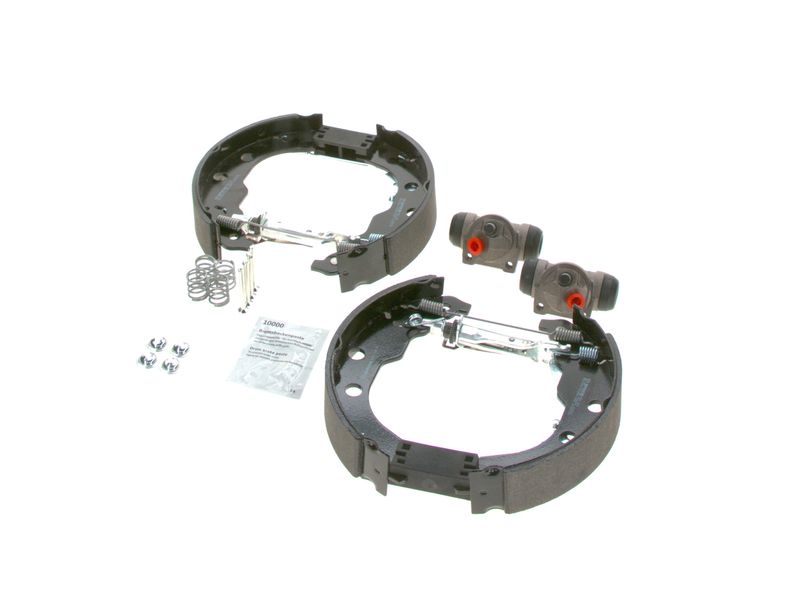

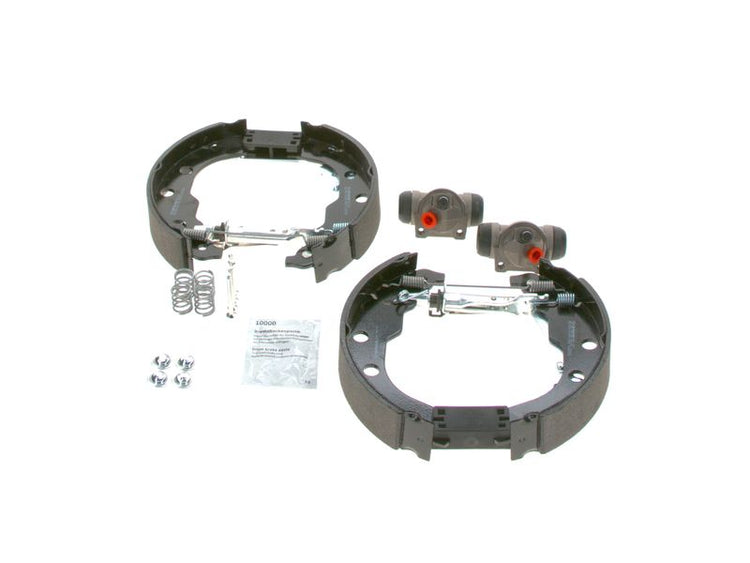

Bosch 0204114122 Brake Shoe Set

SKU: 0204114122

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£85.78 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PEUGEOT

406 (8B)

Description	Cylinder Capacity	Horse Power	Year
1.6	1580 CCM	88 HP	11/1995 - 05/2004
1.8 16V	1761 CCM	110 HP	11/1995 - 10/2000
1.9 TD	1905 CCM	90 HP	01/1996 - 05/2004
1.9 TD	1905 CCM	92 HP	01/1996 - 05/2004
1.8	1761 CCM	90 HP	05/1997 - 05/2004

406 Estate (8E/F)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	75 HP	10/1996 - 10/2004
1.8 16V	1761 CCM	110 HP	10/1996 - 10/2000
1.9 TD	1905 CCM	90 HP	10/1996 - 10/2004
1.8	1761 CCM	90 HP	05/1997 - 10/2004

The Bosch 0204114122 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 228 mm inner brake drum diameter, rear axle fitting position, and for vehicles with brake force regulator braking system. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 228

Width [mm] : 40

Piston Diameter [mm] : 20.64

Fitting Position : Rear Axle

Braking System : for vehicles with brake force regulator

Bosch 0204114122 Brake Shoe Set
