BOSCH

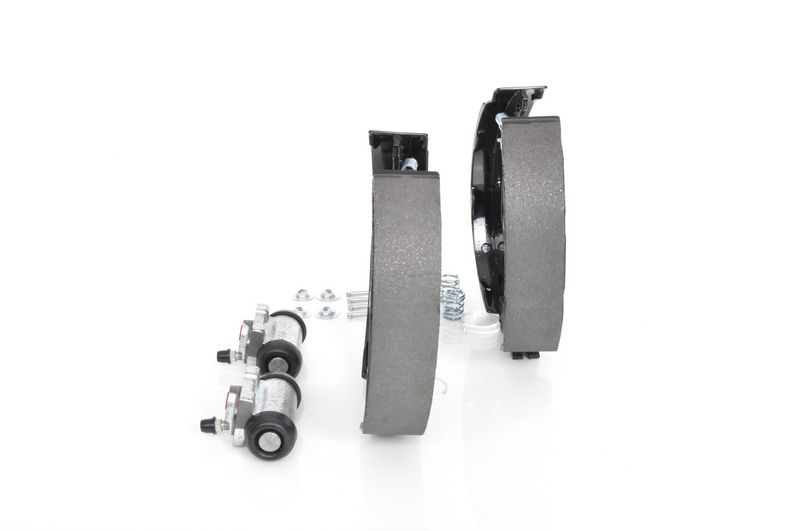

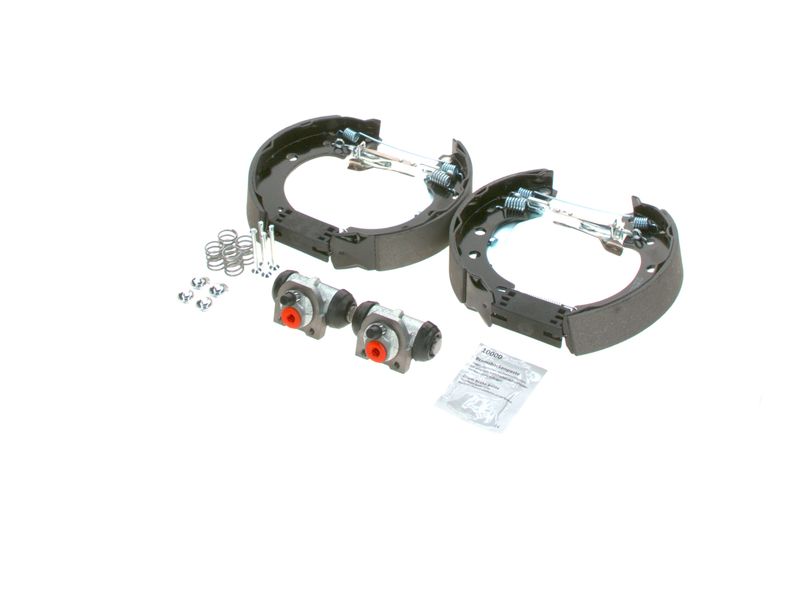

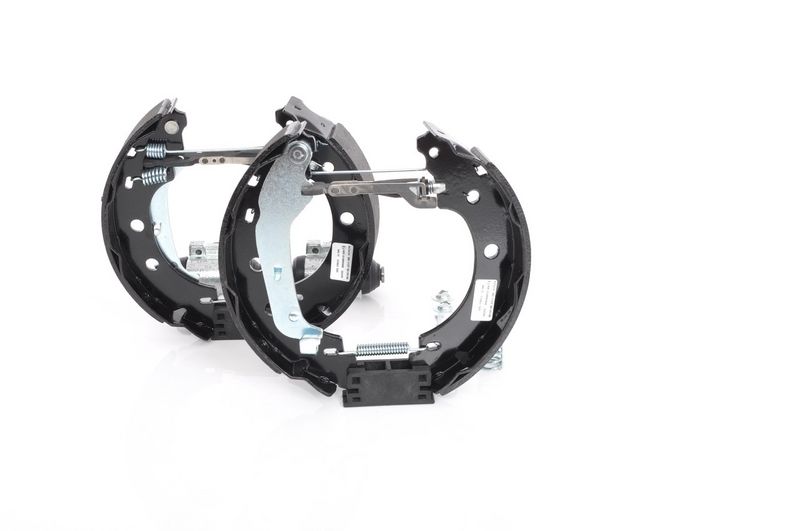

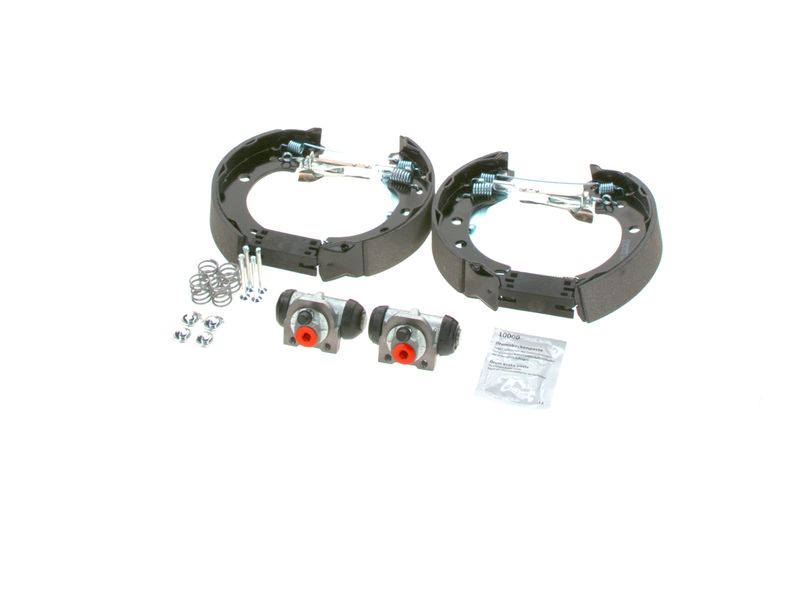

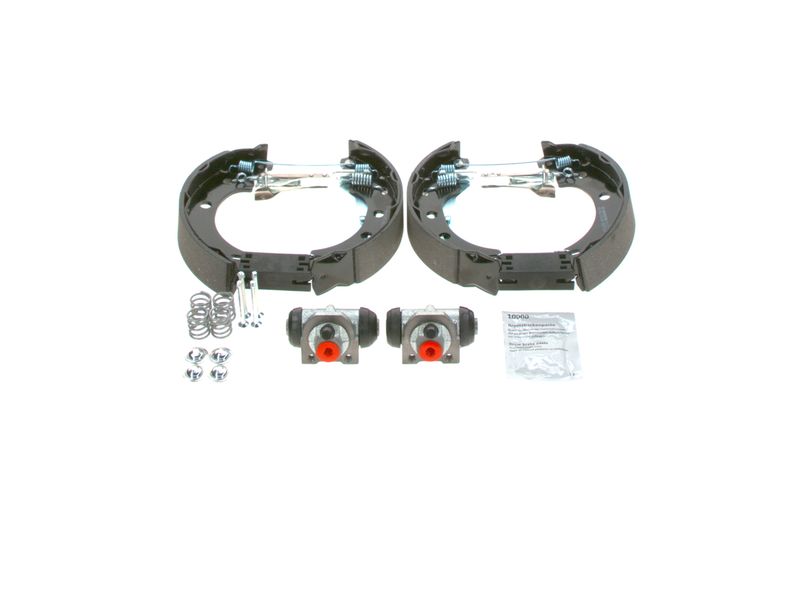

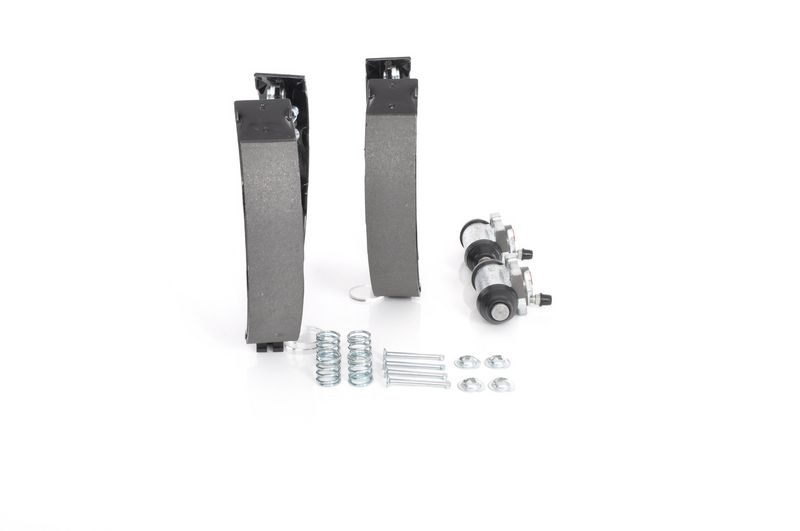

Bosch 0204114156 Brake Shoe Set

SKU: 0204114156

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£77.20 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN

KUBISTAR Van (X76)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi	1461 CCM	61 HP	08/2005 - 10/2009
1.2	1149 CCM	60 HP	From 08/2003
1.2 16V	1149 CCM	75 HP	From 04/2006
1.6 16V	1598 CCM	95 HP	08/2003 - 10/2009
1.5 dCi	1461 CCM	65 HP	From 08/2003
1.5 dCi	1461 CCM	82 HP	08/2003 - 10/2009
1.5 dCi 70	1461 CCM	68 HP	09/2005 - 10/2009
dCi 85	1461 CCM	84 HP	04/2006 - 10/2009
1.5 dCi	1461 CCM	57 HP	08/2003 - 10/2009

RENAULT

KANGOO (KC0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.2 (KC0A, KC0K, KC0F, KC01)	1149 CCM	58 HP	From 08/1997
1.4 (KC0C, KC0H, KC0B, KC0M)	1390 CCM	75 HP	From 08/1997
D 55 1.9 (KC0D)	1870 CCM	54 HP	From 08/1997
D 65 1.9 (KC0E, KC02, KC0J, KC0N)	1870 CCM	64 HP	08/1997 - 06/2001
1.9 dTi (KC0U)	1870 CCM	80 HP	From 02/2000
1.6 16V	1598 CCM	95 HP	06/2001 - 03/2018
1.2 16V (KC05, KC06, KC03, KC0T, KC0W, KC1D)	1149 CCM	75 HP	From 06/2001
1.5 dCi (KC07)	1461 CCM	65 HP	From 12/2001
1.5 dCi (KC08, KC09)	1461 CCM	82 HP	From 07/2002
1.5 dCi	1461 CCM	57 HP	From 07/2003
1.6 16V bivalent	1598 CCM	82 HP	From 06/2005
1.5 dCi	1461 CCM	68 HP	From 06/2005

KANGOO Express (FC0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi	1461 CCM	61 HP	From 10/2005
1.6 16V bivalent	1598 CCM	82 HP	From 06/2005
1.2 (FC01, FC0A, FC0F)	1149 CCM	58 HP	From 08/1997
1.4 (FC0C, FC0B, FC0H, FC0M)	1390 CCM	75 HP	08/1997 - 06/2008
D 55 1.9 (FC0D)	1870 CCM	54 HP	From 08/1997
D 65 1.9 (FC0E, FC02, FC0J, FC0N)	1870 CCM	64 HP	From 08/1997
1.9 dTi (FC0U)	1870 CCM	80 HP	From 02/2000
1.2 16V (FC05, FC0W, FC1D, FC1P, FC1K, FC0T)	1149 CCM	75 HP	From 10/2001
1.6 16V	1598 CCM	95 HP	10/2001 - 03/2018
1.5 dCi (FC07, FC1R)	1461 CCM	65 HP	From 12/2001
1.5 dCi (FC1R)	1461 CCM	57 HP	From 12/2002
1.5 dCi (FC08, FC09)	1461 CCM	82 HP	From 04/2003
1.9 dCi (FC0V)	1870 CCM	84 HP	From 07/2003

The Bosch 0204114156 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, with accessories and with wheel brake cylinder, 203 mm inner brake drum diameter, and 22.2 mm piston diameter. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 203

Width [mm] : 38

Piston Diameter [mm] : 22.2

BORG & BECK : BBS1099K
BREMBO : K 68 071
DELPHI : KP931
DELPHI : LAJ1003
FEBI BILSTEIN : 37243
FTE : 9110023
HELLA : 8DB 355 004-401
MEYLE : 16-14 533 0019
MINTEX : MSP145
TEXTAR : 84052800
TRW : GSK1071
VALEO : 554638

Bosch 0204114156 Brake Shoe Set
