BOSCH

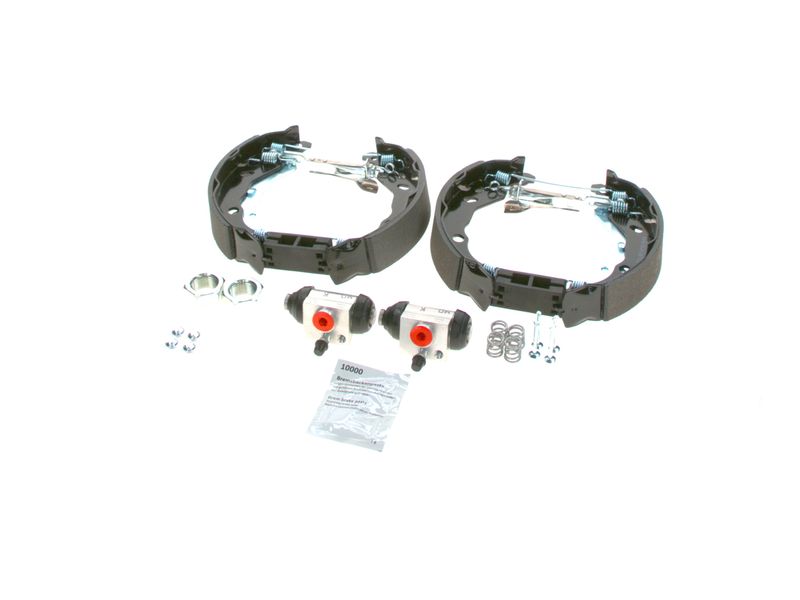

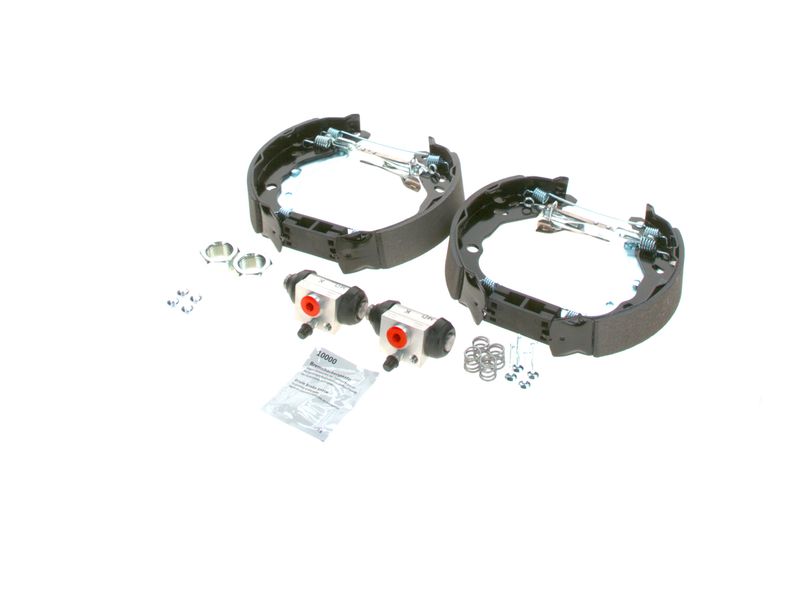

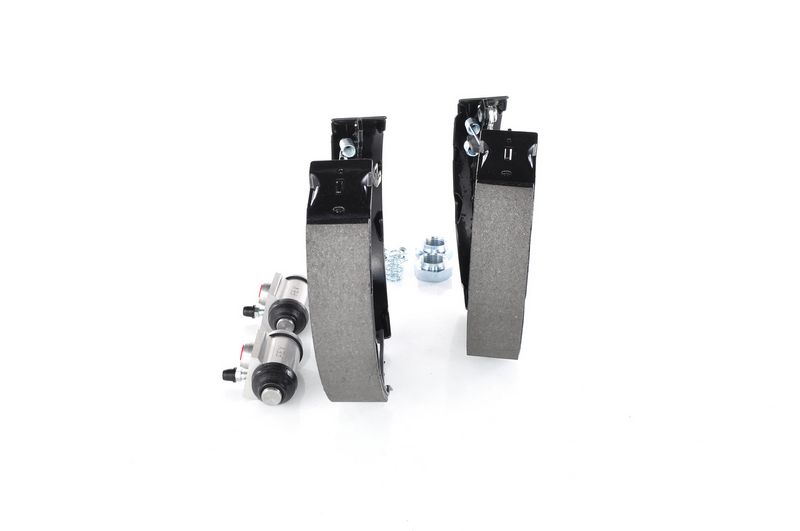

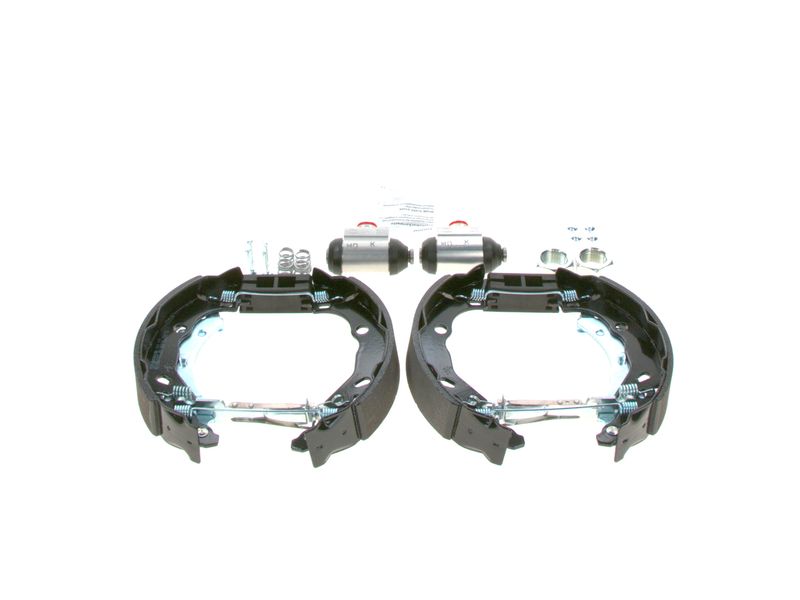

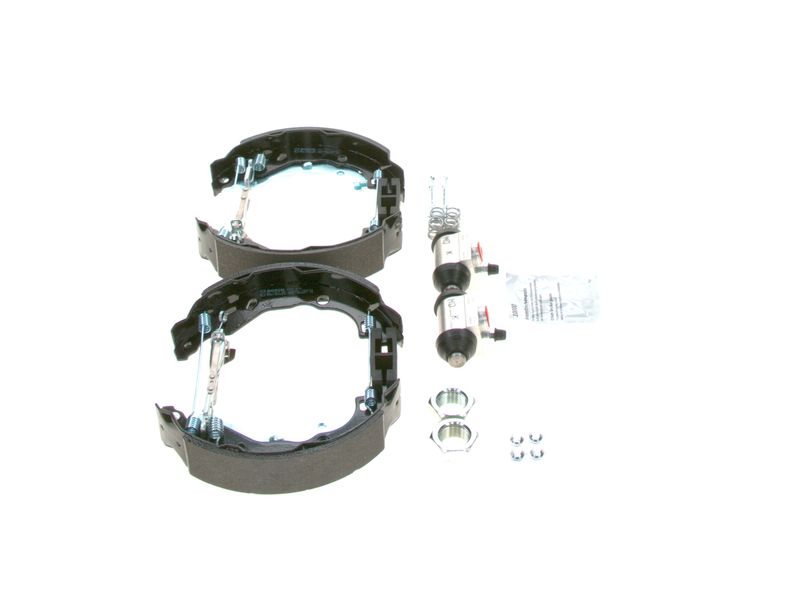

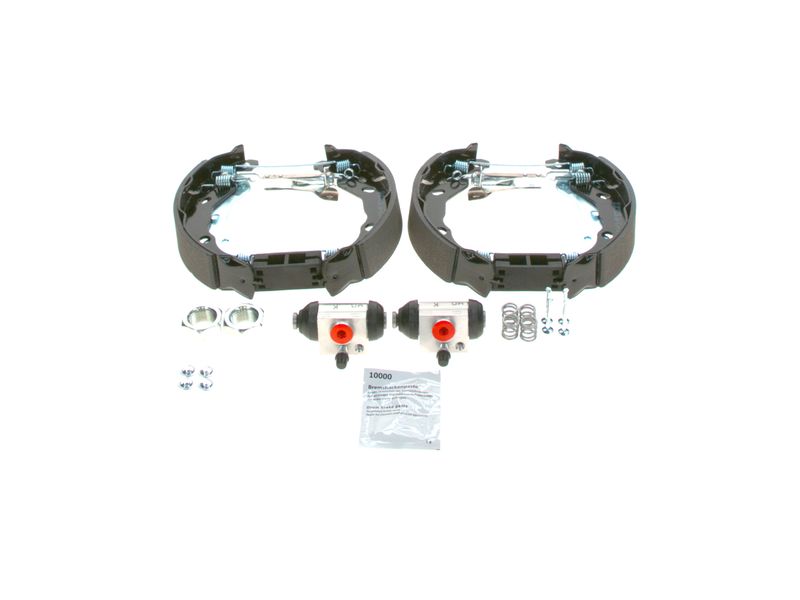

Bosch 0204114181 Brake Shoe Set

SKU: 0204114181

Your selected vehicle

Out of stock

Out of Stock

£86.54 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN

C2 (JM_)

Description	Cylinder Capacity	Horse Power	Year
1.1	1124 CCM	60 HP	09/2003 - 09/2012
1.4	1360 CCM	73 HP	09/2003 - 12/2009
1.4 HDi	1398 CCM	68 HP	07/2003 - 12/2009
1.4 16V	1360 CCM	90 HP	04/2005 - 12/2009
1.4	1360 CCM	75 HP	10/2006 - 12/2009
1.4 HDi	1398 CCM	69 HP	09/2003 - 04/2005

C2 ENTERPRISE (JG_)

Description	Cylinder Capacity	Horse Power	Year
1.4 HDi	1398 CCM	68 HP	09/2006 - 12/2009
1.4 HDi	1398 CCM	69 HP	11/2003 - 04/2005
1.1	1124 CCM	60 HP	11/2003 - 12/2009

C3 I (FC_, FN_)

Description	Cylinder Capacity	Horse Power	Year
1.4 HDi	1398 CCM	70 HP	04/2002 - 02/2011
1.1 i	1124 CCM	60 HP	08/2002 - 12/2010
1.4 HDi	1398 CCM	68 HP	02/2002 - 12/2009
1.4 i Bivalent	1360 CCM	73 HP	02/2002 - 12/2009
1.6 16V	1587 CCM	109 HP	02/2002 - 08/2010
1.4 16V HDi	1398 CCM	90 HP	02/2002 - 06/2008
1.4 16V	1360 CCM	88 HP	12/2003 - 08/2010
1.6 16V HDi	1560 CCM	90 HP	10/2005 - 12/2009
1.4 i	1360 CCM	73 HP	04/2002 - 12/2006
1.4 HDi	1398 CCM	75 HP	05/2005 - 12/2009

C3 Pluriel (HB_)

Description	Cylinder Capacity	Horse Power	Year
1.4	1360 CCM	73 HP	From 05/2003
1.4 HDi	1398 CCM	68 HP	From 04/2004
1.4	1360 CCM	75 HP	From 07/2003

PEUGEOT

1007 (KM_)

Description	Cylinder Capacity	Horse Power	Year
1.4	1360 CCM	75 HP	From 04/2005
1.4 HDi	1398 CCM	68 HP	From 04/2005
1.4 16V	1360 CCM	88 HP	From 10/2005

The Bosch 0204114181 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 203 mm inner brake drum diameter, 20.6 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 203

Width [mm] : 38

Piston Diameter [mm] : 20.6

Engine Code : HFX (TU1JP)

Construction Year to : 12.2009

Fitting Position : Rear Axle

Braking/Driving Dynamics : for vehicles with ABS

Manufacturer Restriction : Bosch
