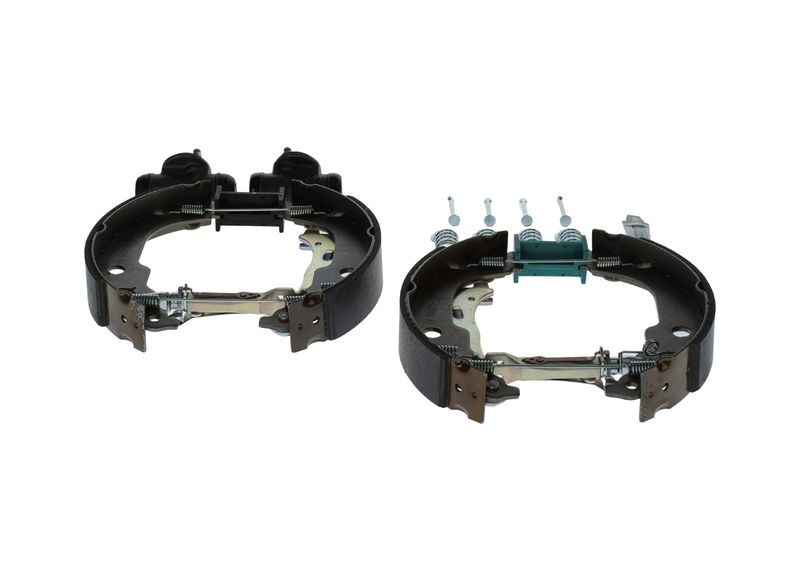

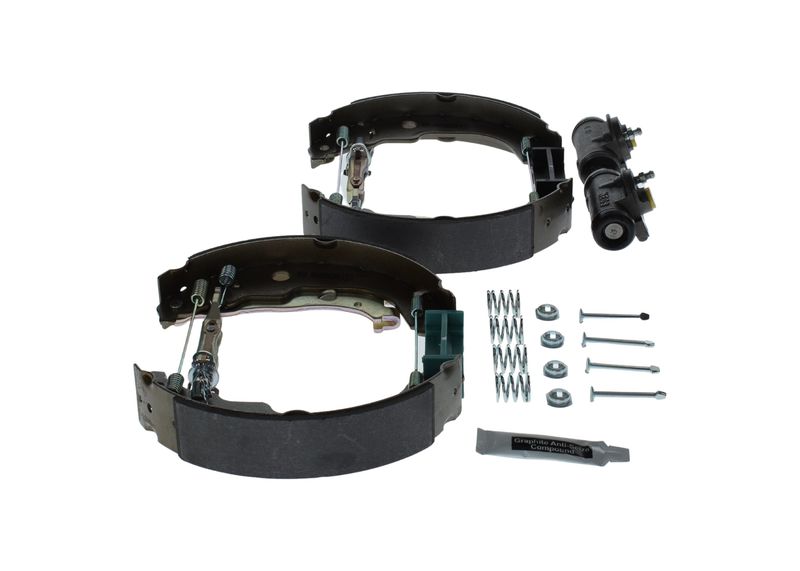

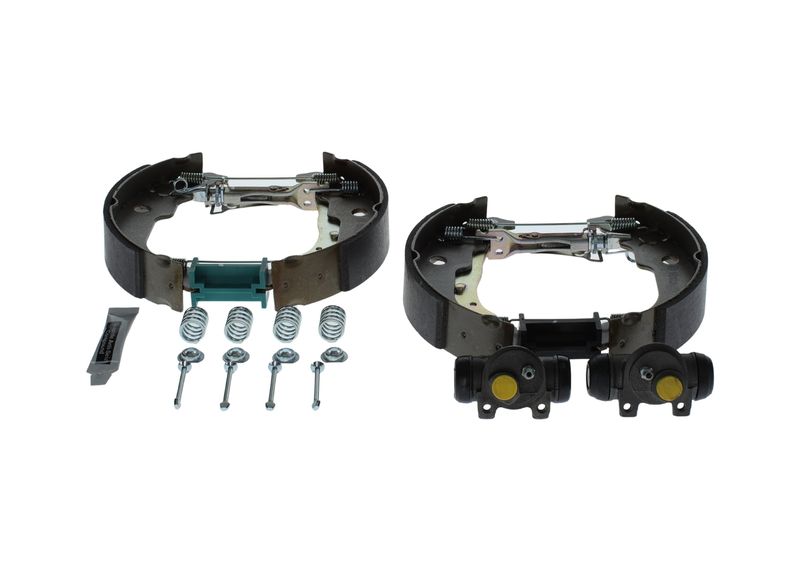

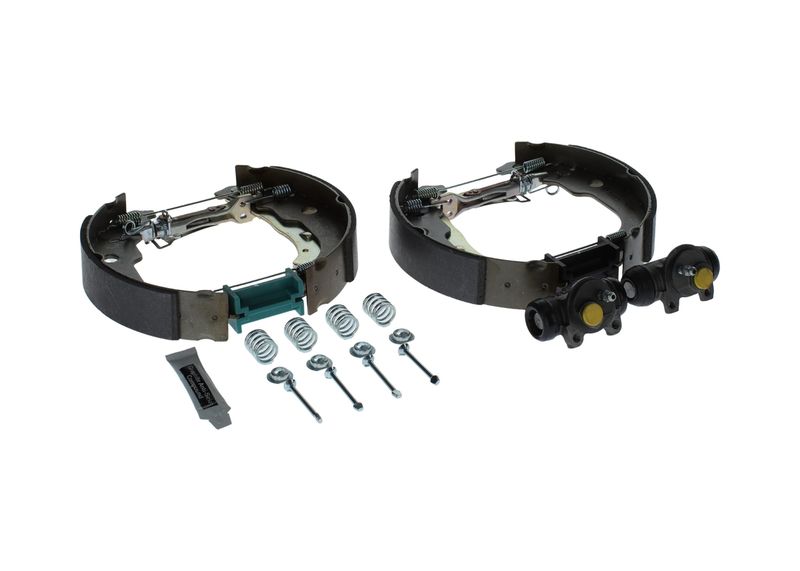

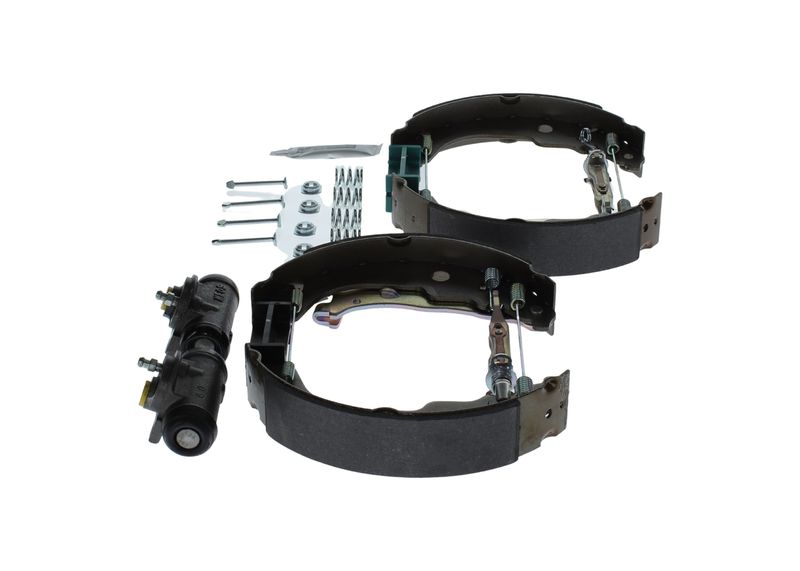

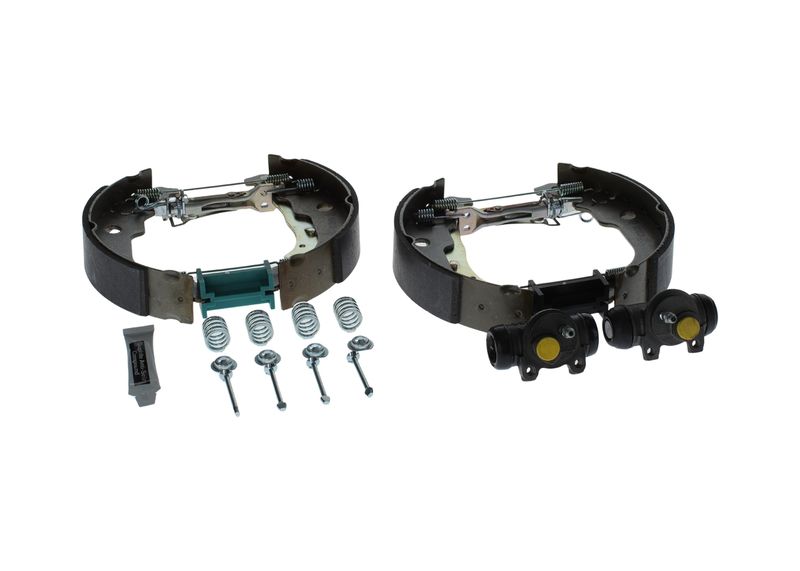

Bosch 0204114192 Brake Shoe Set
Your selected vehicle
Regular price
£88.03
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0204114192 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 228 mm inner brake drum diameter, 20.64 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Shoe Set
Mounting Type :
Pre-assembled
Adjustment :
with automatic adjustment
Supplementary Article/Supplementary Info :
with accessories
Brake Lining :
with lining
Supplementary Article/Supplementary Info :
with wheel brake cylinder
Inner brake drum diameter [mm] :
228
Width [mm] :
40
Piston Diameter [mm] :
20.64
Engine Code :
KFV (TU3A)
Construction Year to :
06.2009
Fitting Position :
Rear Axle
Braking/Driving Dynamics :
for vehicles without ABS
- Vendor BOSCH
- SKU 0204114192
- BORG & BECK : BBD6177S
- BORG & BECK : BBS1123K
- BREMBO : K 61 085
- DELPHI : KP1113
- FEBI BILSTEIN : 37550
- HELLA : 8DB 355 005-001
- MINTEX : MSP277
- TEXTAR : 84067200
- TRW : GSK1263
- BOSCH : KS192
