BOSCH

Bosch 0204114518 Brake Shoe Set

SKU: 0204114518

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£67.73 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

LAGUNA I Estate (K56_)

Description	Cylinder Capacity	Horse Power	Year
1.8 (K56S/T/0)	1794 CCM	90 HP	09/1995 - 03/2001
1.8 (K56Z)	1794 CCM	94 HP	09/1995 - 03/2001
2.0 (K56C/H)	1998 CCM	113 HP	09/1995 - 03/2001
2.2 D (K56F/2, S56F)	2188 CCM	83 HP	09/1995 - 03/2001
2.2 dT (K569)	2188 CCM	113 HP	03/1996 - 03/2001
2.0	1998 CCM	114 HP	10/1998 - 01/2001

MEGANE Scénic (JA0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.4 i (JA0E)	1390 CCM	75 HP	01/1997 - 09/1999
1.6 i (JA0L)	1598 CCM	75 HP	01/1997 - 09/1999
1.6 e (JA0F)	1598 CCM	90 HP	10/1996 - 10/1999
2.0 i (JA0G)	1998 CCM	114 HP	01/1997 - 09/1999
1.9 dT (JA0K, JA0Y)	1870 CCM	90 HP	01/1997 - 09/1999
1.9 D (JA0J)	1870 CCM	64 HP	03/1997 - 09/1999
1.9 dTi (JA0N)	1870 CCM	98 HP	04/1997 - 09/1999
1.6 16V (JA0B, JA04, JA11, JA00)	1598 CCM	107 HP	04/1998 - 10/1999
2.0 i (JA02, JA0G)	1998 CCM	109 HP	01/1999 - 09/1999
1.9 dT (JA0Y)	1870 CCM	94 HP	03/1997 - 08/1999

MEGANE Scénic VAN (JA0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.9 DTi (JA0N)	1870 CCM	98 HP	04/1997 - 09/1999

MEGANE I Grandtour (KA0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.4 e (KA0V)	1390 CCM	75 HP	03/1999 - 08/2003
1.6 e (KA0F)	1598 CCM	90 HP	03/1999 - 08/2003
1.9 dTi (KA0N)	1870 CCM	98 HP	03/1999 - 02/2001
1.4 16V (KA0D, KA1H, KA0W, KA10)	1390 CCM	95 HP	03/1999 - 08/2003
1.6 16V (KA0B, KA04, KA11)	1598 CCM	107 HP	03/1999 - 08/2003
1.9 dCi (KA05, KA1F)	1870 CCM	102 HP	02/2001 - 08/2003

SCÉNIC I MPV (JA0/1_, FA0_)

Description	Cylinder Capacity	Horse Power	Year
1.4 16V (JA0D, JA1H, Ja0W, JA10)	1390 CCM	95 HP	09/1999 - 08/2003
1.9 dTi (JA0N)	1870 CCM	98 HP	09/1999 - 08/2003
1.6 BiFuel (JA04)	1598 CCM	107 HP	09/1999 - 04/2001
1.6 (JA00, JA16, JA15, JA19, JA1V, JA2B, JA2C, JA0B,...	1598 CCM	107 HP	09/1999 - 09/2003

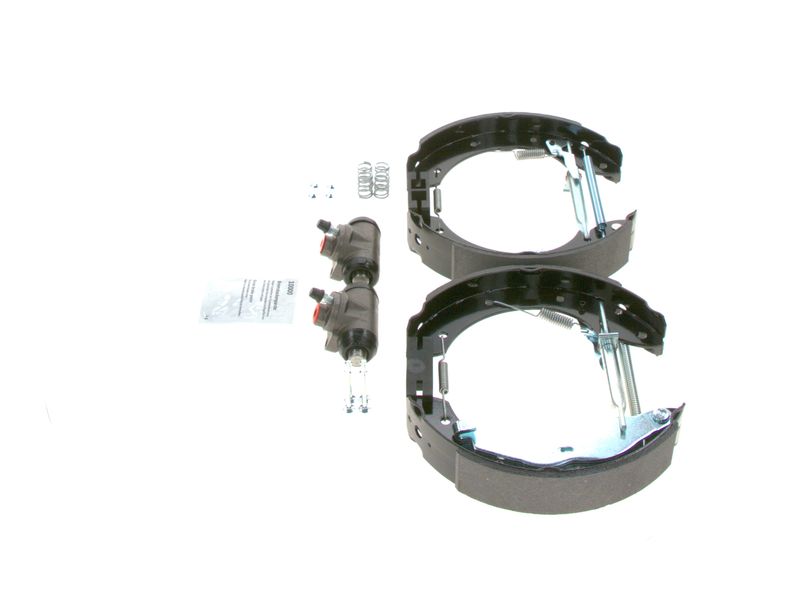

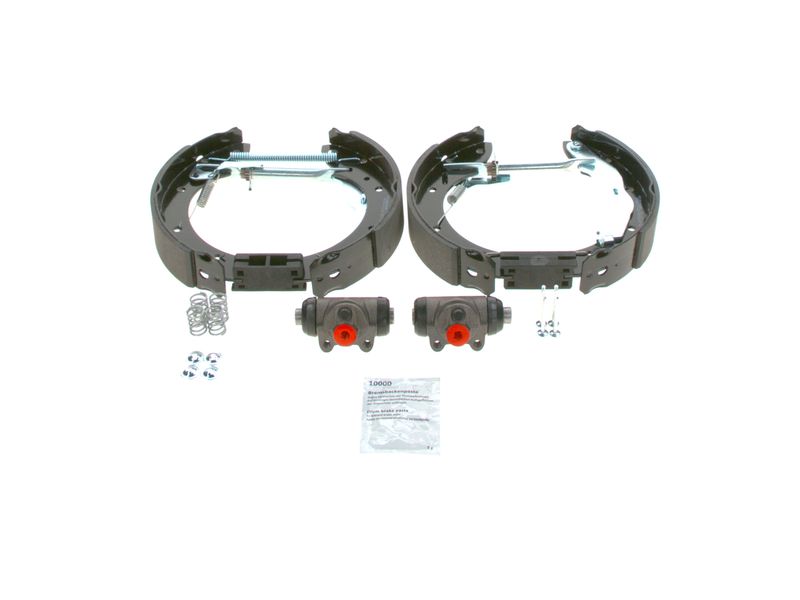

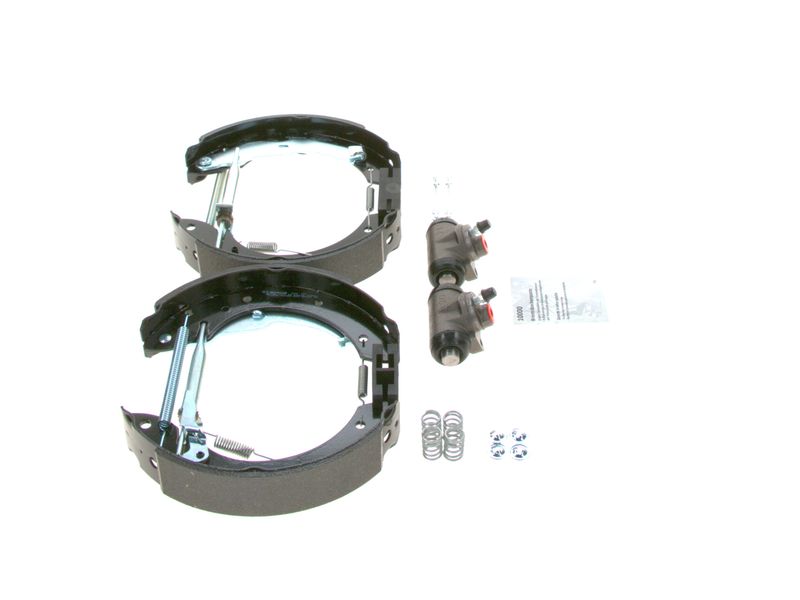

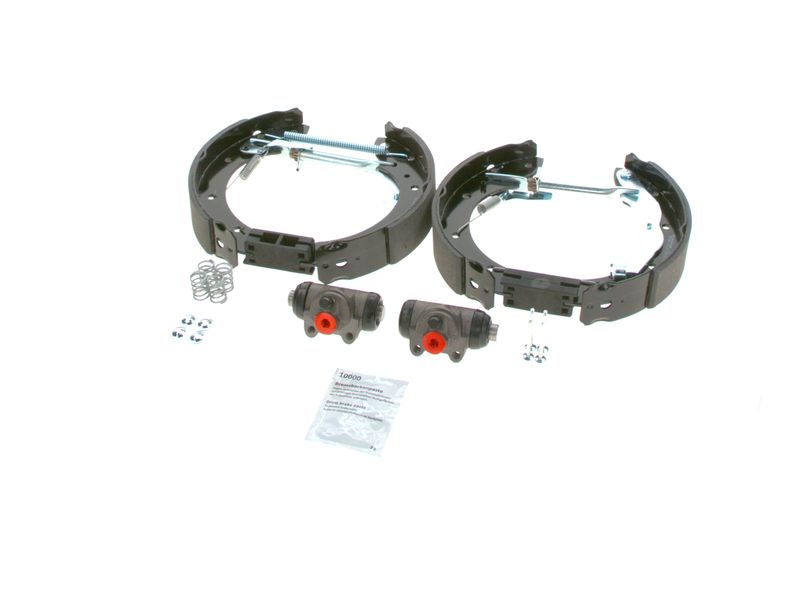

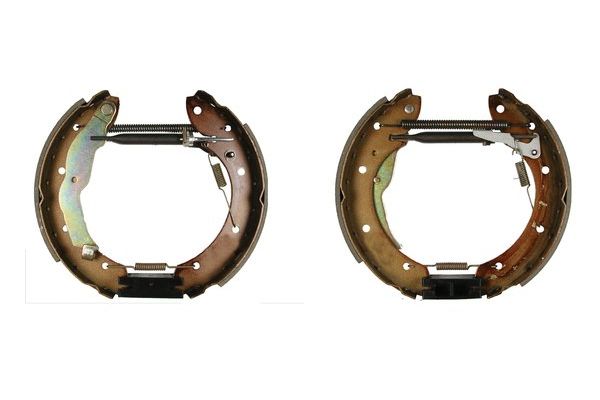

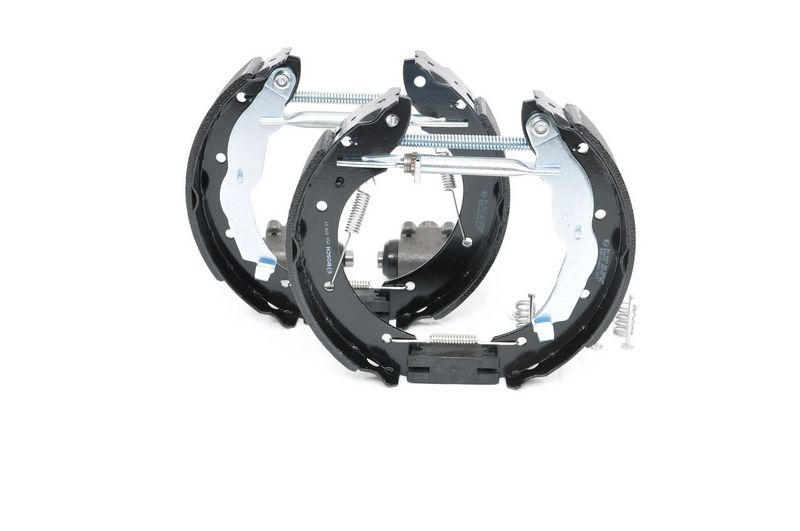

The Bosch 0204114518 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 229 mm inner brake drum diameter, 20.6 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 229

Width [mm] : 42

Piston Diameter [mm] : 20.6

Construction Year to : 02.2001

Fitting Position : Rear Axle

BORG & BECK : BBS1035K
BREMBO : K 68 060
DELPHI : KP895
FEBI BILSTEIN : 37242
FTE : 9110015
HELLA : 8DB 355 004-321
MINTEX : MSP137
TEXTAR : 84050000
TRW : GS8620
TRW : GSK1053
VALEO : 554701

Bosch 0204114518 Brake Shoe Set
