BOSCH

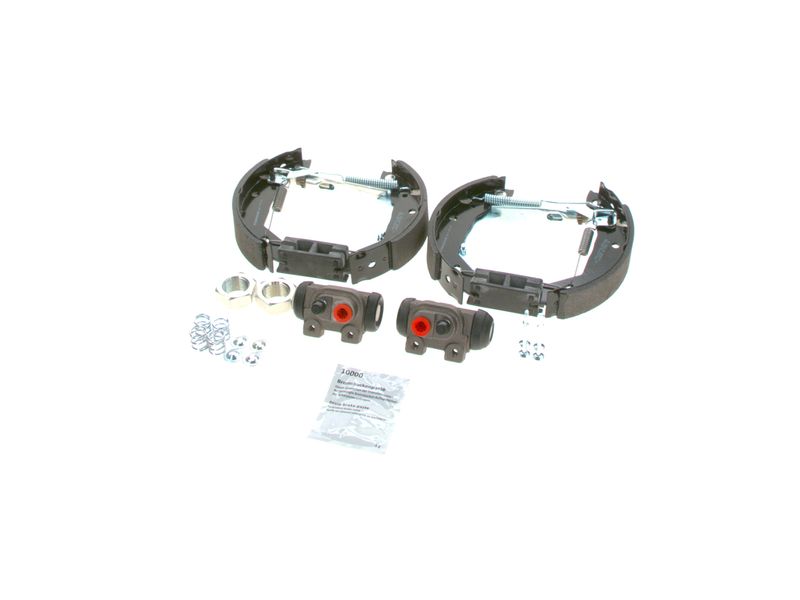

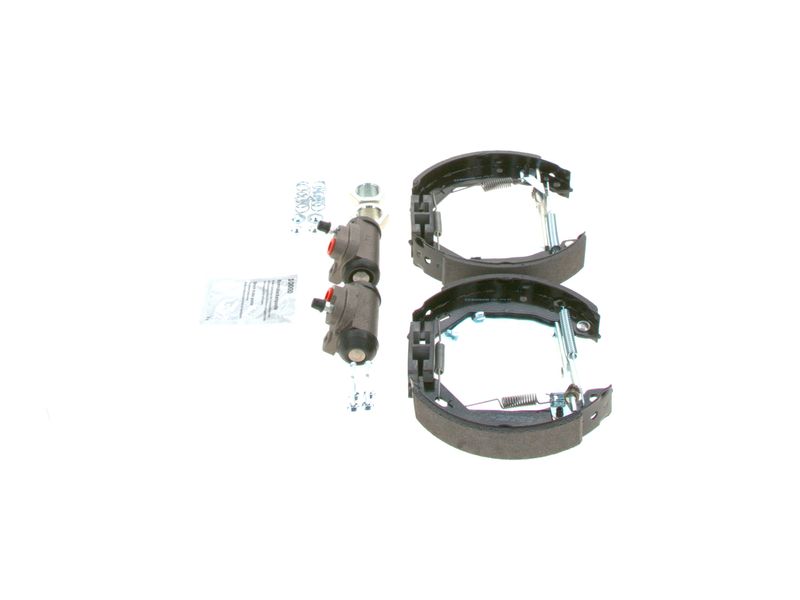

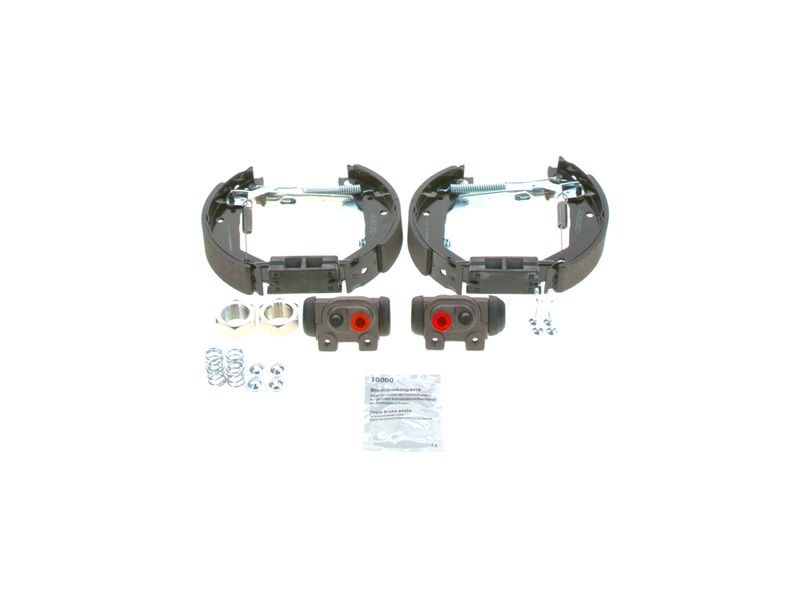

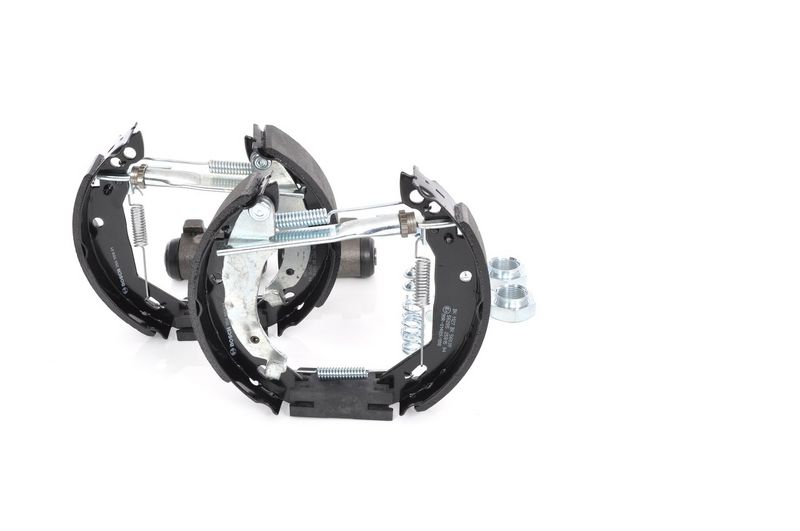

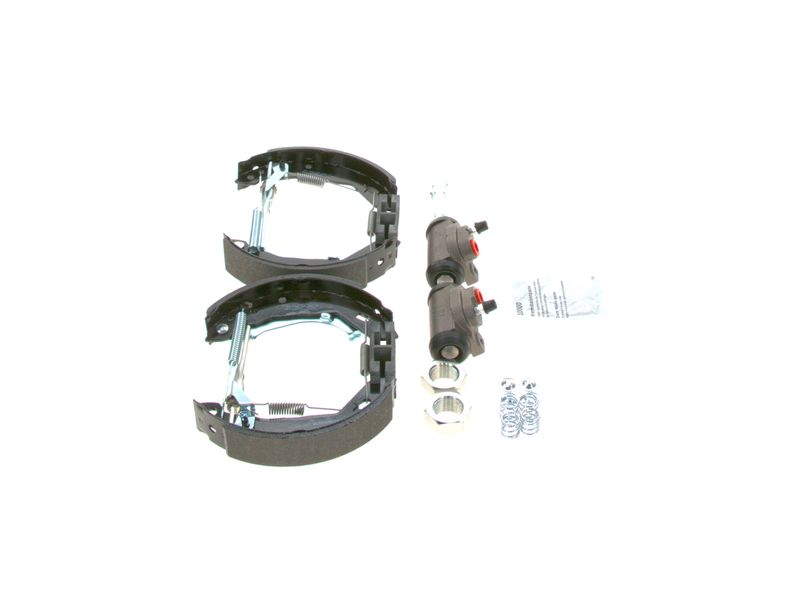

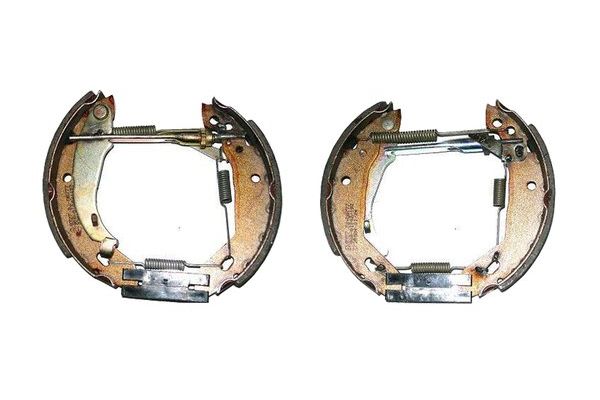

Bosch 0204114525 Brake Shoe Set

SKU: 0204114525

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£71.37 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN

XSARA (N1)

Description	Cylinder Capacity	Horse Power	Year
1.8 i	1761 CCM	90 HP	04/1997 - 09/2000
1.8 i Aut.	1761 CCM	101 HP	04/1997 - 09/2000
1.8 i 16V	1761 CCM	110 HP	04/1997 - 09/2000
1.4 i	1360 CCM	75 HP	04/1997 - 03/2005
1.5 D	1527 CCM	57 HP	04/1997 - 09/2000
1.6 i	1587 CCM	88 HP	04/1997 - 09/2000
1.8 D	1769 CCM	58 HP	04/1997 - 09/2000
1.9 D	1905 CCM	68 HP	04/1997 - 09/2000
1.9 D	1868 CCM	70 HP	07/1998 - 03/2005

XSARA Coupe (N0)

Description	Cylinder Capacity	Horse Power	Year
1.8 i	1761 CCM	90 HP	02/1998 - 09/2000
1.8 i 16V	1761 CCM	110 HP	02/1998 - 09/2000
1.4 i	1360 CCM	75 HP	03/1998 - 03/2005
1.9 D	1868 CCM	70 HP	02/1999 - 03/2005
1.9 D	1905 CCM	68 HP	02/1998 - 09/2000
1.6 i	1587 CCM	88 HP	02/1998 - 09/2000
1.8 i	1761 CCM	101 HP	02/1998 - 09/2000

ZX (N2)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	64 HP	03/1991 - 06/1997
1.4 i	1360 CCM	75 HP	03/1991 - 06/1997
1.6 i	1580 CCM	88 HP	03/1991 - 06/1997
1.8 i	1761 CCM	101 HP	07/1992 - 06/1997
1.9 D	1905 CCM	68 HP	07/1993 - 06/1997
1.8 i 16V	1761 CCM	110 HP	01/1996 - 06/1997
1.1	1124 CCM	60 HP	03/1991 - 06/1997
1.4	1360 CCM	75 HP	03/1991 - 06/1997
1.8 D	1769 CCM	60 HP	06/1993 - 06/1997

PEUGEOT

306 Hatchback (7A, 7C, N3, N5)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	64 HP	05/1993 - 05/2001
1.9 DT	1905 CCM	90 HP	05/1993 - 05/2001
1.1	1124 CCM	60 HP	05/1993 - 05/2001
1.4	1360 CCM	75 HP	04/1993 - 07/2001
1.6	1587 CCM	89 HP	05/1993 - 10/2000
1.8	1761 CCM	101 HP	05/1993 - 05/2001
1.9 D	1905 CCM	68 HP	06/1994 - 05/2001
1.9 D	1905 CCM	75 HP	03/1998 - 05/2001
1.9 D	1868 CCM	69 HP	09/1998 - 05/2001

306 (7B, N3, N5)

Description	Cylinder Capacity	Horse Power	Year
1.1	1124 CCM	60 HP	06/1994 - 05/2001
1.4 SL	1360 CCM	75 HP	06/1994 - 05/2001
1.8 ST	1761 CCM	101 HP	06/1994 - 05/2001
1.6 SR	1587 CCM	89 HP	06/1994 - 10/2000
1.9 SRDT	1905 CCM	90 HP	06/1994 - 05/2001
1.9 SLD	1905 CCM	64 HP	06/1994 - 05/2001
1.9 SLD	1905 CCM	68 HP	06/1994 - 05/2001
1.9 D	1905 CCM	75 HP	03/1998 - 05/2001
1.9 D	1868 CCM	69 HP	09/1998 - 05/2001

306 Hatchback Van

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	68 HP	05/1997 - 05/1999
1.9 D	1868 CCM	69 HP	02/1999 - 08/2001
1.9 STD	1905 CCM	69 HP	02/1994 - 10/1995

306 Estate Van (N_, 7_)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	92 HP	02/1994 - 04/1999
1.9 STD	1905 CCM	69 HP	02/1994 - 05/1999
1.9 D	1868 CCM	69 HP	02/1999 - 08/2002
1.9 D	1905 CCM	68 HP	05/1997 - 05/1999

306 Convertible (7D, N3, N5)

Description	Cylinder Capacity	Horse Power	Year
1.8	1761 CCM	101 HP	03/1994 - 04/2002
1.6	1587 CCM	89 HP	04/1996 - 10/2000
1.6	1587 CCM	98 HP	10/2000 - 04/2002
1.8	1761 CCM	101 HP	05/1997 - 04/1999

306 Break (7E, N3, N5)

Description	Cylinder Capacity	Horse Power	Year
1.4	1360 CCM	75 HP	03/1997 - 04/2002
1.9 TD	1905 CCM	90 HP	02/1997 - 04/2002
1.9 D	1905 CCM	68 HP	03/1997 - 04/2002
1.8	1761 CCM	101 HP	03/1997 - 04/2002
1.6	1587 CCM	89 HP	03/1997 - 10/2000
1.9 D	1905 CCM	75 HP	03/1998 - 04/2002
1.9 D	1868 CCM	69 HP	09/1998 - 04/2002
1.6	1587 CCM	98 HP	10/2000 - 04/2002
1.9 D	1905 CCM	69 HP	05/1997 - 05/1999
1.9 Td	1905 CCM	71 HP	07/1995 - 08/2000

The Bosch 0204114525 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 180 mm inner brake drum diameter, rear axle fitting position, and Lucas-Girling brake-system specification. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 180

Width [mm] : 30

Piston Diameter [mm] : 20.6

Engine Code : KFX (TU3JP)

Construction Year from : 07.1997

Construction Year to : 08.2000

Fitting Position : Rear Axle

Braking/Driving Dynamics : for vehicles without ABS

Brake System : Lucas-Girling

Bosch 0204114525 Brake Shoe Set
