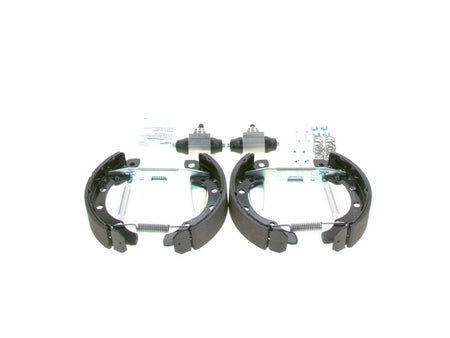

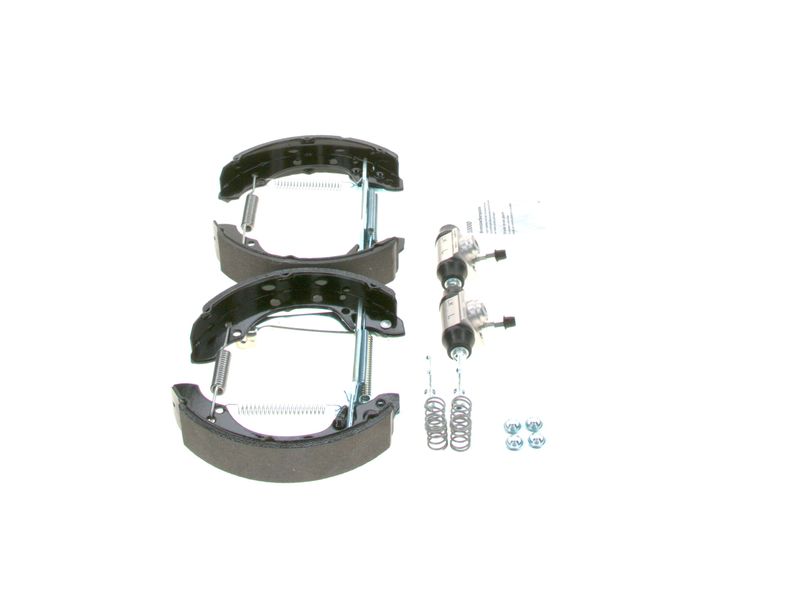

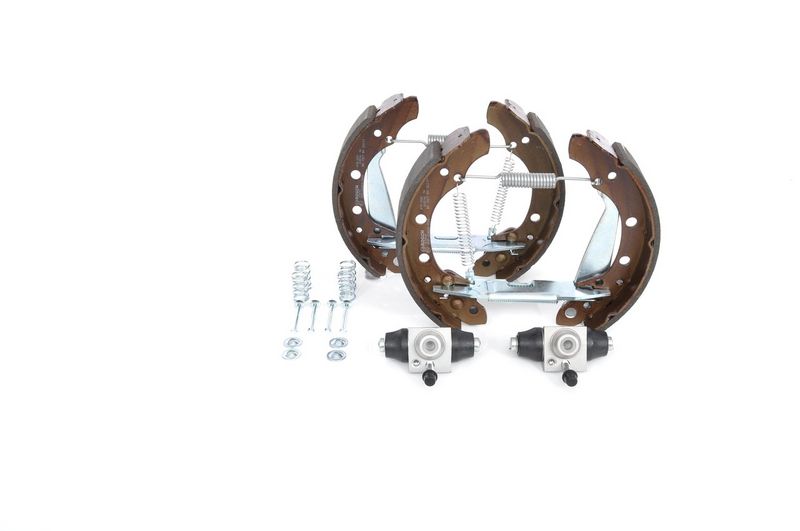

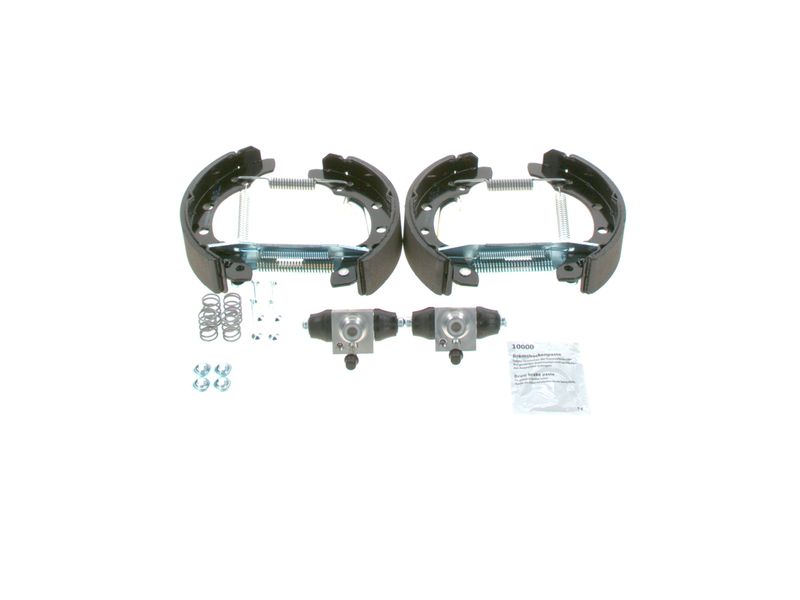

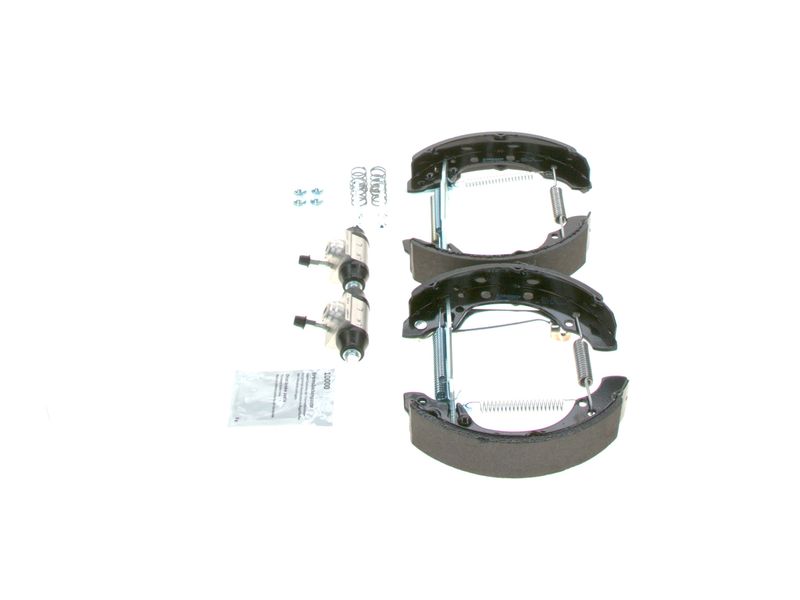

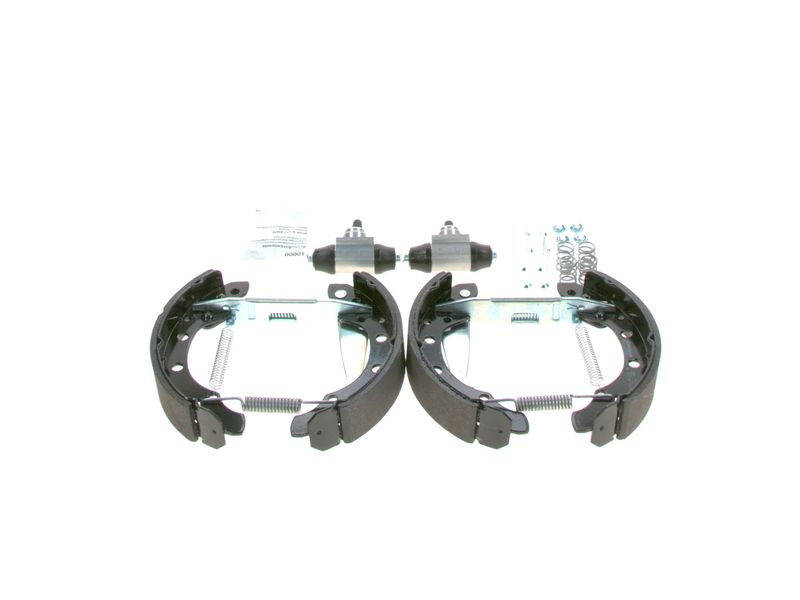

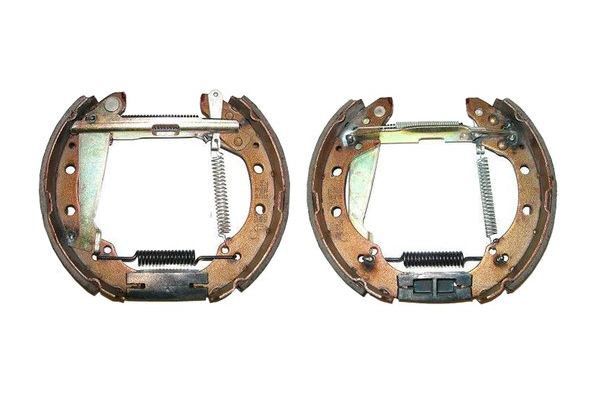

Bosch 0204114547 Brake Shoe Set

Position: Rear
5.0/5 78 reviews
SKU: 0204114547

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
Regular price £57.46 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

AUDI
80 B3 Saloon (893, 894, 8A2)
Description Cylinder Capacity Horse Power Year
1.6 1595 CCM 75 HP 09/1986 - 08/1991
1.8 1781 CCM 75 HP 10/1986 - 01/1990
1.6 D 1588 CCM 54 HP 02/1987 - 07/1989
1.6 1595 CCM 70 HP 08/1987 - 09/1991
SEAT
AROSA (6H1)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 50 HP 05/1997 - 06/2004
1.4 1389 CCM 60 HP 05/1997 - 06/2004
1.7 SDI 1716 CCM 60 HP 08/1997 - 06/2004
1.4 16V 1390 CCM 100 HP 01/2000 - 06/2004
1.4 TDI 1422 CCM 75 HP 01/2000 - 06/2004
1.0 997 CCM 50 HP 10/1998 - 01/2001
VW
GOLF Mk III (1H1)
Description Cylinder Capacity Horse Power Year
1.9 TD, GTD 1896 CCM 75 HP 11/1991 - 08/1997
1.4 1390 CCM 55 HP 11/1991 - 08/1997
1.6 1598 CCM 75 HP 09/1992 - 08/1997
1.8 1781 CCM 75 HP 11/1991 - 08/1997
1.8 1781 CCM 90 HP 11/1991 - 08/1997
1.4 1390 CCM 60 HP 10/1991 - 08/1997
1.6 1595 CCM 101 HP 07/1995 - 08/1997
GOLF III Van (1H1)
Description Cylinder Capacity Horse Power Year
1.8 1781 CCM 90 HP 08/1991 - 12/1997
1.4 1390 CCM 60 HP 08/1991 - 05/1996
1.9 D 1896 CCM 75 HP 08/1991 - 07/1995
1.8 1781 CCM 75 HP 08/1991 - 07/1995
LUPO I (6X1, 6E1)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 50 HP 09/1998 - 07/2005
1.4 16V 1390 CCM 75 HP 09/1998 - 07/2005
1.7 SDI 1716 CCM 60 HP 09/1998 - 07/2005
1.2 TDI 3L 1191 CCM 61 HP 07/1999 - 07/2005
1.4 16V 1390 CCM 100 HP 08/1999 - 07/2005
1.4 TDI 1422 CCM 75 HP 01/1999 - 07/2005
1.4 FSI 1390 CCM 105 HP 02/2001 - 07/2005
1.4 1390 CCM 60 HP 10/2000 - 07/2005
1.0 997 CCM 50 HP 10/1998 - 05/2000

The Bosch 0204114547 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 200 mm inner brake drum diameter, 15.8 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Mounting Type : Pre-assembled
Adjustment : with automatic adjustment
Supplementary Article/Supplementary Info : with accessories
Brake Lining : with lining
Supplementary Article/Supplementary Info : with wheel brake cylinder
Inner brake drum diameter [mm] : 200
Width [mm] : 40
Piston Diameter [mm] : 15.8
Fitting Position : Rear Axle
  • Vendor BOSCH
  • SKU 0204114547
  • Barcode 3165141175554
  • BORG & BECK : BBS1026K
  • BREMBO : K 85 029
  • FTE : 9110001
  • MEYLE : 114 533 0010
  • MINTEX : MSP121
  • TEXTAR : 84044702
  • TRW : GSK1511
  • VALEO : 554697
  • BOSCH : KS547
