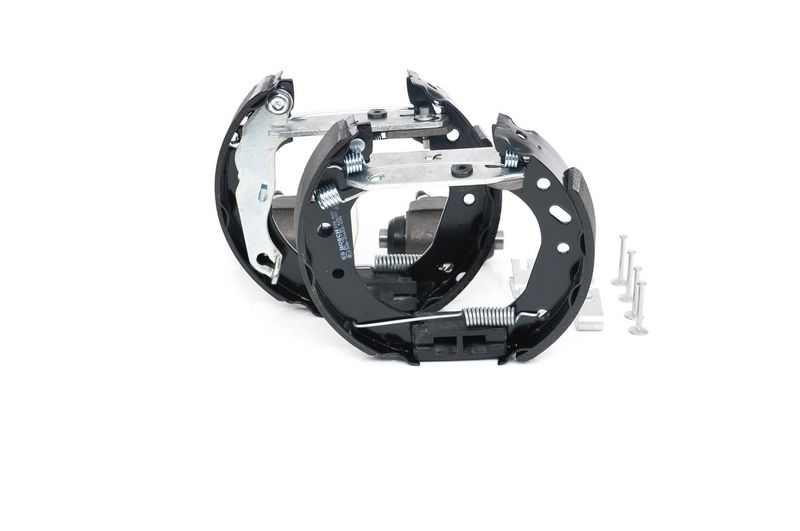

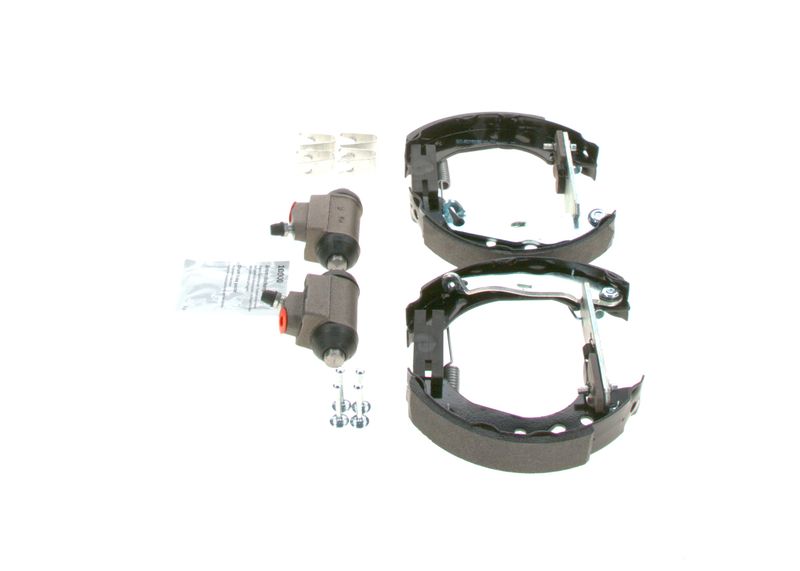

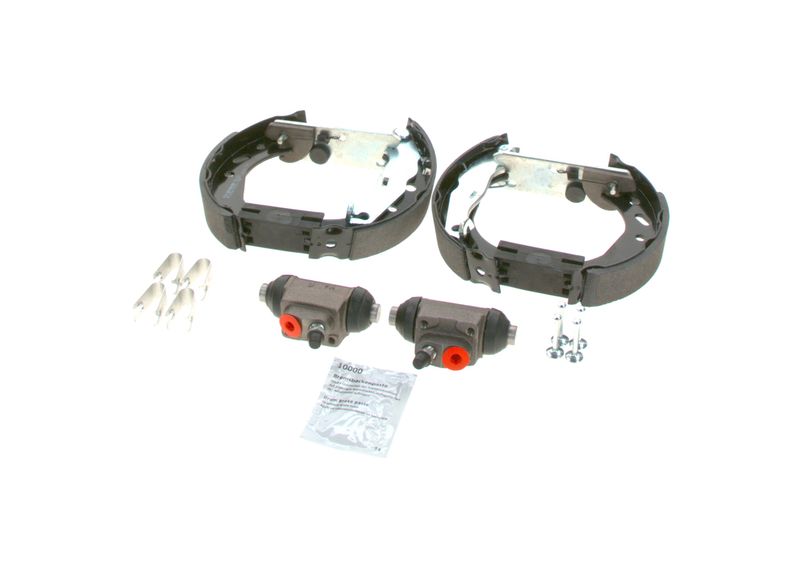

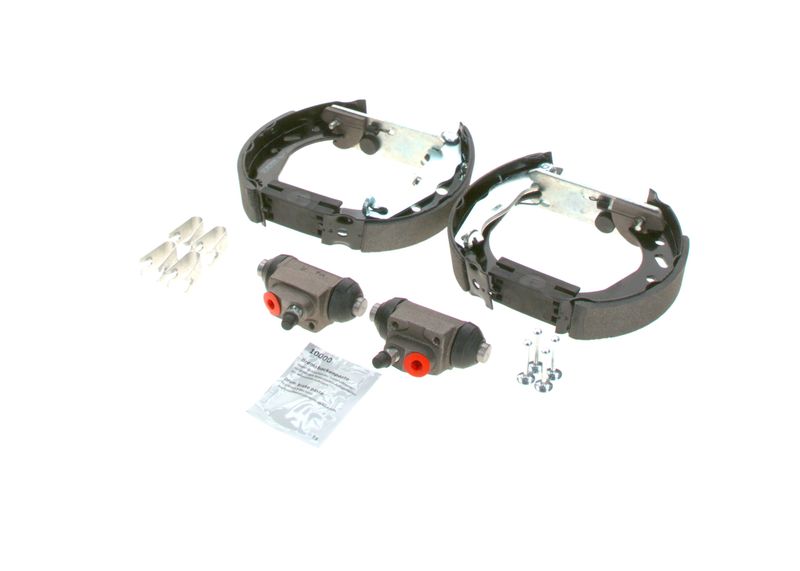

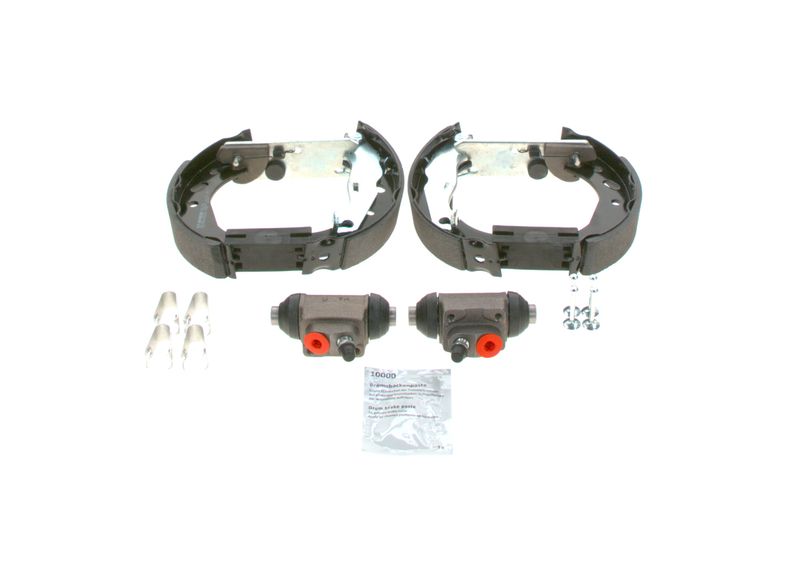

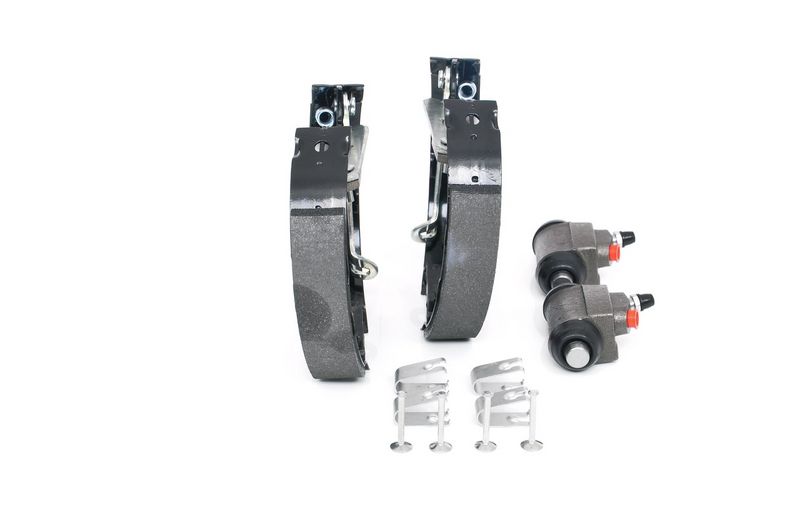

Bosch 0204114586 Brake Shoe Set - 1
Bosch 0204114586 Brake Shoe Set - 2
Bosch 0204114586 Brake Shoe Set - 3
Bosch 0204114586 Brake Shoe Set - 4
Bosch 0204114586 Brake Shoe Set - 5
Bosch 0204114586 Brake Shoe Set - 6
Bosch 0204114586 Brake Shoe Set - 1
Bosch 0204114586 Brake Shoe Set - 2
Bosch 0204114586 Brake Shoe Set - 3
Bosch 0204114586 Brake Shoe Set - 4
Bosch 0204114586 Brake Shoe Set - 5
Bosch 0204114586 Brake Shoe Set - 6
BOSCH

Bosch 0204114586 Brake Shoe Set

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0204114586

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£53.31 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
COURIER Hatchback Van (JV_)
Description Cylinder Capacity Horse Power Year
D 1.8 1753 CCM 60 HP 05/1998 - 04/2002
TD 1.8 1753 CCM 75 HP 03/2000 - 08/2003
1.4 1388 CCM 90 HP 08/1998 - 04/2002
FIESTA Mk IV (JA_, JB_)
Description Cylinder Capacity Horse Power Year
1.3 i 1299 CCM 50 HP 08/1995 - 01/2002
1.3 i 1299 CCM 60 HP 08/1995 - 01/2002
1.25 i 16V 1242 CCM 75 HP 08/1995 - 01/2002
1.8 D 1753 CCM 60 HP 08/1995 - 04/2000
1.4 i 16V 1388 CCM 90 HP 04/1996 - 01/2002
1.6 16V Sport 1596 CCM 103 HP 02/2000 - 01/2002
1.8 DI 1753 CCM 75 HP 04/2000 - 01/2002
KA (RB_)
Description Cylinder Capacity Horse Power Year
1.3 i 1299 CCM 50 HP 09/1996 - 10/2002
1.3 i 1299 CCM 60 HP 09/1996 - 11/2008
1.3 i 1299 CCM 49 HP 06/1998 - 11/2008
KA Van (RB)
Description Cylinder Capacity Horse Power Year
1.3 i 1299 CCM 60 HP 05/2002 - 05/2005

The Bosch 0204114586 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 180 mm inner brake drum diameter, 17.8 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Mounting Type : Pre-assembled
Adjustment : with automatic adjustment
Supplementary Article/Supplementary Info : with accessories
Brake Lining : with lining
Supplementary Article/Supplementary Info : with wheel brake cylinder
Inner brake drum diameter [mm] : 180
Width [mm] : 30
Piston Diameter [mm] : 17.8
Fitting Position : Rear Axle
  • Vendor BOSCH
  • SKU 0204114586
  • Barcode 4047026851427
  • BORG & BECK : BBS1018K
  • BREMBO : K 24 056
  • HELLA : 8DB 355 004-441
  • MEYLE : 714 533 0014
  • MINTEX : MSP156
  • TEXTAR : 84048800
  • VALEO : 554718
  • BOSCH : KS586
