BOSCH

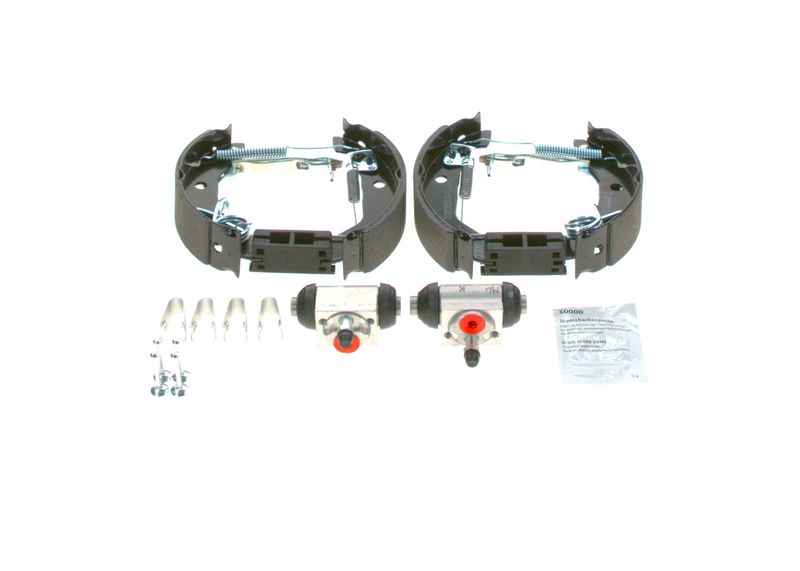

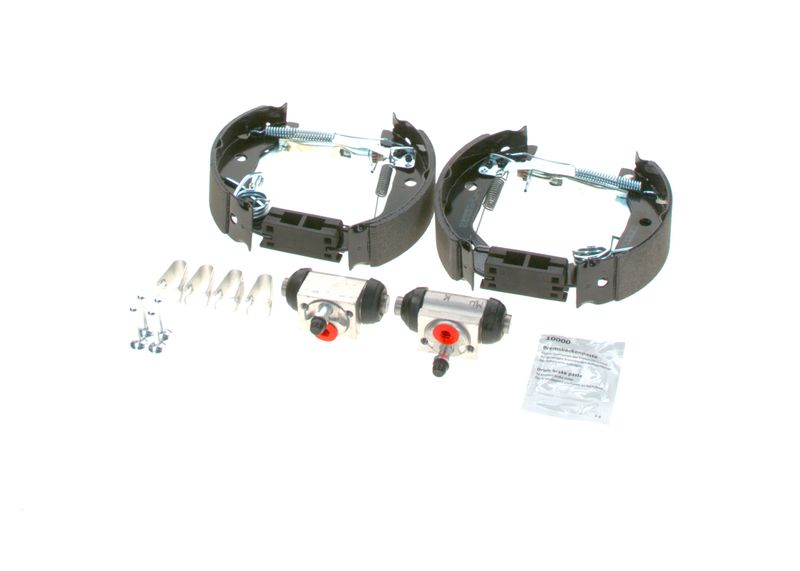

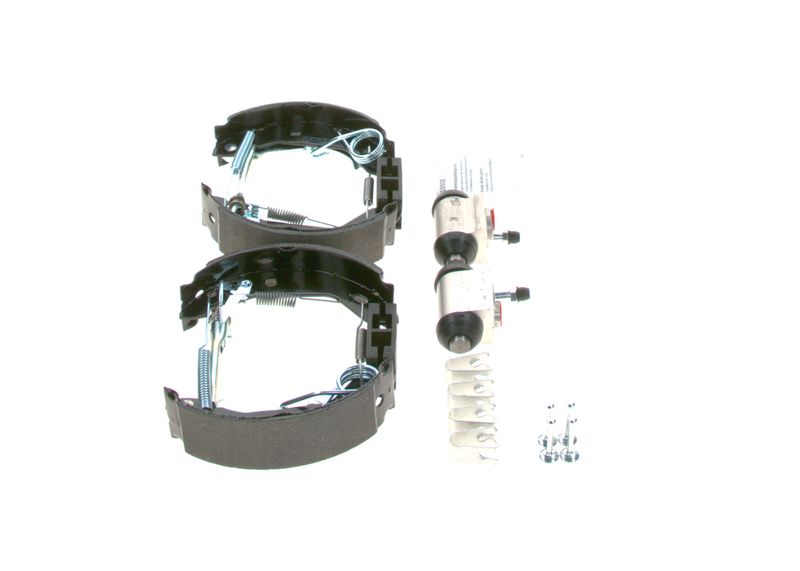

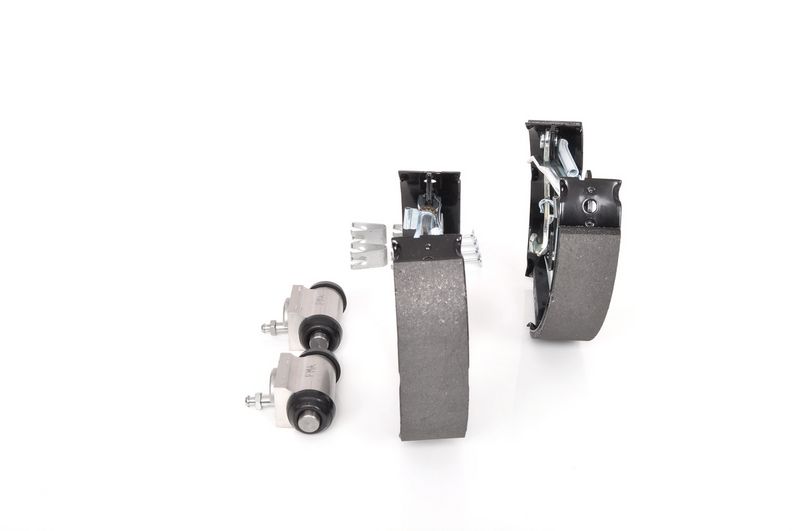

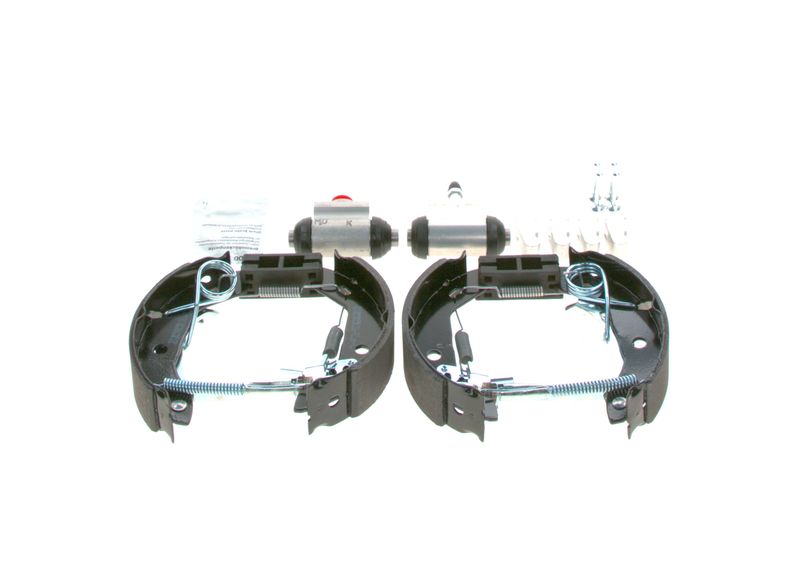

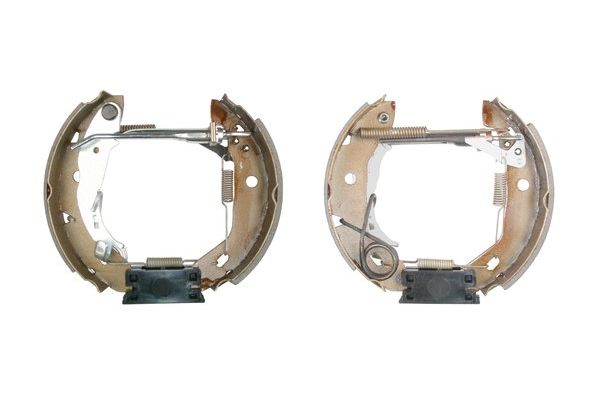

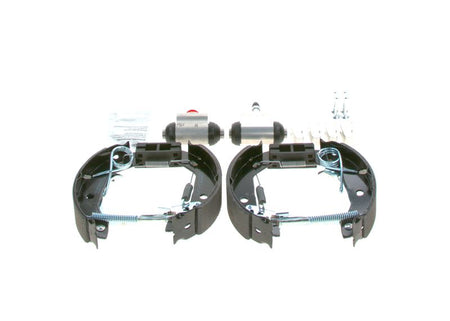

Bosch 0204114591 Brake Shoe Set

SKU: 0204114591

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£70.77 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

A-CLASS (W168)

Description	Cylinder Capacity	Horse Power	Year
A 140 (168.031, 168.131)	1397 CCM	82 HP	07/1997 - 08/2004
A 160 (168.033, 168.133)	1598 CCM	102 HP	07/1997 - 08/2004
A 160 CDI (168.007)	1689 CCM	60 HP	07/1998 - 02/2001
A 170 CDI (168.008)	1689 CCM	90 HP	07/1998 - 02/2001
A 160 CDI (168.006)	1689 CCM	75 HP	02/2001 - 08/2004
A 170 CDI (168.009, 168.109)	1689 CCM	95 HP	02/2001 - 08/2004
A 140 (168.031, 168.131)	1598 CCM	82 HP	01/2001 - 08/2004

The Bosch 0204114591 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 180 mm inner brake drum diameter, 17.8 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 180

Width [mm] : 40

Piston Diameter [mm] : 17.8

Construction Year from : 08.1998

Fitting Position : Rear Axle

Vehicle Identification Number (VIN) from : J 078974

Construction Year from : 03.2001

Bosch 0204114591 Brake Shoe Set
