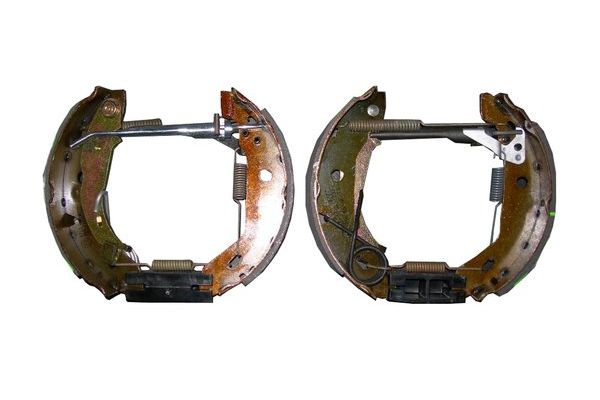

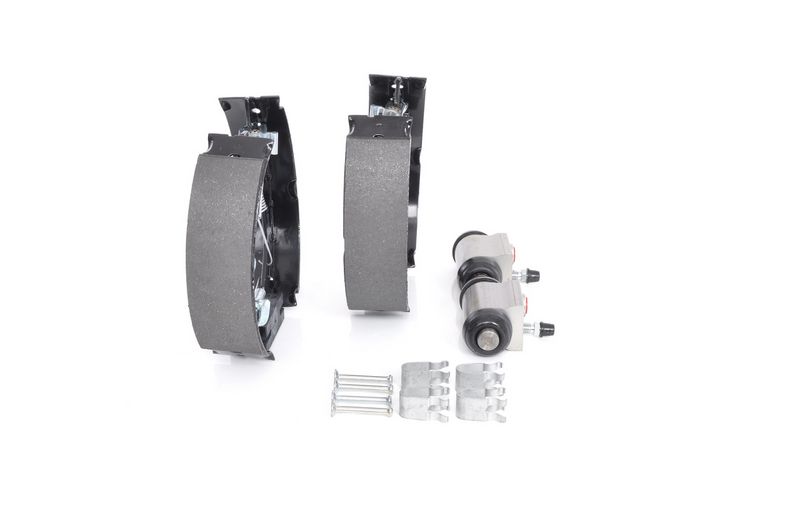

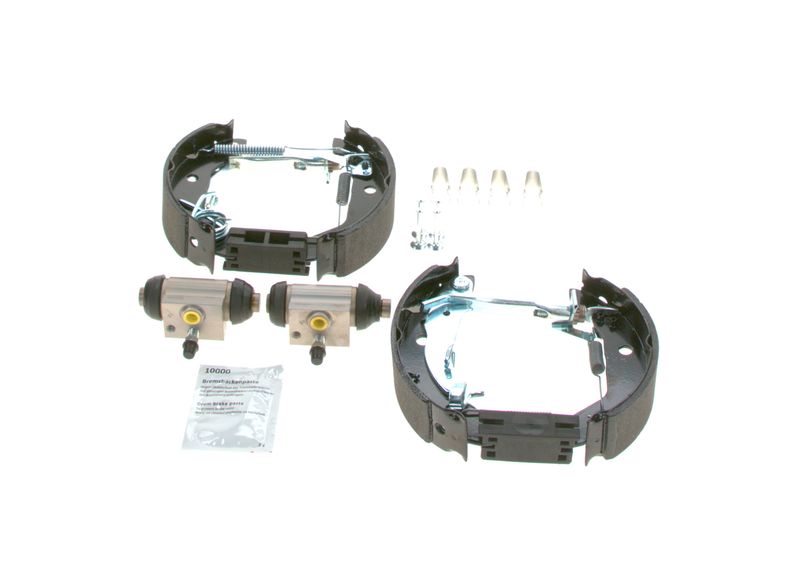

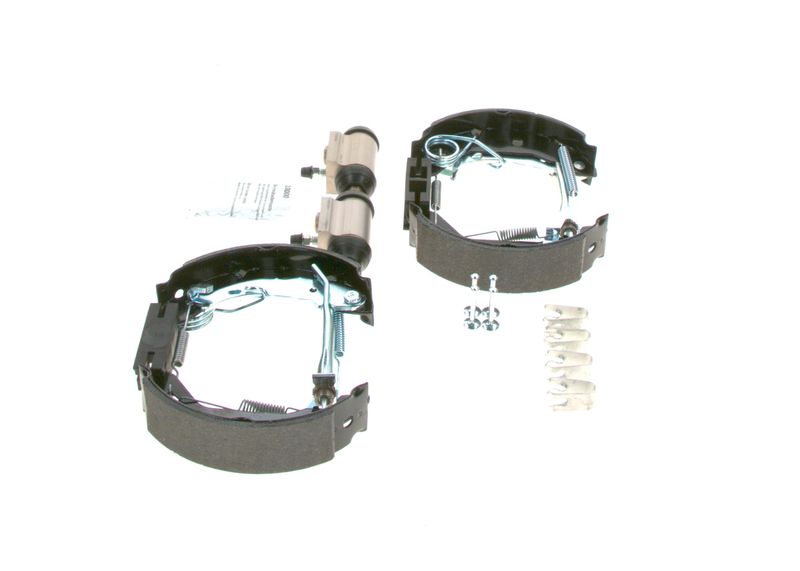

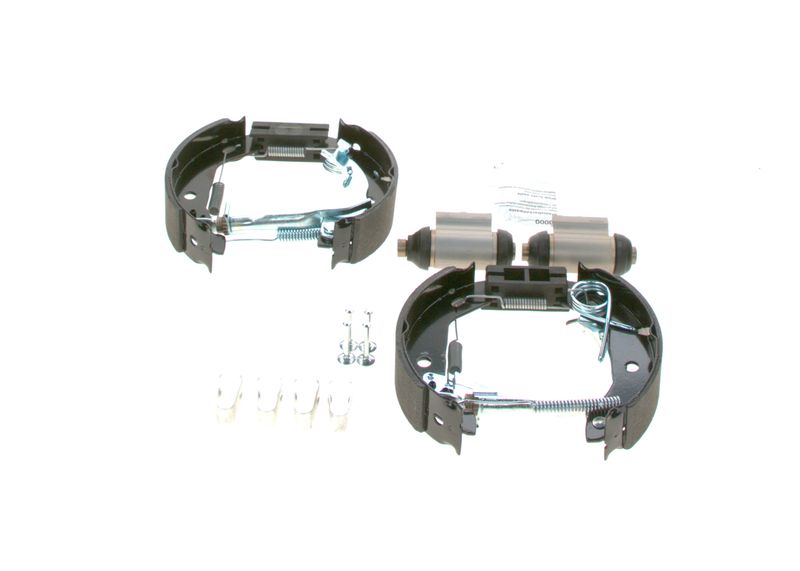

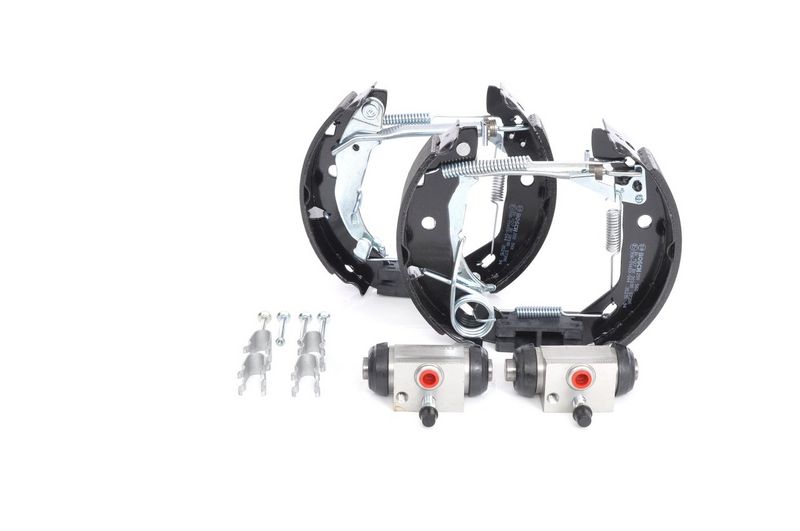

Bosch 0204114607 Brake Shoe Set

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0204114607

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£99.19 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ

A-CLASS (W168)

Description	Cylinder Capacity	Horse Power	Year
A 140 (168.031, 168.131)	1397 CCM	82 HP	07/1997 - 08/2004
A 160 (168.033, 168.133)	1598 CCM	102 HP	07/1997 - 08/2004
A 170 CDI (168.008)	1689 CCM	90 HP	07/1998 - 02/2001

The Bosch 0204114607 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 180 mm inner brake drum diameter, 19 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 180

Width [mm] : 40

Piston Diameter [mm] : 19

Construction Year from : 10.1997

Construction Year to : 07.1998

Fitting Position : Rear Axle
