Bosch 0204114613 Brake Shoe Set - 1
Bosch 0204114613 Brake Shoe Set - 2
Bosch 0204114613 Brake Shoe Set - 3
Bosch 0204114613 Brake Shoe Set - 4
Bosch 0204114613 Brake Shoe Set - 5
Bosch 0204114613 Brake Shoe Set - 6
Bosch 0204114613 Brake Shoe Set - 1
Bosch 0204114613 Brake Shoe Set - 2
Bosch 0204114613 Brake Shoe Set - 3
Bosch 0204114613 Brake Shoe Set - 4
Bosch 0204114613 Brake Shoe Set - 5
Bosch 0204114613 Brake Shoe Set - 6
BOSCH

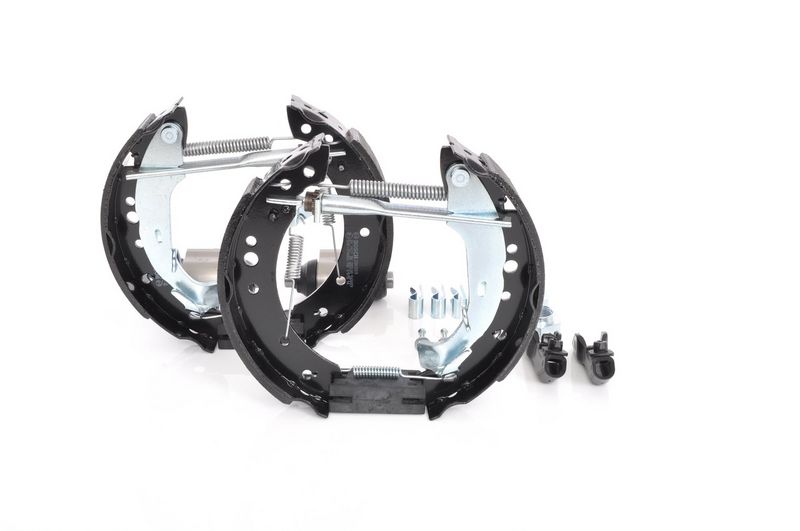

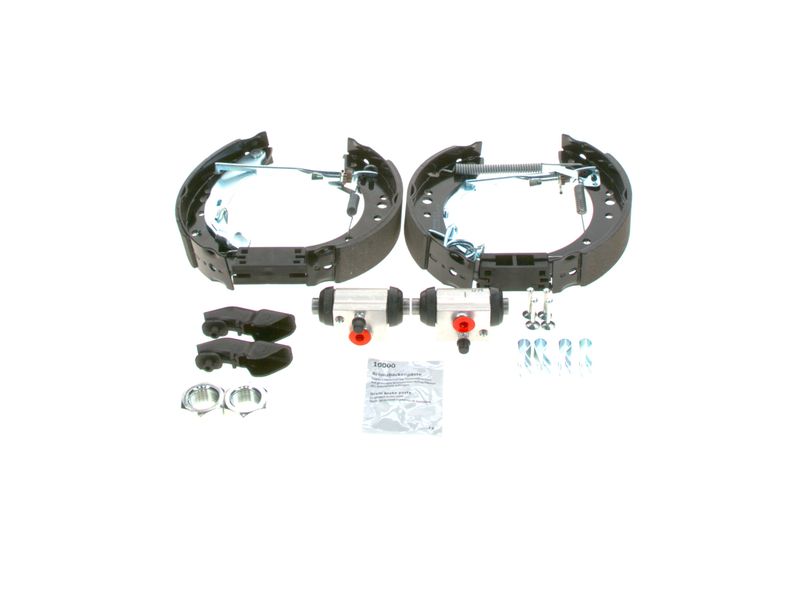

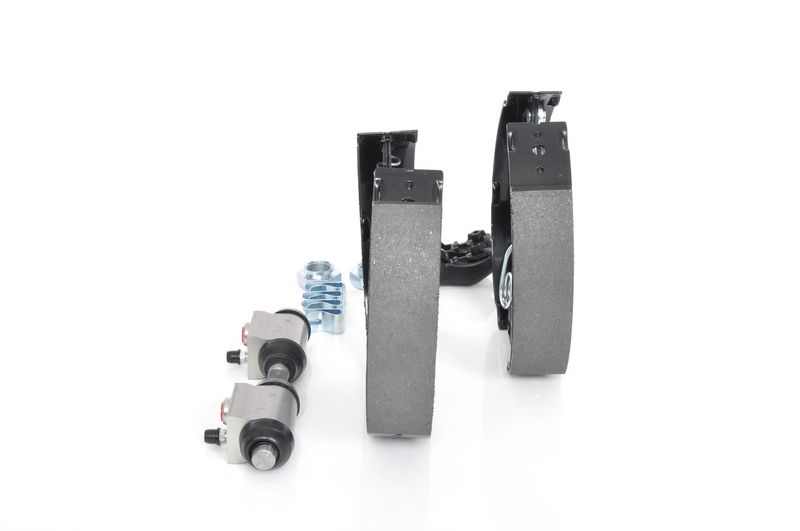

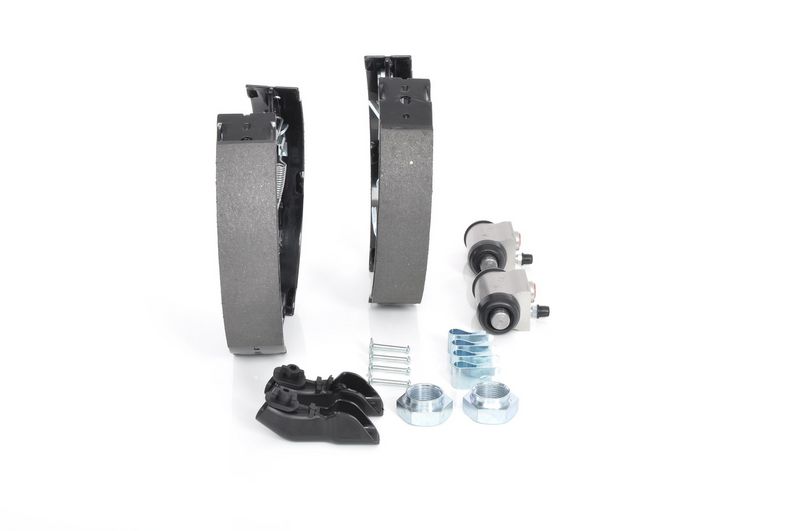

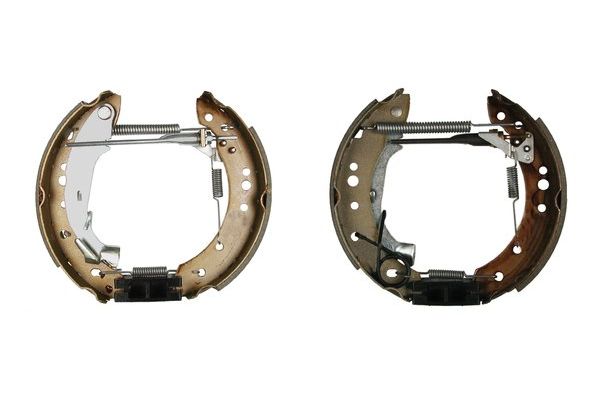

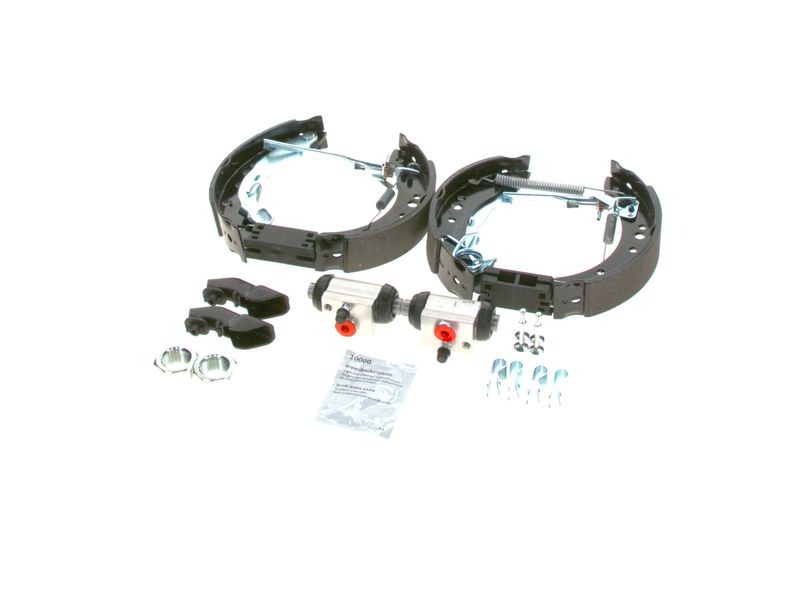

Bosch 0204114613 Brake Shoe Set

SKU: 0204114613
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£77.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C2 (JM_)
Description Cylinder Capacity Horse Power Year
1.1 1124 CCM 60 HP 09/2003 - 09/2012
1.4 1360 CCM 73 HP 09/2003 - 12/2009
1.4 HDi 1398 CCM 68 HP 07/2003 - 12/2009
1.4 16V 1360 CCM 90 HP 04/2005 - 12/2009
1.4 1360 CCM 75 HP 10/2006 - 12/2009
1.4 HDi 1398 CCM 69 HP 09/2003 - 04/2005
C2 ENTERPRISE (JG_)
Description Cylinder Capacity Horse Power Year
1.4 HDi 1398 CCM 68 HP 09/2006 - 12/2009
1.4 HDi 1398 CCM 69 HP 11/2003 - 04/2005
1.1 1124 CCM 60 HP 11/2003 - 12/2009
C3 I (FC_, FN_)
Description Cylinder Capacity Horse Power Year
1.4 HDi 1398 CCM 70 HP 04/2002 - 02/2011
1.1 i 1124 CCM 60 HP 08/2002 - 12/2010
1.4 HDi 1398 CCM 68 HP 02/2002 - 12/2009
1.4 i Bivalent 1360 CCM 73 HP 02/2002 - 12/2009
1.6 16V 1587 CCM 109 HP 02/2002 - 08/2010
1.4 16V HDi 1398 CCM 90 HP 02/2002 - 06/2008
1.4 16V 1360 CCM 88 HP 12/2003 - 08/2010
1.6 16V HDi 1560 CCM 90 HP 10/2005 - 12/2009
1.4 i 1360 CCM 73 HP 04/2002 - 12/2006
1.4 HDi 1398 CCM 75 HP 05/2005 - 12/2009
C3 Pluriel (HB_)
Description Cylinder Capacity Horse Power Year
1.4 1360 CCM 73 HP From 05/2003
1.4 HDi 1398 CCM 68 HP From 04/2004
1.4 1360 CCM 75 HP From 07/2003
PEUGEOT
1007 (KM_)
Description Cylinder Capacity Horse Power Year
1.4 1360 CCM 75 HP From 04/2005
1.4 HDi 1398 CCM 68 HP From 04/2005
1.4 16V 1360 CCM 88 HP From 10/2005

The Bosch 0204114613 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 203.2 mm inner brake drum diameter, 20.64 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Mounting Type : Pre-assembled
Adjustment : with automatic adjustment
Supplementary Article/Supplementary Info : with accessories
Brake Lining : with lining
Supplementary Article/Supplementary Info : with wheel brake cylinder
Inner brake drum diameter [mm] : 203.2
Width [mm] : 38
Piston Diameter [mm] : 20.64
Engine Code : HFX (TU1JP)
Construction Year to : 12.2009
Fitting Position : Rear Axle
Braking/Driving Dynamics : for vehicles with ABS
Manufacturer Restriction : LUCAS
  • Vendor BOSCH
  • SKU 0204114613
  • Barcode 4047026850925
  • CITROËN : 4242 02 4242 18 4242 33
  • PEUGEOT : 4242 02 4242 18 4242 33
  • BORG & BECK : BBD4706
  • BORG & BECK : BBS1071K
  • BREMBO : K 61 080
  • DELPHI : KP1078
  • DELPHI : LAJ1003
  • DELPHI : LS1921
  • FEBI BILSTEIN : 37526
  • HELLA : 8DB 355 004-731
  • HELLA : 8DB 355 004-741
  • MEYLE : 11-14 533 0028
  • MINTEX : MSP220
  • TEXTAR : 84059801
  • TRW : GSK1063
  • VALEO : 554759
  • BOSCH : KS613
