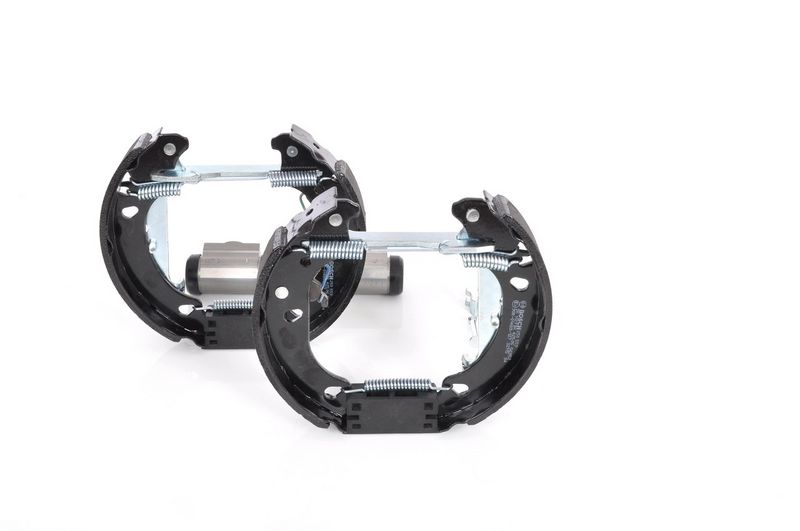

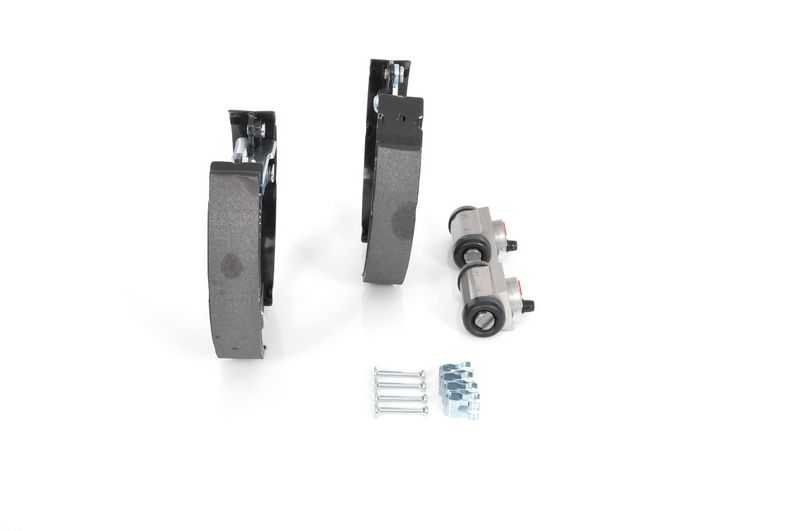

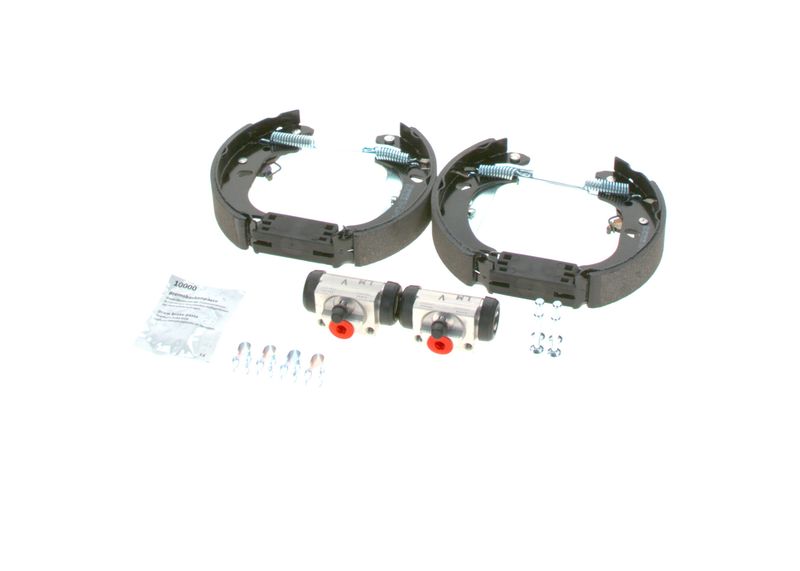

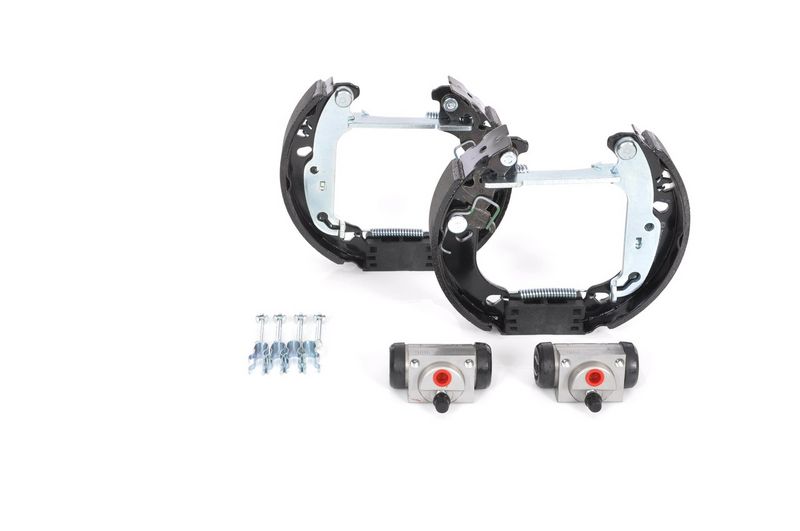

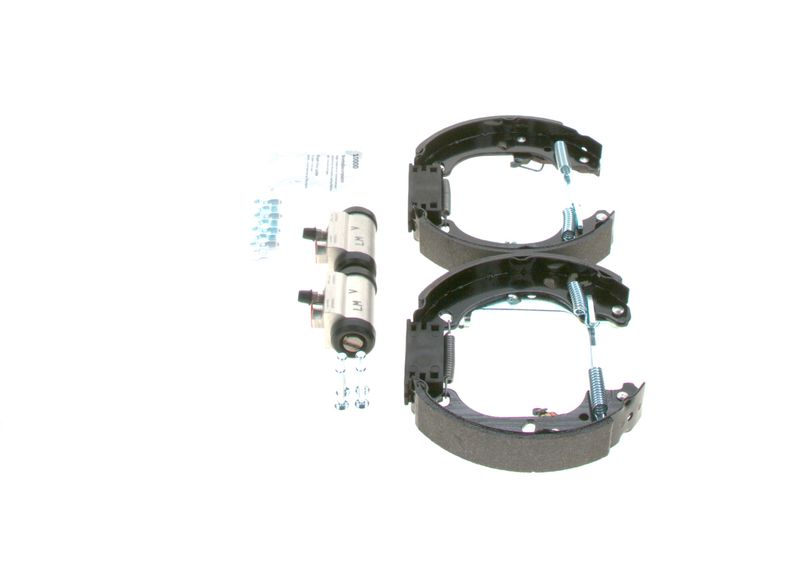

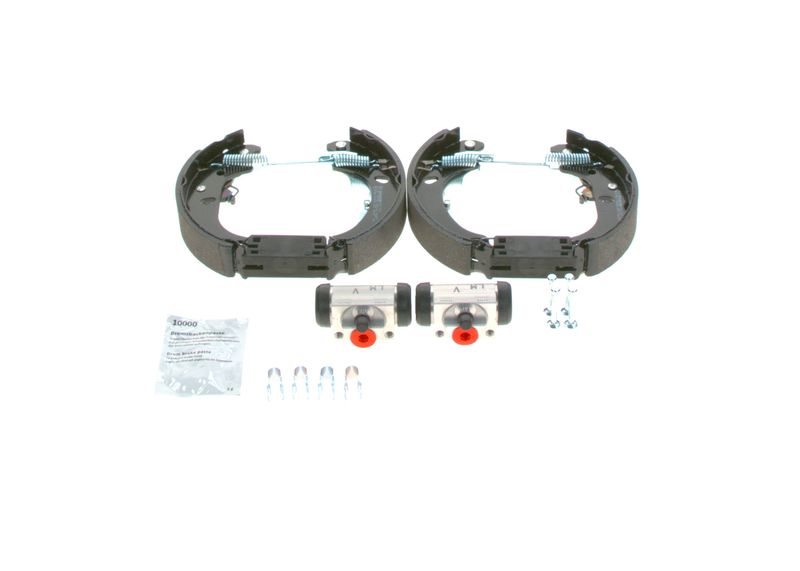

Bosch 0204114620 Brake Shoe Set
Your selected vehicle
Regular price
£90.40
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0204114620 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 180 mm inner brake drum diameter, 19.05 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Shoe Set
Mounting Type :
Pre-assembled
Adjustment :
with automatic adjustment
Supplementary Article/Supplementary Info :
with accessories
Brake Lining :
with lining
Supplementary Article/Supplementary Info :
with wheel brake cylinder
Inner brake drum diameter [mm] :
180
Width [mm] :
32
Piston Diameter [mm] :
19.05
Manufacturer Restriction :
Lockheed System
Fitting Position :
Rear Axle
- Vendor BOSCH
- SKU 0204114620
- BORG & BECK : BBS1038K
- BREMBO : K 24 058
- HELLA : 8DB 355 004-811
- MINTEX : MSP234
- TEXTAR : 84060000
- TRW : GSK1691
- TRW : GSK1692
- VALEO : 554826
- BOSCH : KS620
