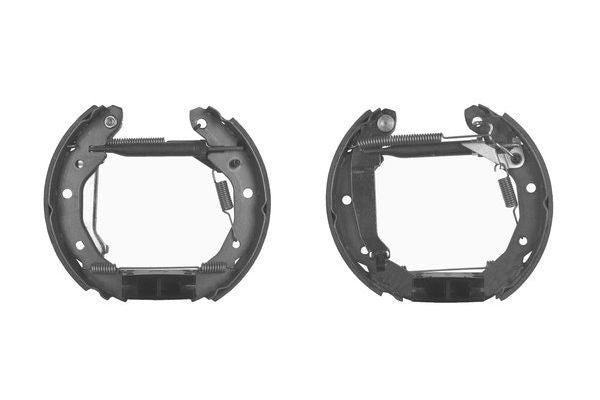

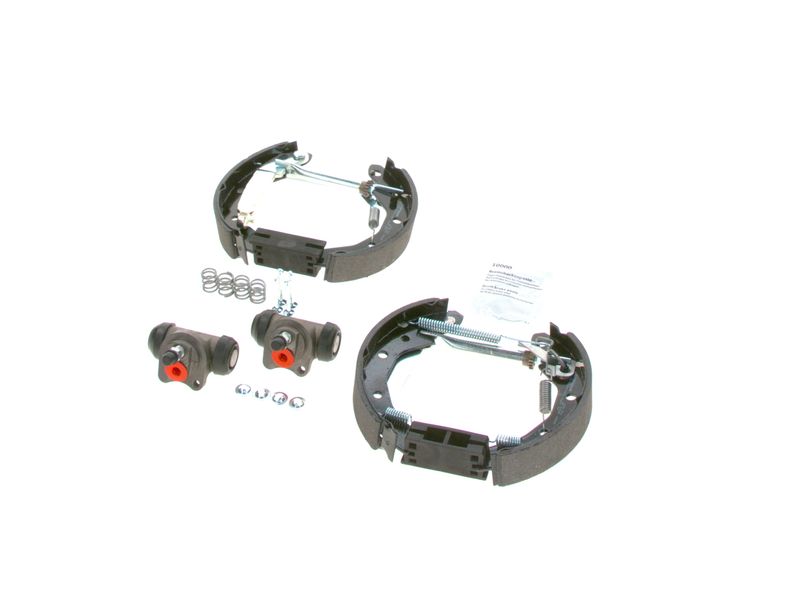

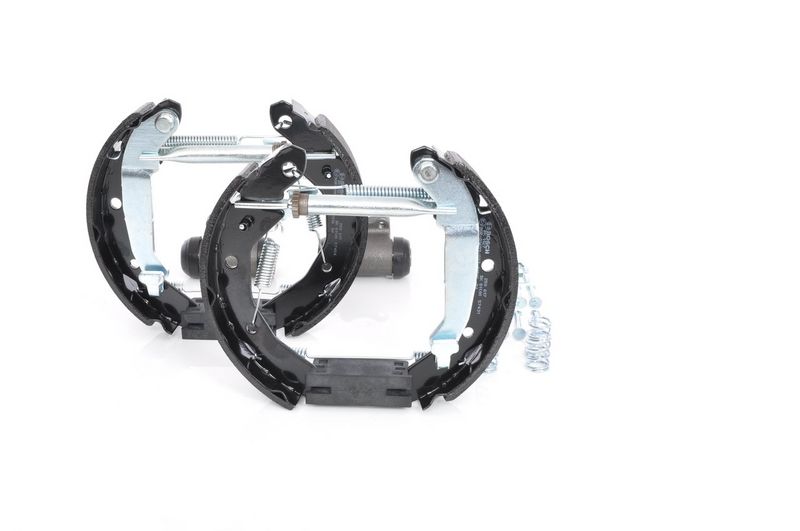

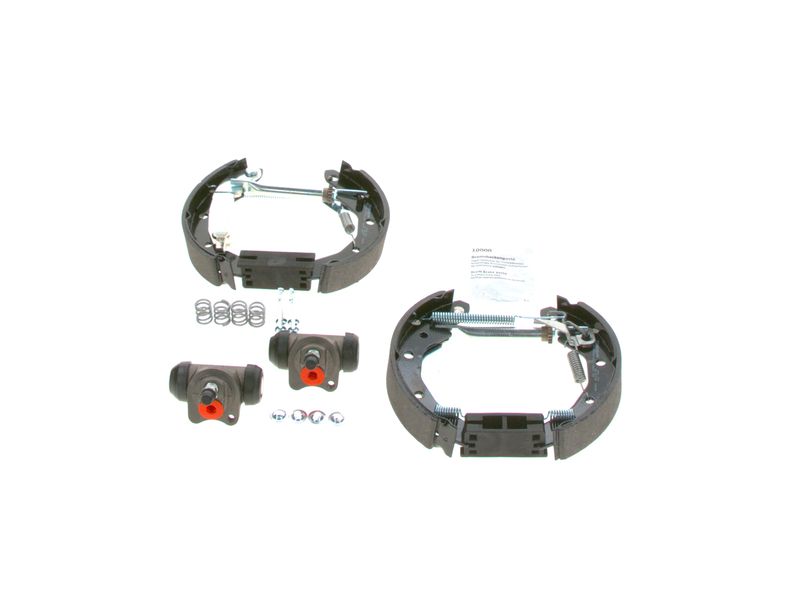

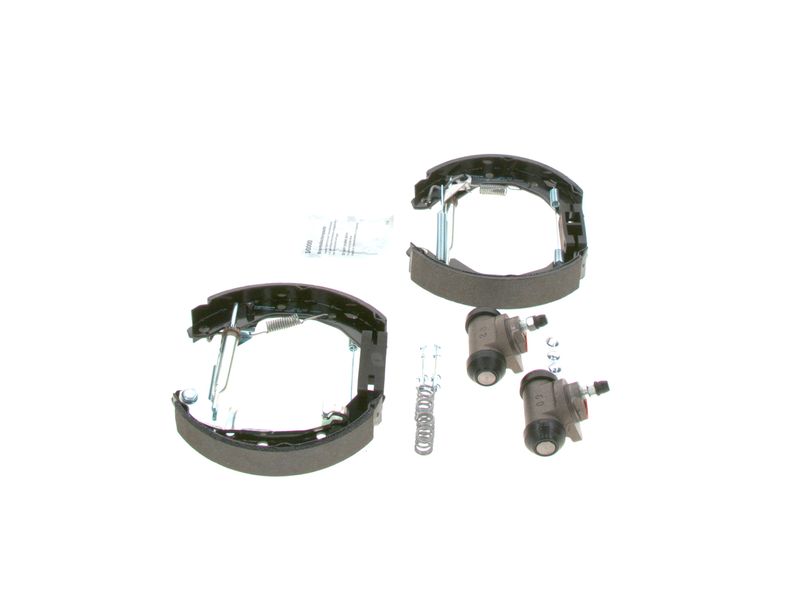

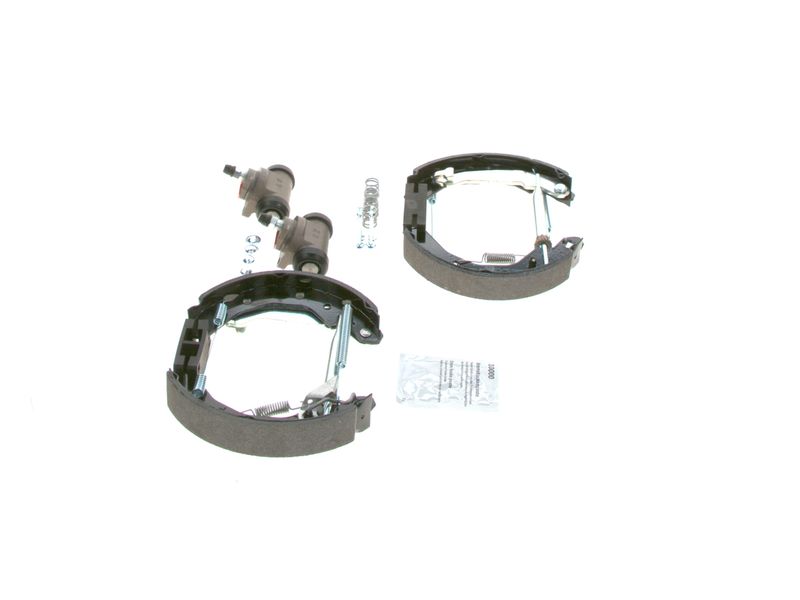

Bosch 0204114629 Brake Shoe Set
Your selected vehicle
Regular price
£63.72
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0204114629 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 180 mm inner brake drum diameter, 17.46 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Shoe Set
Mounting Type :
Pre-assembled
Adjustment :
with automatic adjustment
Supplementary Article/Supplementary Info :
with accessories
Brake Lining :
with lining
Supplementary Article/Supplementary Info :
with wheel brake cylinder
Inner brake drum diameter [mm] :
180
Width [mm] :
31
Piston Diameter [mm] :
17.46
Engine Code :
LQ2(49CUL3)
Construction Year to :
12.2010
Fitting Position :
Rear Axle
- Vendor BOSCH
- SKU 0204114629
- BREMBO : K 15 001
- HELLA : 8DB 355 022-661
- MINTEX : MSK266
- MINTEX : MSP316
- TEXTAR : 83054000
- TEXTAR : 84054000
- TRW : GSK2603
- VALEO : 554870
- BOSCH : KS629
