BOSCH

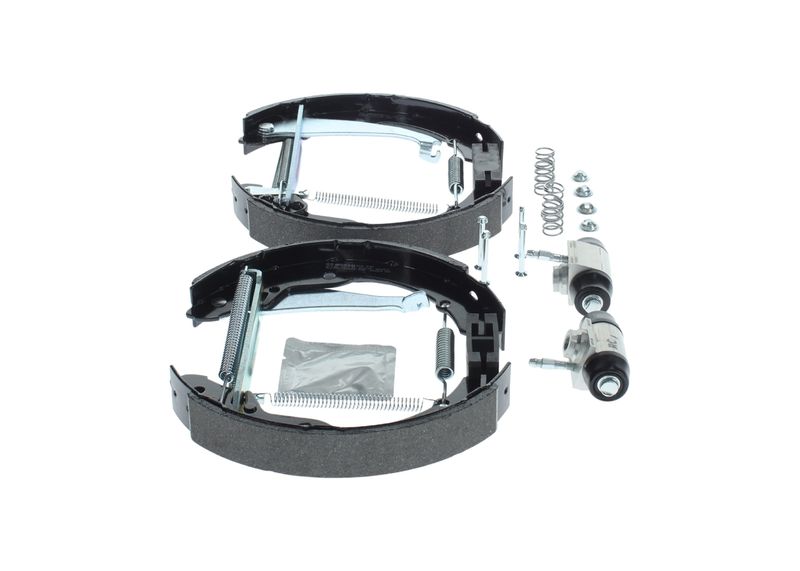

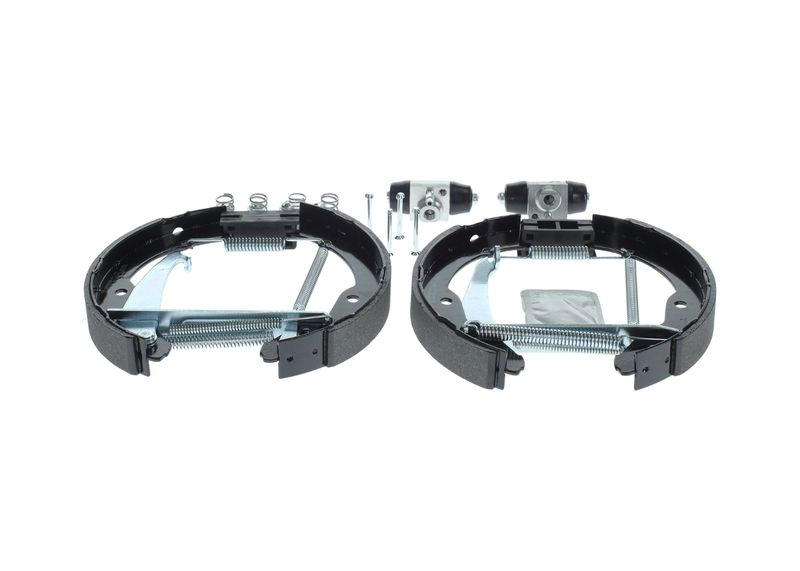

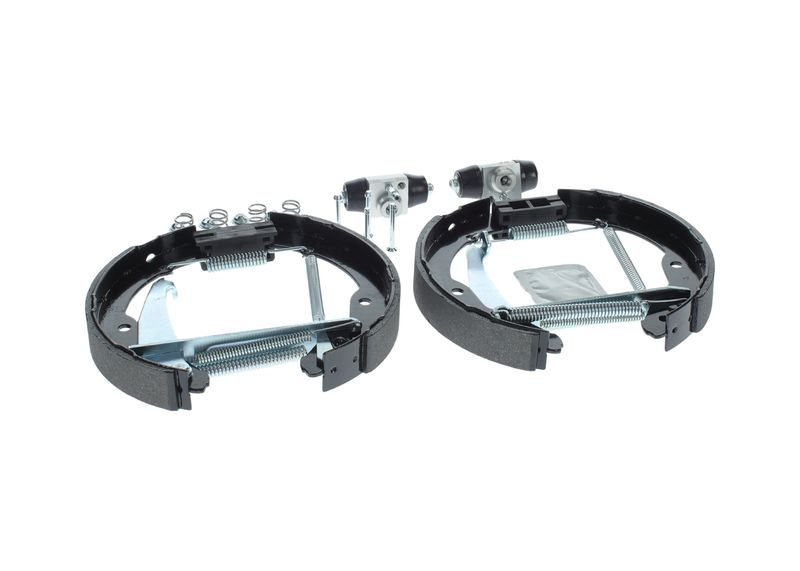

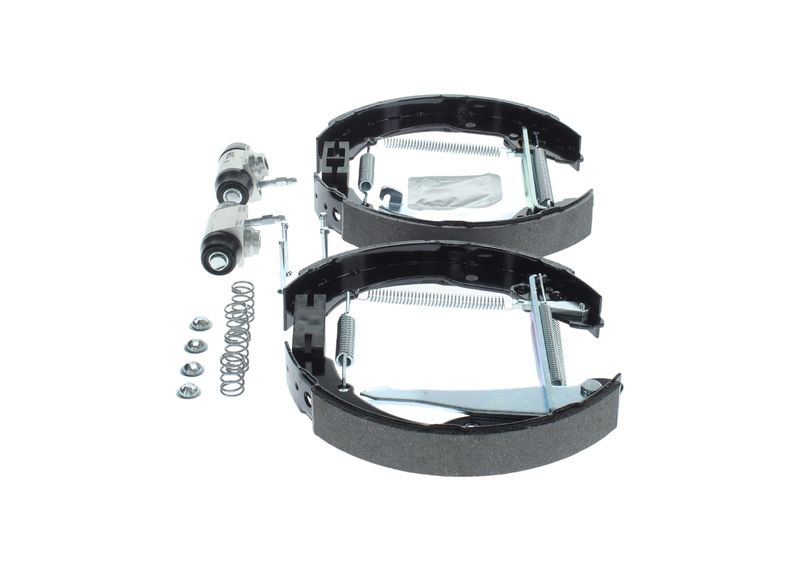

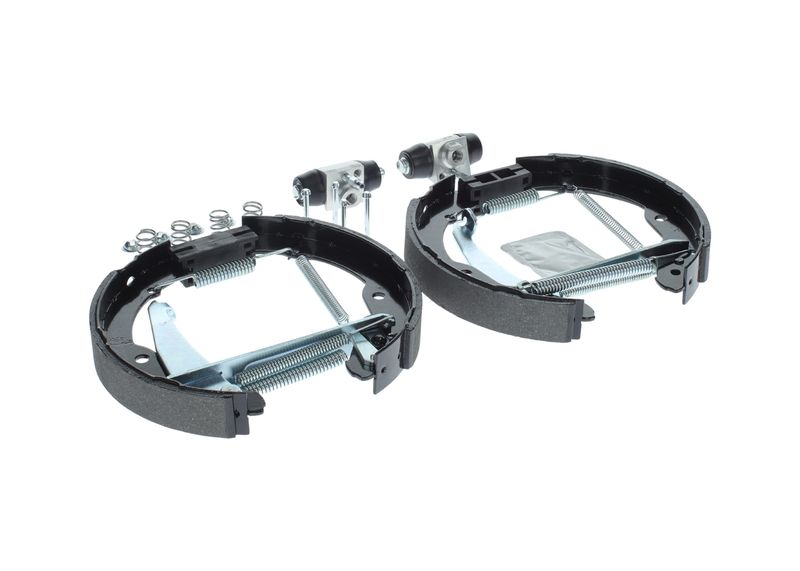

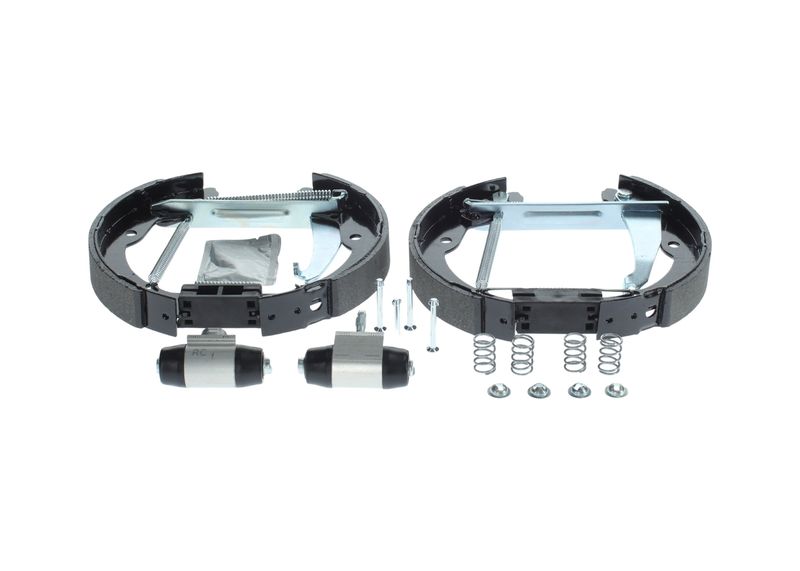

Bosch 0204114635 Brake Shoe Set

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0204114635

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£68.18 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SEAT
INCA (6K9)
Description Cylinder Capacity Horse Power Year
1.4 i 1389 CCM 60 HP 11/1995 - 06/2003
1.9 D 1896 CCM 64 HP 11/1995 - 06/2003
1.9 SDI 1896 CCM 64 HP 11/1995 - 06/2003
1.7 D 1715 CCM 57 HP 09/1996 - 06/2003
1.4 16V 1390 CCM 75 HP 04/2000 - 06/2003
1.6 i 1598 CCM 75 HP 06/1997 - 09/2000
VW
CADDY II Box Body/MPV (9K9A)
Description Cylinder Capacity Horse Power Year
60 1.4 1390 CCM 60 HP 11/1995 - 01/2004
1.9 SDI 1896 CCM 64 HP 11/1995 - 01/2004
75 1.6 1598 CCM 75 HP 11/1995 - 09/2000
1.9 TDI 1896 CCM 90 HP 09/1996 - 01/2004
1.9 D 1896 CCM 64 HP 11/1995 - 01/2004
1.4 1390 CCM 75 HP 08/2000 - 01/2004
CADDY II MPV (9K9B)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 60 HP 11/1995 - 06/2003
1.4 16V 1390 CCM 75 HP 08/2000 - 01/2004
1.6 1598 CCM 75 HP 06/1997 - 09/2000
1.9 D 1896 CCM 64 HP 11/1995 - 01/2004
1.9 SDI 1896 CCM 64 HP 11/1995 - 01/2004
1.9 TDI 1896 CCM 90 HP 10/1996 - 01/2004

The Bosch 0204114635 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, with accessories and with wheel brake cylinder, 230 mm inner brake drum diameter, and 20.64 mm piston diameter. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Mounting Type : Pre-assembled
Adjustment : with automatic adjustment
Supplementary Article/Supplementary Info : with accessories
Brake Lining : with lining
Supplementary Article/Supplementary Info : with wheel brake cylinder
Inner brake drum diameter [mm] : 230
Width [mm] : 32
Piston Diameter [mm] : 20.64
  • Vendor BOSCH
  • SKU 0204114635
  • Barcode 4047026851137
  • SKODA : 1U0698511
  • VW : 1U0698511
  • BREMBO : K 85 046
  • HELLA : 8DB 355 004-721
  • MEYLE : 114 533 0009
  • MINTEX : MSP218
  • TEXTAR : 84052401
  • TRW : GSK1406
  • VALEO : 554731
  • BOSCH : KS635
