BOSCH

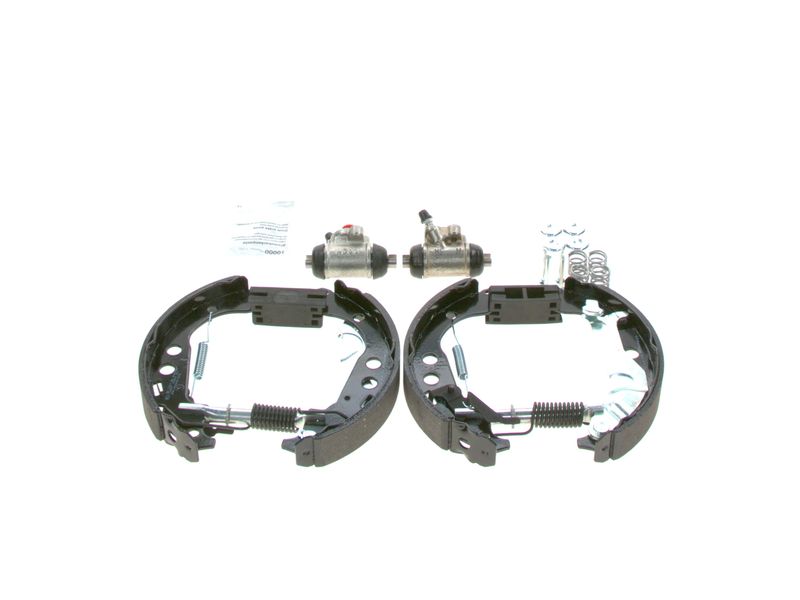

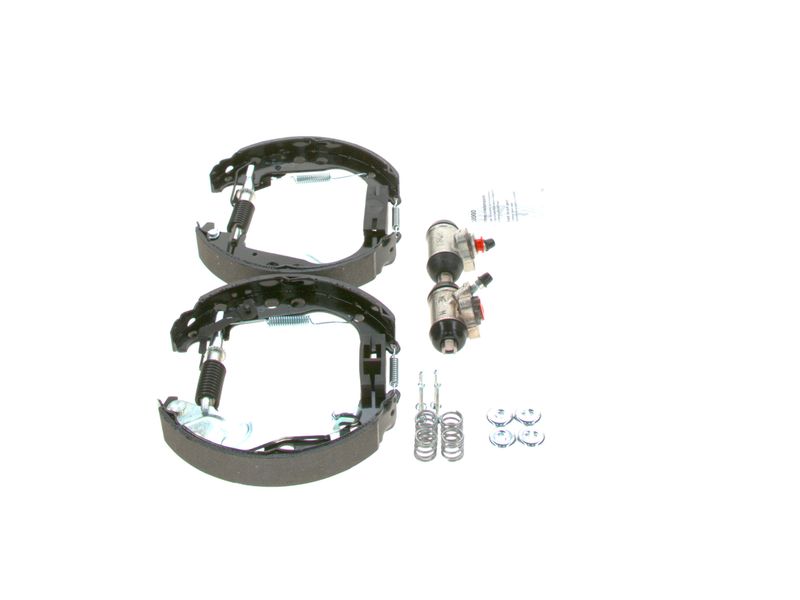

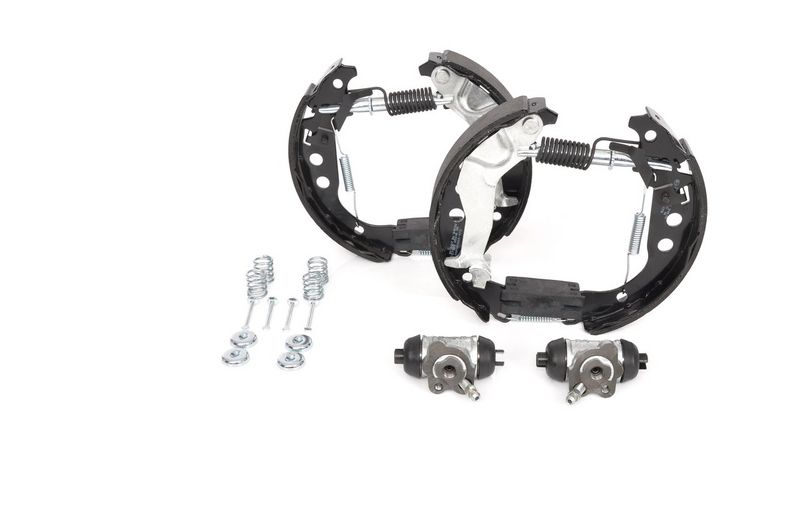

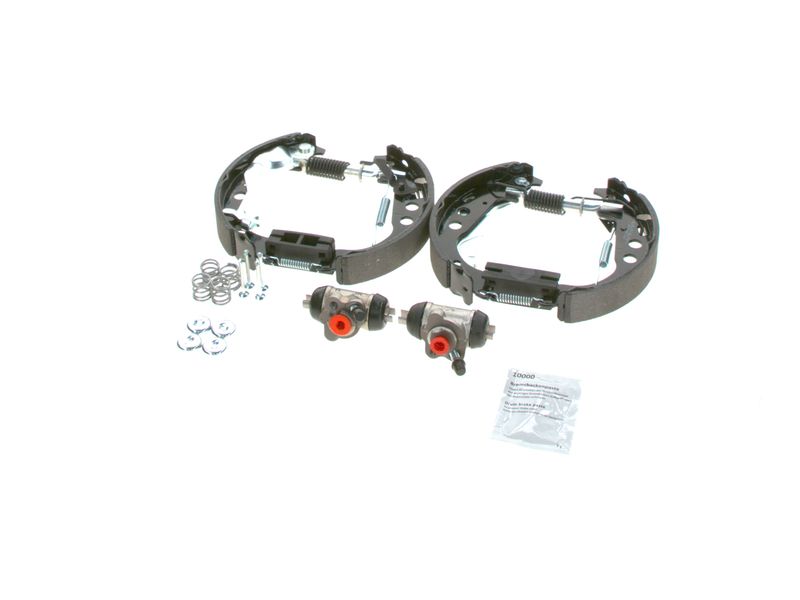

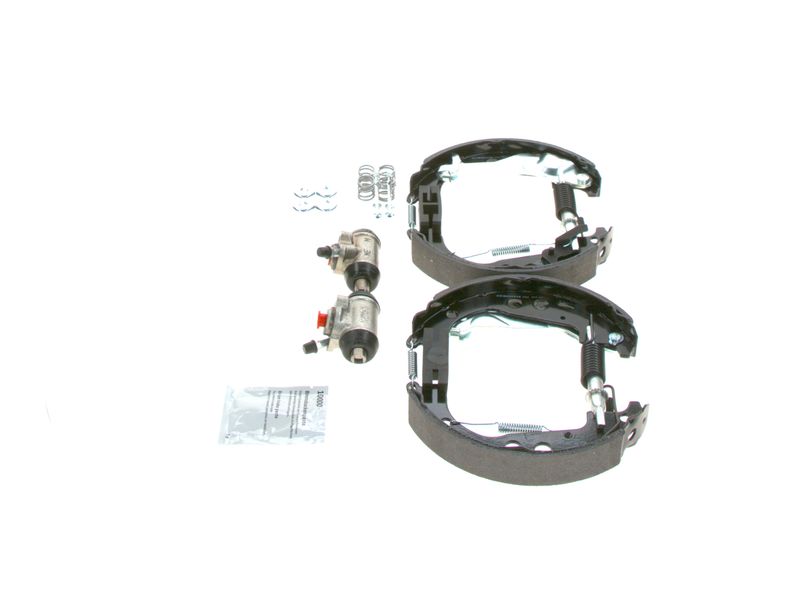

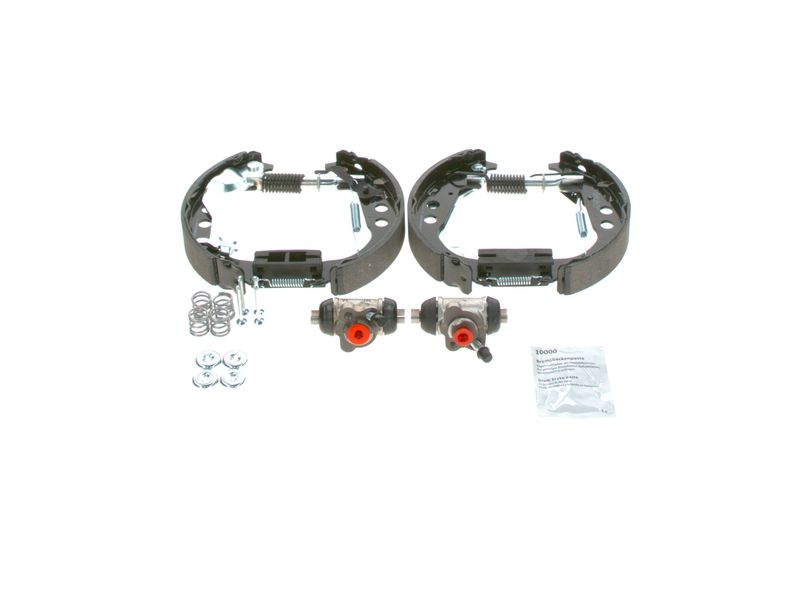

Bosch 0204114663 Brake Shoe Set

SKU: 0204114663

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£106.73 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

YARIS VERSO / FUN CARGO (_P2_)

Description	Cylinder Capacity	Horse Power	Year
1.3 (NCP20_, NCP22_, NCP20R, NCP22R)	1299 CCM	86 HP	08/1999 - 10/2002
1.5 (NCP21_)	1497 CCM	106 HP	03/2000 - 09/2005
1.4 D-4D (NLP20_, NLP22_)	1364 CCM	75 HP	09/2000 - 09/2005
1.3 (NCP20_, NCP22_, NCP20R, NCP22R)	1299 CCM	84 HP	11/2002 - 09/2005
1.5 (NCP21_)	1497 CCM	105 HP	03/2000 - 09/2005

YARIS VERSO VAN (_P2_)

Description	Cylinder Capacity	Horse Power	Year
1.3 VVTi (NCP22_)	1299 CCM	86 HP	03/2000 - 09/2005
1.4 D4d (NLP22_)	1364 CCM	75 HP	10/2001 - 09/2005

The Bosch 0204114663 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 200 mm inner brake drum diameter, 19.05 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 200

Width [mm] : 32

Piston Diameter [mm] : 19.05

Fitting Position : Rear Axle

Bosch 0204114663 Brake Shoe Set
