BOSCH

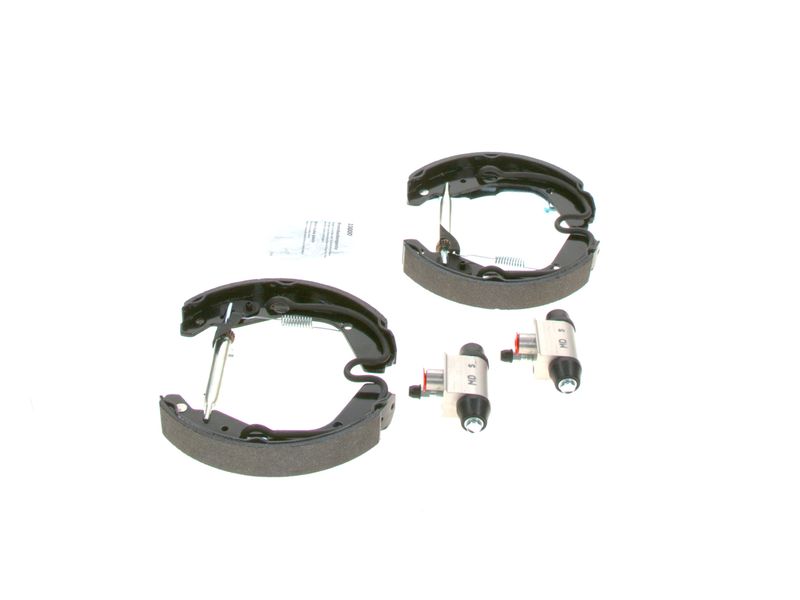

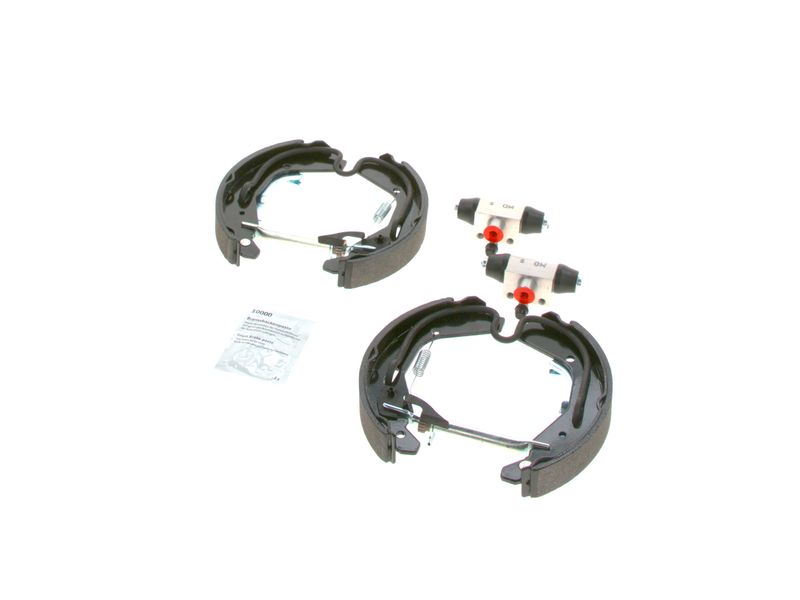

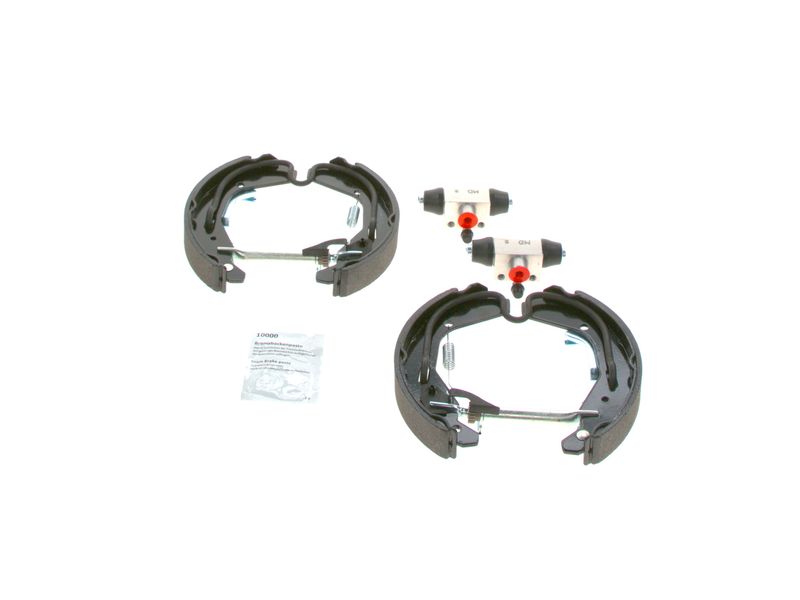

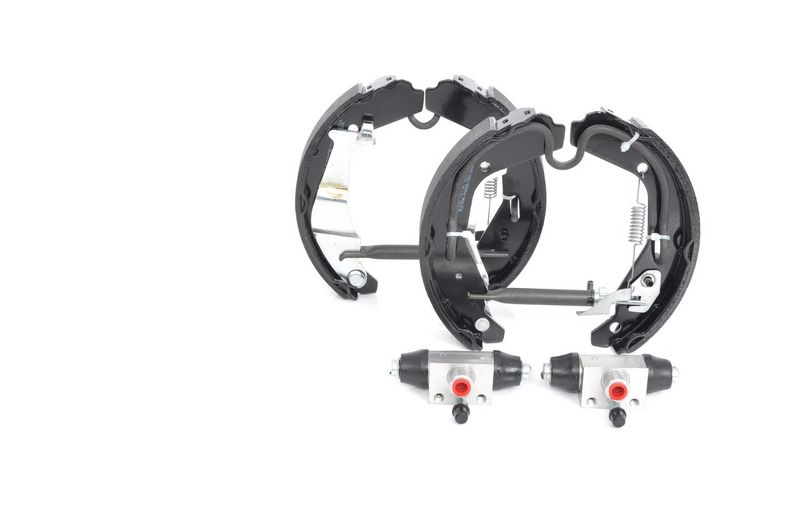

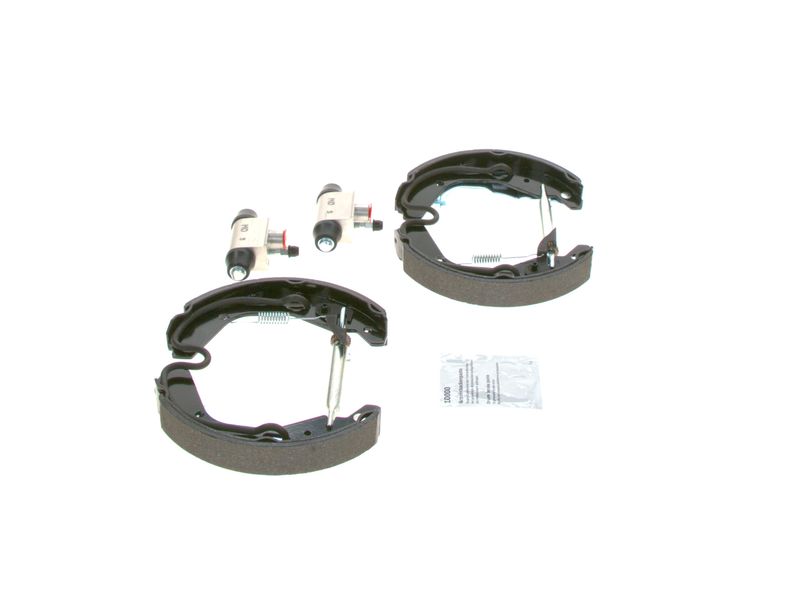

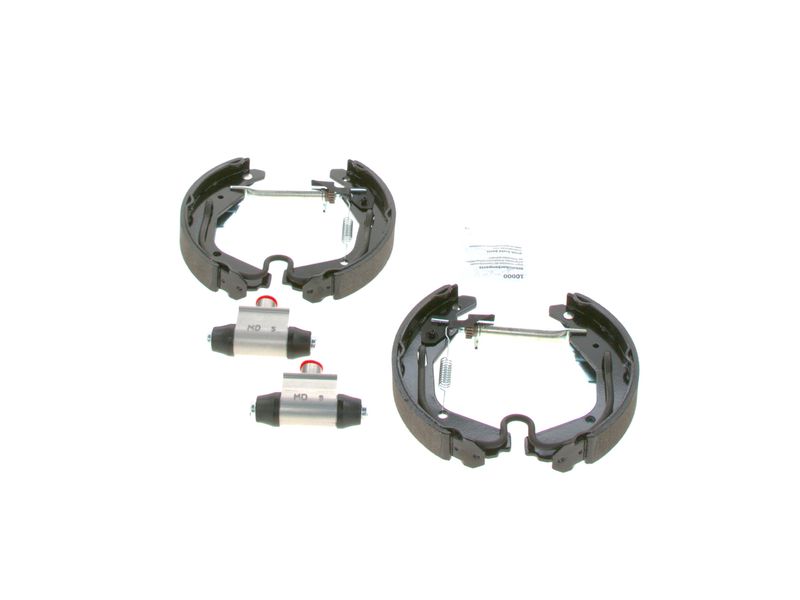

Bosch 0204114664 Brake Shoe Set

SKU: 0204114664

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£90.51 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL

AGILA A (H00)

Description	Cylinder Capacity	Horse Power	Year
1.0 12V (F68)	973 CCM	58 HP	09/2000 - 12/2007
1.2 16V (F68)	1199 CCM	75 HP	09/2000 - 12/2007
1.0 (F68)	998 CCM	60 HP	08/2003 - 12/2007
1.3 CDTI (F68)	1248 CCM	70 HP	08/2003 - 12/2007
1.2 16V Twinport (F68)	1229 CCM	80 HP	07/2004 - 12/2007

SUZUKI

IGNIS II (MH)

Description	Cylinder Capacity	Horse Power	Year
1.3 (RM413)	1328 CCM	94 HP	From 09/2003
1.5 (RM415)	1490 CCM	99 HP	From 09/2003
1.5 4x4 (RM415)	1490 CCM	99 HP	From 09/2003
1.3 DDiS (RM413D)	1248 CCM	70 HP	From 09/2003
1.3 4x4 (RM413)	1328 CCM	94 HP	From 09/2003

WAGON R+ (MA)

Description	Cylinder Capacity	Horse Power	Year
1.3 (RB413)	1298 CCM	76 HP	05/2000 - 12/2004
1.3 4WD (RB413)	1298 CCM	76 HP	From 10/2001
1.3 (RB413)	1328 CCM	94 HP	09/2003 - 08/2006
1.3 DDiS (RB413D)	1248 CCM	70 HP	From 09/2003
1.3 4WD (RB413)	1328 CCM	94 HP	From 09/2003
1.2 (RB 412)	1229 CCM	80 HP	01/2005 - 12/2008

WAGON R (MH21, MH22)

Description	Cylinder Capacity	Horse Power	Year
1.2	1229 CCM	80 HP	06/2004 - 08/2005
1.3 (RB413)	1328 CCM	88 HP	09/2003 - 12/2010

VAUXHALL

AGILA Mk I (A) (H00)

Description	Cylinder Capacity	Horse Power	Year
1.0 12V	973 CCM	58 HP	09/2000 - 08/2005
1.2 16V	1199 CCM	75 HP	09/2000 - 03/2008
1.0 12V	998 CCM	60 HP	02/2000 - 11/2006
1.2 16V Twinport	1229 CCM	80 HP	07/2004 - 11/2006

The Bosch 0204114664 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 200 mm inner brake drum diameter, 15.87 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 200

Width [mm] : 29

Piston Diameter [mm] : 15.87

Construction Year to : 08.2003

Fitting Position : Rear Axle

Vehicle Identification Number (VIN) from : 3G000001

Bosch 0204114664 Brake Shoe Set
