BOSCH

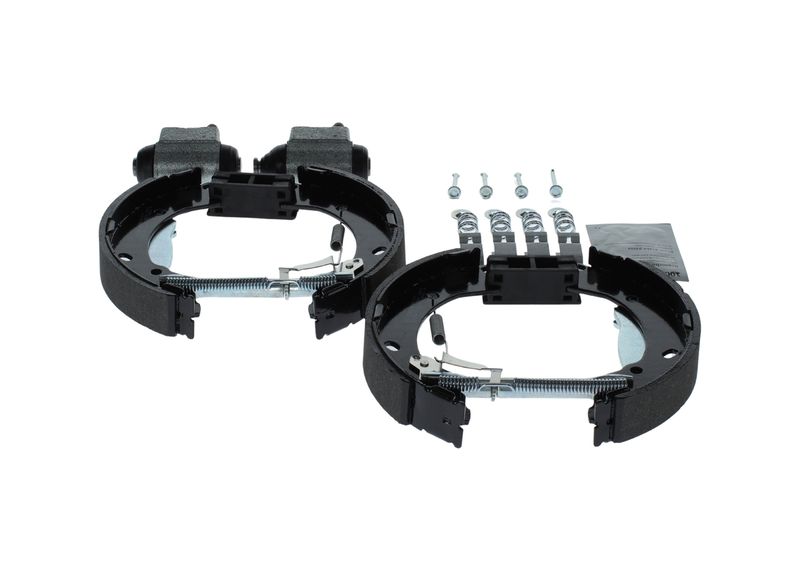

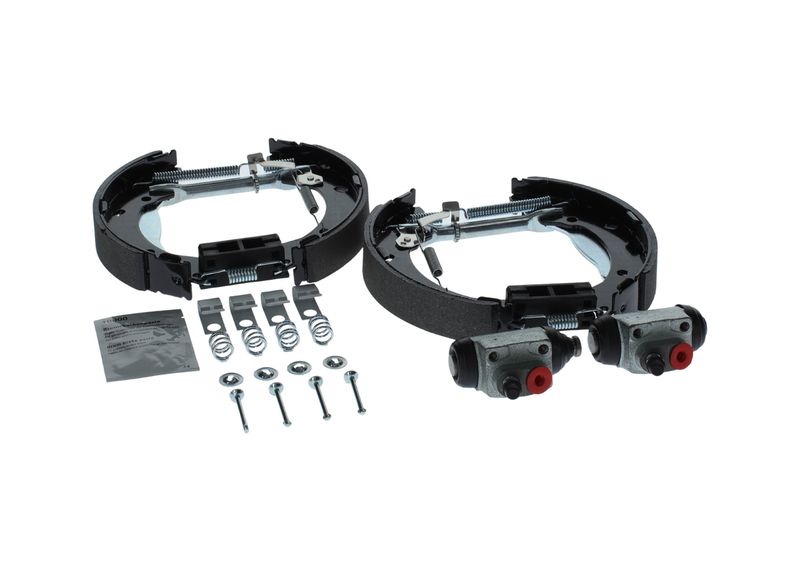

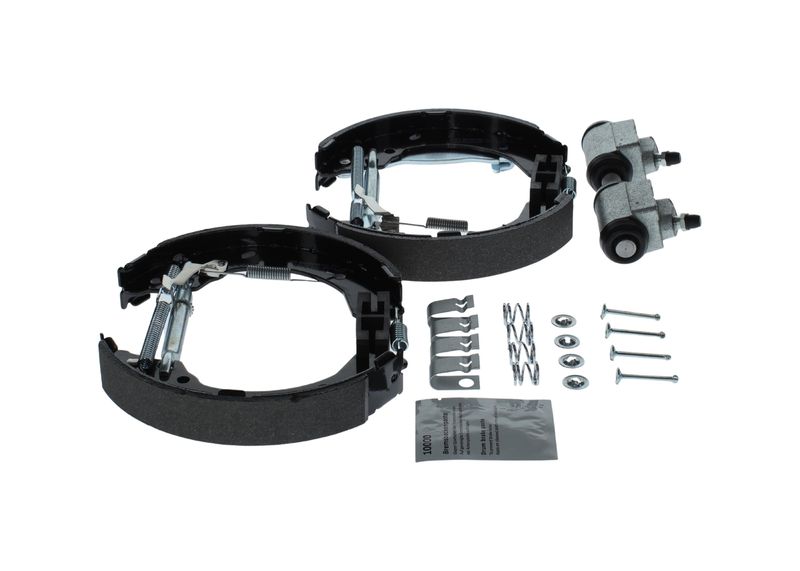

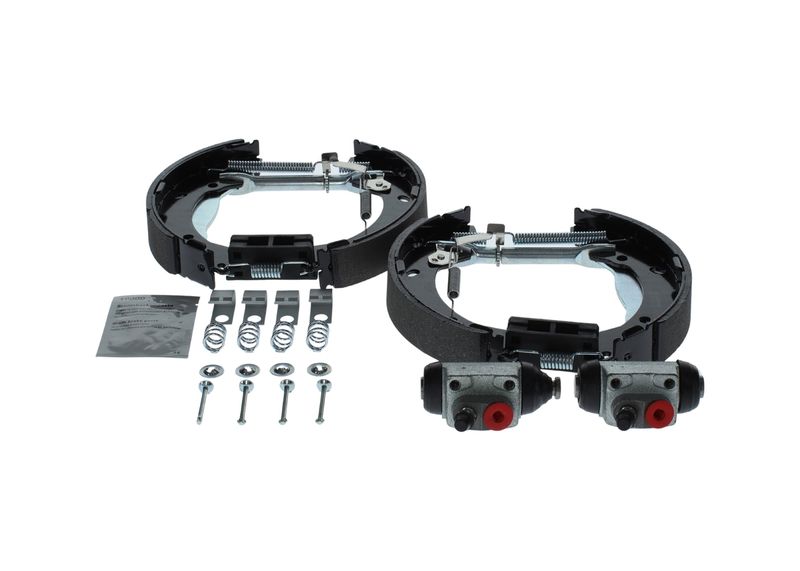

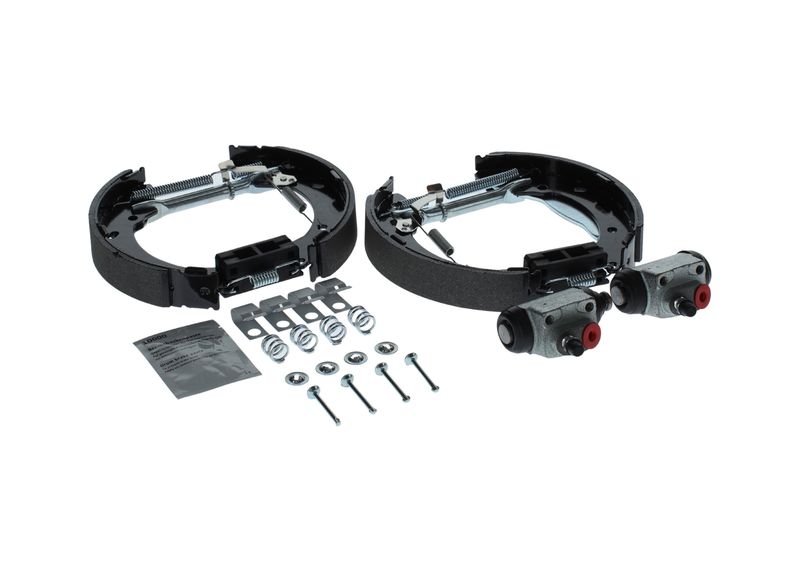

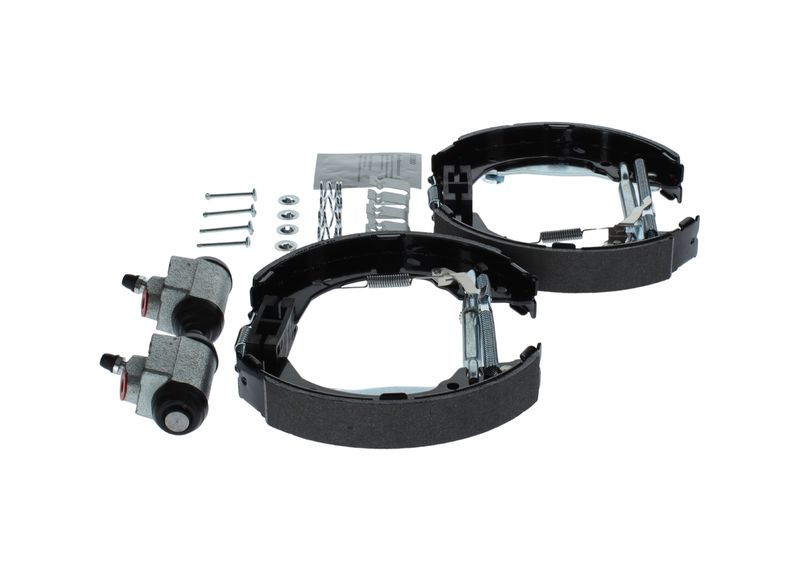

Bosch 0204114671 Brake Shoe Set

SKU: 0204114671

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£89.68 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI

GETZ (TB)

Description	Cylinder Capacity	Horse Power	Year
1.5 CRDi	1493 CCM	82 HP	03/2003 - 09/2005
1.6	1599 CCM	106 HP	09/2002 - 09/2005
1.3 i	1341 CCM	82 HP	09/2002 - 03/2004
1.1	1086 CCM	63 HP	09/2002 - 09/2005
1.3	1341 CCM	85 HP	10/2002 - 09/2005
1.1	1086 CCM	67 HP	09/2005 - 06/2009
1.4 i	1399 CCM	97 HP	08/2005 - 12/2010
1.5 CRDi	1493 CCM	88 HP	08/2005 - 06/2009
1.5 CRDi GLS	1493 CCM	110 HP	08/2005 - 06/2009
1.6	1599 CCM	106 HP	06/2005 - 06/2009

The Bosch 0204114671 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 203.2 mm inner brake drum diameter, 17.46 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 203.2

Width [mm] : 31.5

Piston Diameter [mm] : 17.46

Engine Code : G4HD

Fitting Position : Rear Axle

Bosch 0204114671 Brake Shoe Set
