BOSCH

Bosch 0204114703 Brake Shoe Set

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0204114703

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£88.51 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

CITROËN
C-ELYSEE (DD_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 72 (DDHMY0) 1199 CCM 72 HP 11/2012 - 01/2017
1.6 HDI 92 1560 CCM 92 HP From 11/2012
1.6 VTi 115 (DDNFP0, DDNFP6, DDNFP9) 1587 CCM 115 HP From 11/2012
1.2 VTi 82 1199 CCM 82 HP From 12/2014
1.5 BlueHDi 100 1499 CCM 102 HP From 05/2018
1.2 PureTech 82 (DDHMRP) 1199 CCM 83 HP From 02/2018
C3 III (SX)
Description Cylinder Capacity Horse Power Year
1.2 VTi 68 1199 CCM 68 HP From 09/2016
1.2 VTi 82 1199 CCM 82 HP From 09/2016
1.2 THP 110 (SXHNPS, SXHNZT, SXHNZ6) 1199 CCM 110 HP From 09/2016
1.6 BlueHDi 75 1560 CCM 75 HP 09/2016 - 05/2018
1.6 BlueHDi 100 1560 CCM 99 HP 09/2016 - 05/2018
1.6 VTi (SXNFPT) 1587 CCM 116 HP From 02/2017
1.5 BlueHDi 100 (SXYHYP, SXYHTU) 1499 CCM 102 HP From 05/2018
1.2 PureTech 82 1199 CCM 83 HP From 05/2018
1.2 PureTech 82 LPG 1199 CCM 83 HP From 05/2018
C3 III Van (SX_, SY_)
Description Cylinder Capacity Horse Power Year
PureTech 82 1199 CCM 83 HP From 03/2019
PureTech 110 1199 CCM 110 HP From 03/2019
BlueHDi 75 1560 CCM 75 HP From 03/2019
BlueHDi 100 1499 CCM 102 HP From 03/2019
BlueHDi 100 1560 CCM 99 HP From 03/2019
C3 ORIGIN III (SX)
Description Cylinder Capacity Horse Power Year
1.2 PURETECH 110 (SXHNPY, SXHNPZ) 1199 CCM 110 HP From 03/2024
1.2 PURETECH 82 (SXHMRV) 1199 CCM 83 HP From 03/2024
1.5 BlueHDi 100 (SXYHTU) 1499 CCM 102 HP From 03/2024
PEUGEOT
208 I (CA_, CC_)
Description Cylinder Capacity Horse Power Year
1.0 VTi 999 CCM 68 HP 03/2012 - 12/2019
1.2 VTI 82 1199 CCM 82 HP 03/2012 - 12/2019
1.2 THP 110 1199 CCM 110 HP 01/2013 - 12/2019
1.6 HDi / BlueHDi 75 1560 CCM 75 HP 01/2013 - 12/2019
1.6 GTi 1598 CCM 208 HP 10/2014 - 12/2019
1.6 BlueHDi 120 1560 CCM 120 HP 01/2015 - 12/2019
1.6 BlueHDi 100 1560 CCM 100 HP 01/2015 - 12/2019
1.6 THP 165 1598 CCM 165 HP 03/2015 - 12/2019
208 Hatchback Van (CR_)
Description Cylinder Capacity Horse Power Year
1.5 BlueHDi 100 1499 CCM 102 HP 05/2018 - 12/2019
301
Description Cylinder Capacity Horse Power Year
1.6 BlueHDi 100 1560 CCM 99 HP From 04/2014
1.2 VTi 82 1199 CCM 82 HP From 12/2014
1.5 BlueHDI 100 1499 CCM 102 HP From 05/2018
1.2 PureTech 82 1199 CCM 83 HP From 02/2018

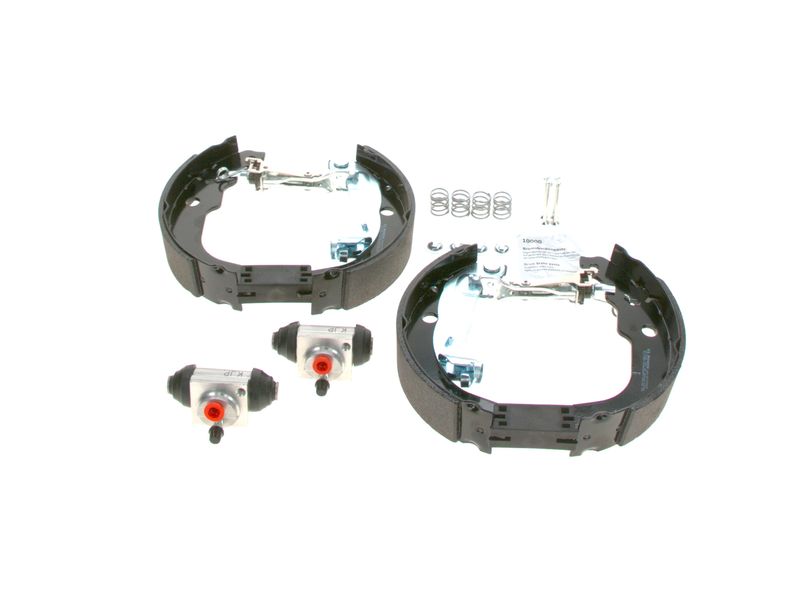

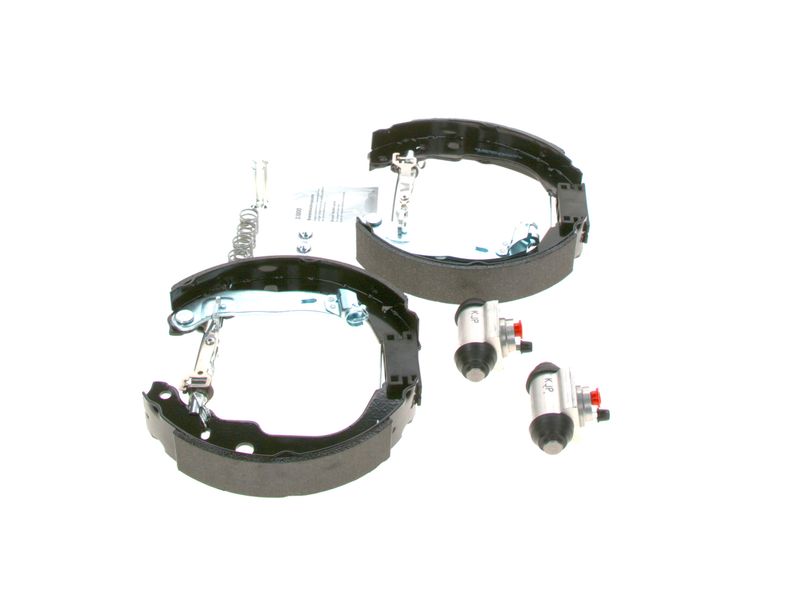

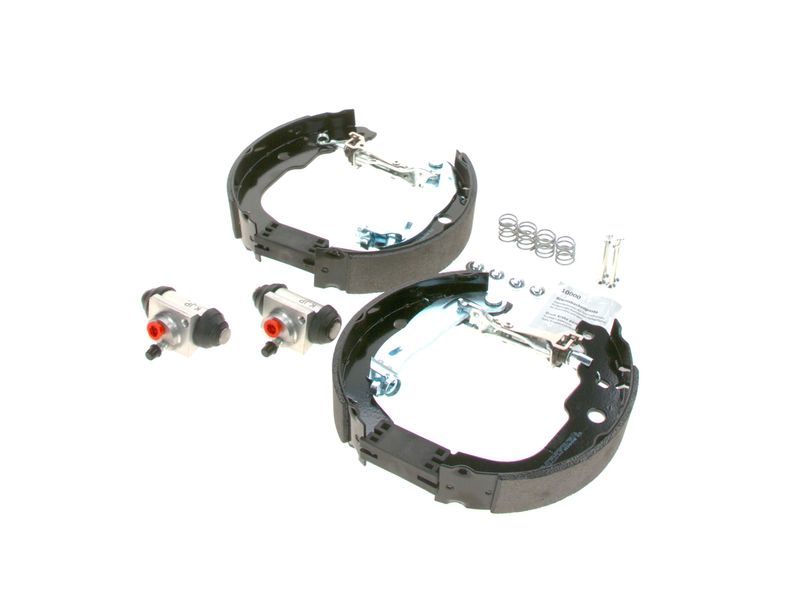

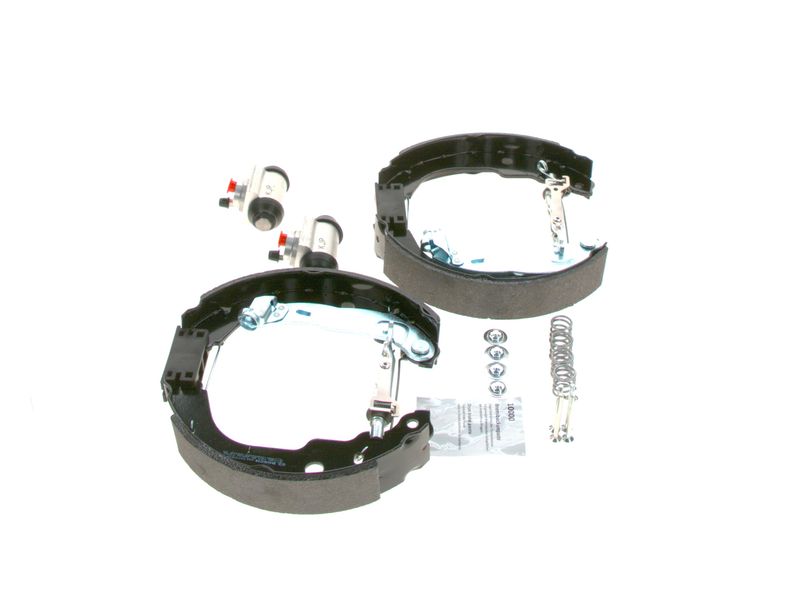

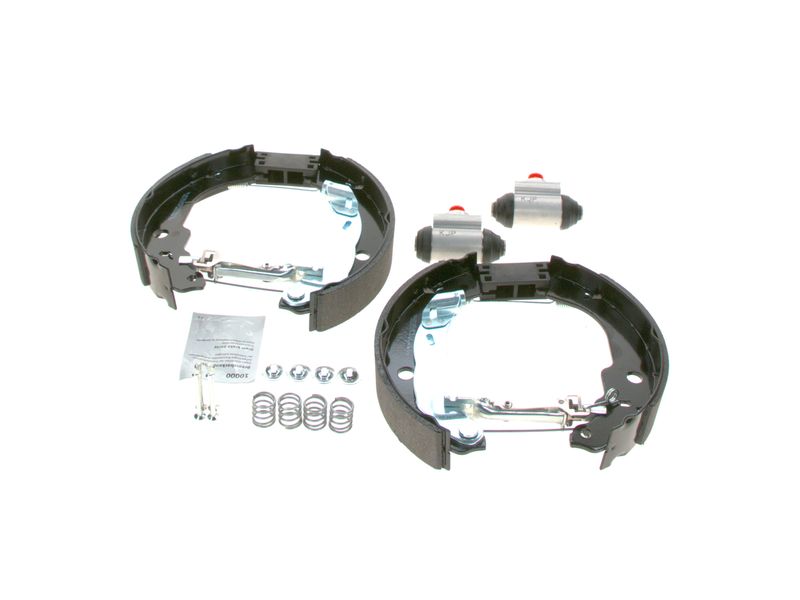

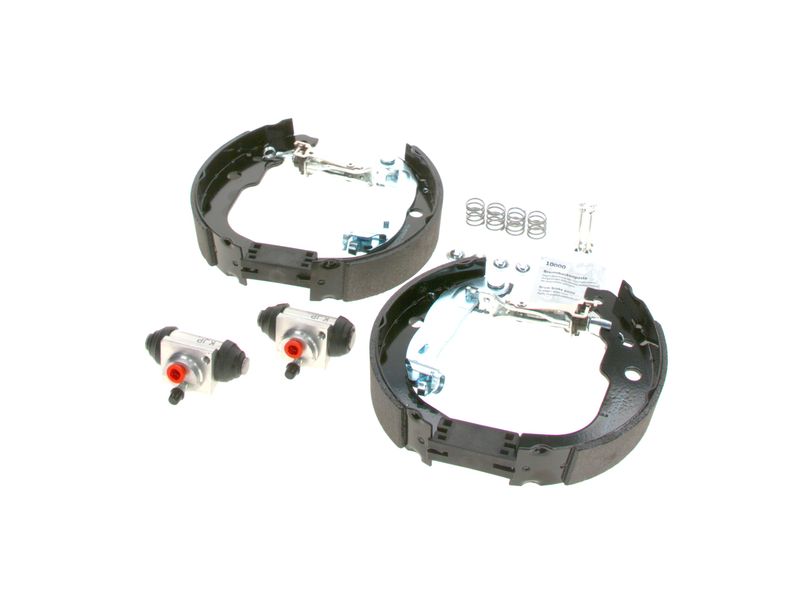

The Bosch 0204114703 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 228.6 mm inner brake drum diameter, 20.64 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Mounting Type : Pre-assembled
Adjustment : with automatic adjustment
Supplementary Article/Supplementary Info : with accessories
Brake Lining : with lining
Supplementary Article/Supplementary Info : with wheel brake cylinder
Inner brake drum diameter [mm] : 228.6
Width [mm] : 42
Piston Diameter [mm] : 20.64
Construction Year to : 12.2024
Fitting Position : Rear Axle
  • Vendor BOSCH
  • SKU 0204114703
  • Barcode 4047026365702
  • CITROËN : 16 192 298 80
  • PEUGEOT : 16 192 298 80
  • BLUE PRINT : ADBP410095
  • DELPHI : KP1115
  • FEBI BILSTEIN : 188428
  • MINTEX : MFR760
  • TEXTAR : 91084300
  • BOSCH : KS4703
