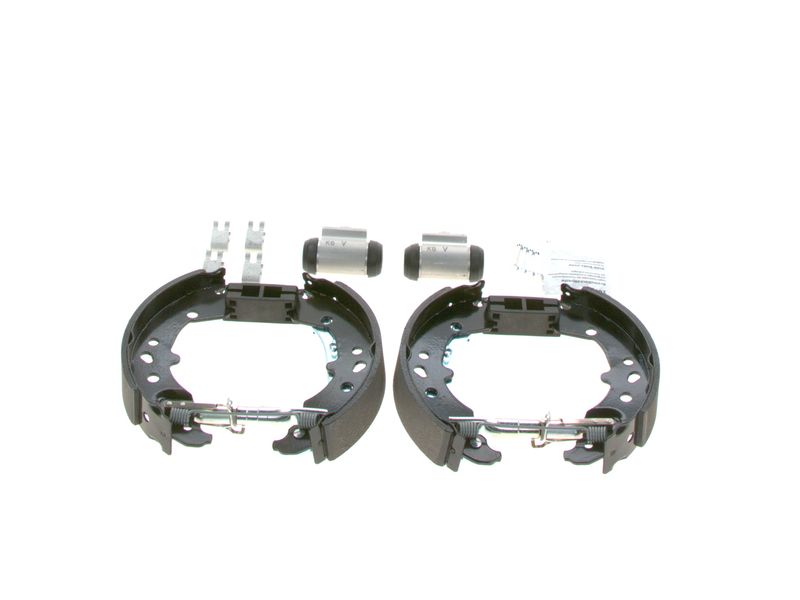

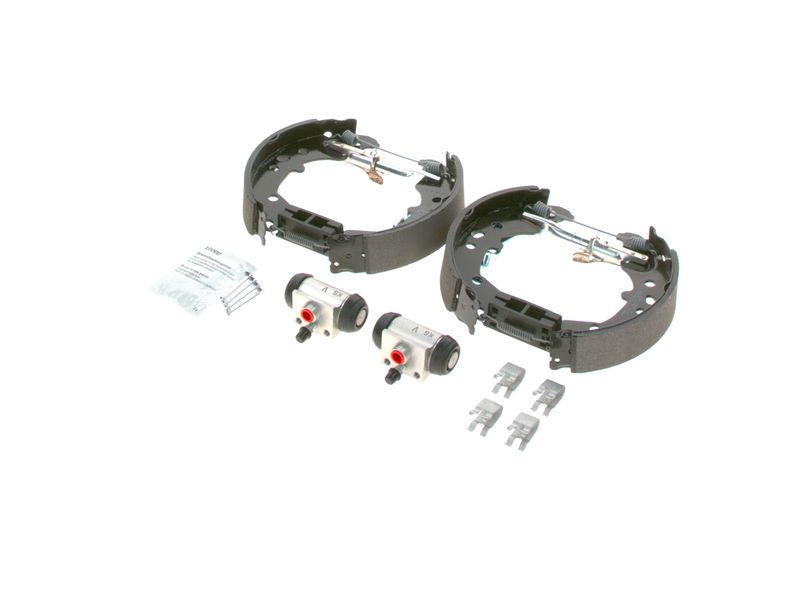

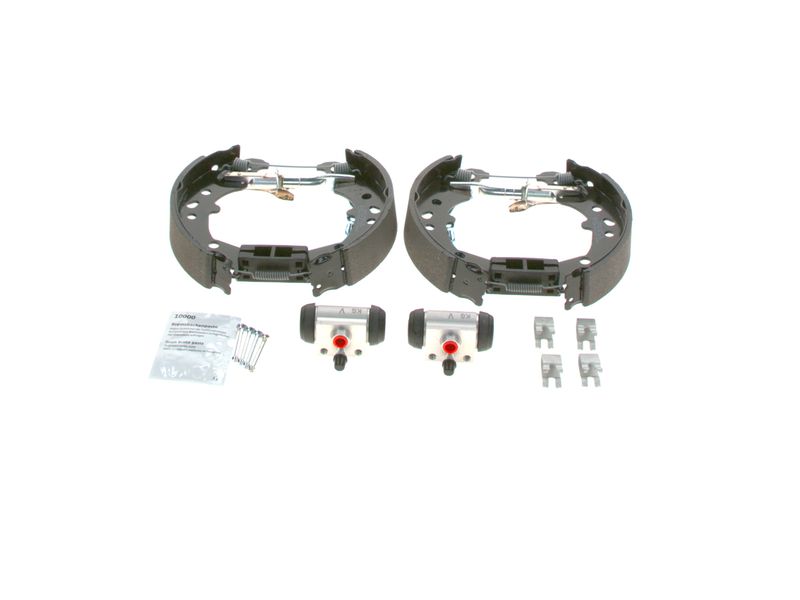

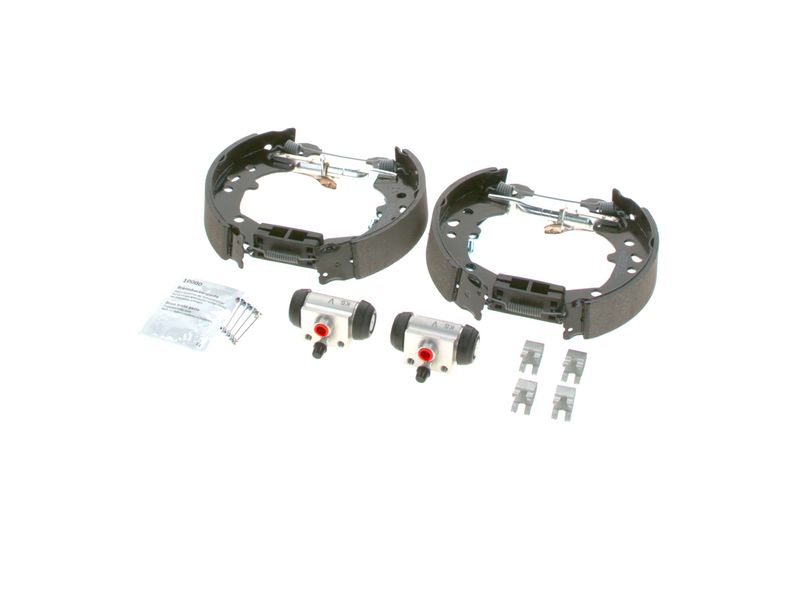

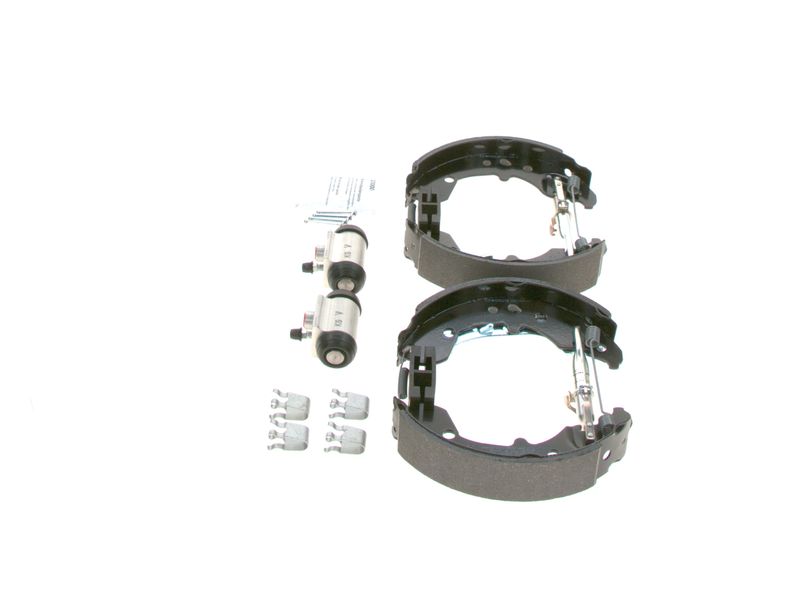

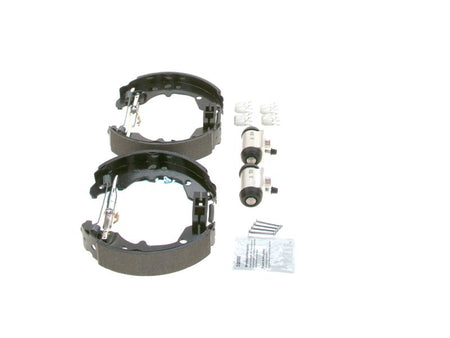

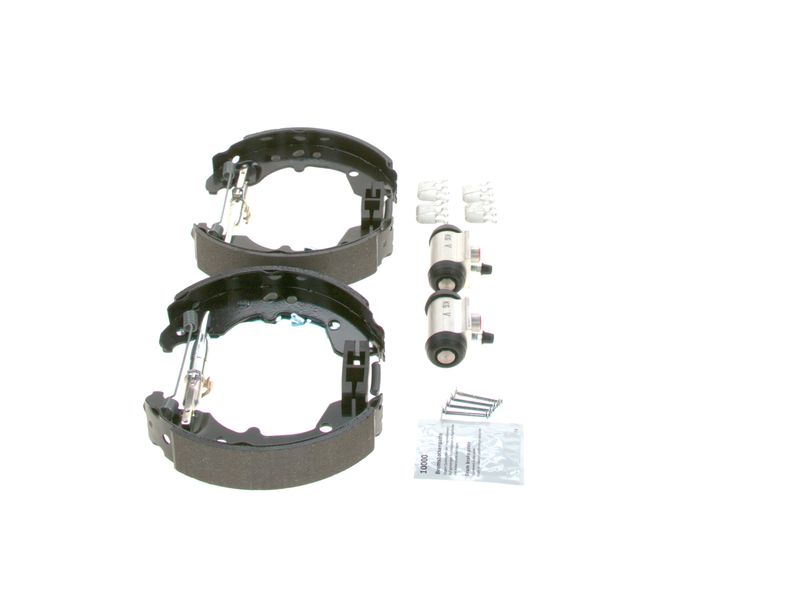

Bosch 0204114705 Brake Shoe Set
Your selected vehicle
Regular price
£92.73
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0204114705 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 203.2 mm inner brake drum diameter, 20.64 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Shoe Set
Mounting Type :
Pre-assembled
Adjustment :
with automatic adjustment
Supplementary Article/Supplementary Info :
with accessories
Brake Lining :
with lining
Supplementary Article/Supplementary Info :
with wheel brake cylinder
Inner brake drum diameter [mm] :
203.2
Width [mm] :
38.2
Piston Diameter [mm] :
20.64
Construction Year to :
12.2020
Fitting Position :
Rear Axle
for PR number :
1KG
- Vendor BOSCH
- SKU 0204114705
- BREMBO : K 85 053
- HELLA : 8DB 355 022-881
- MINTEX : MFR758
- TEXTAR : 91084100
- BOSCH : KS705
