BOSCH

Bosch 0204114709 Brake Shoe Set

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0204114709

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£154.66 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD)

Description	Cylinder Capacity	Horse Power	Year
2.0 TSI	1984 CCM	160 HP	12/2010 - 10/2016
2.0 BiTDI 4motion	1968 CCM	180 HP	11/2011 - 05/2022
2.0 BiTDI	1968 CCM	163 HP	09/2010 - 08/2012
2.0 BiTDI 4motion	1968 CCM	163 HP	09/2010 - 08/2012
2.0 TDI 4motion	1968 CCM	122 HP	09/2010 - 10/2013
2.0 TDI	1968 CCM	122 HP	09/2010 - 10/2013
2.0 BiTDI	1968 CCM	180 HP	11/2011 - 05/2022
2.0 TDI	1968 CCM	140 HP	From 07/2012
2.0 TDI 4motion	1968 CCM	140 HP	06/2012 - 05/2022
3.0 TDI 4motion	2967 CCM	224 HP	06/2016 - 05/2022
3.0 TDI 4motion	2967 CCM	204 HP	06/2016 - 08/2020
3.0 TDI 4motion	2967 CCM	163 HP	06/2016 - 06/2020
3.0 TDI	2967 CCM	163 HP	06/2016 - 06/2020
3.0 TDI 4motion	2967 CCM	258 HP	05/2018 - 05/2022

AMAROK Platform/Chassis (S1B, S6B, S7B)

Description	Cylinder Capacity	Horse Power	Year
2.0 BiTDI 4motion	1968 CCM	180 HP	09/2011 - 07/2019
2.0 TDI 4motion	1968 CCM	140 HP	09/2011 - 10/2016
3.0 TDI 4motion	2967 CCM	258 HP	05/2018 - 05/2022

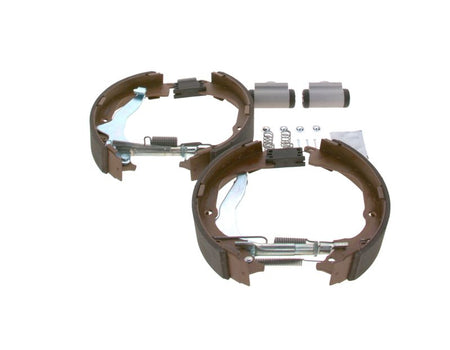

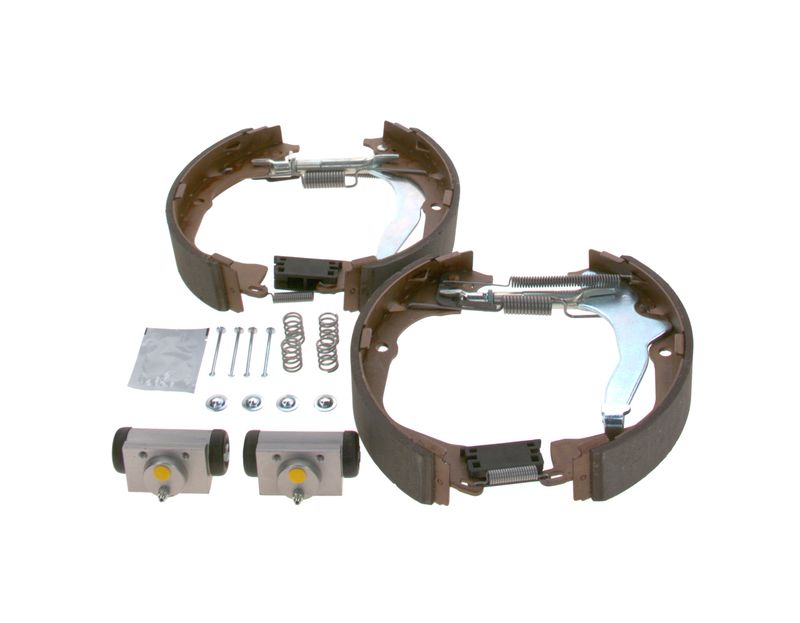

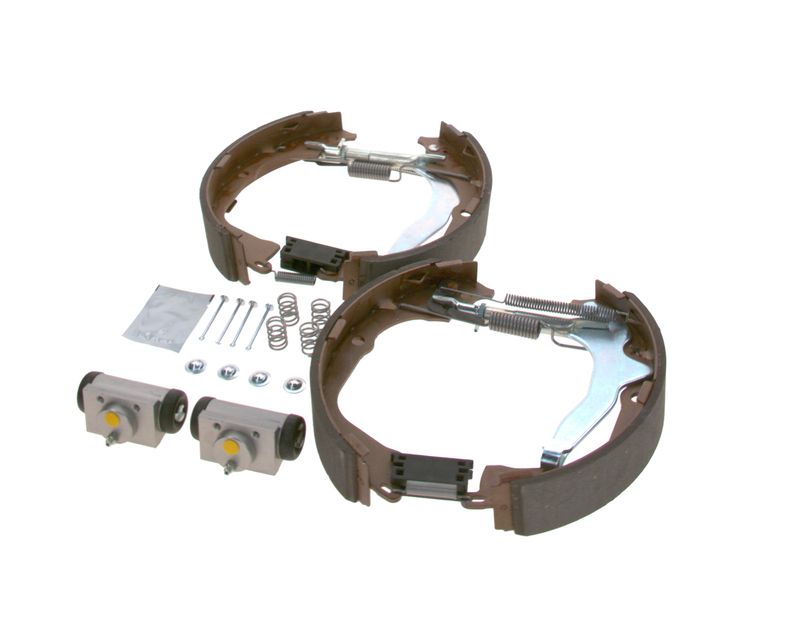

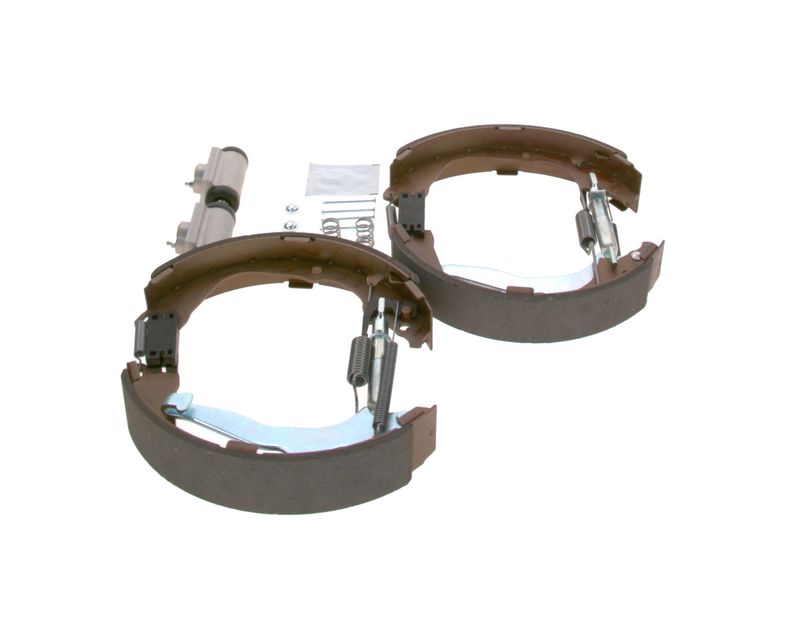

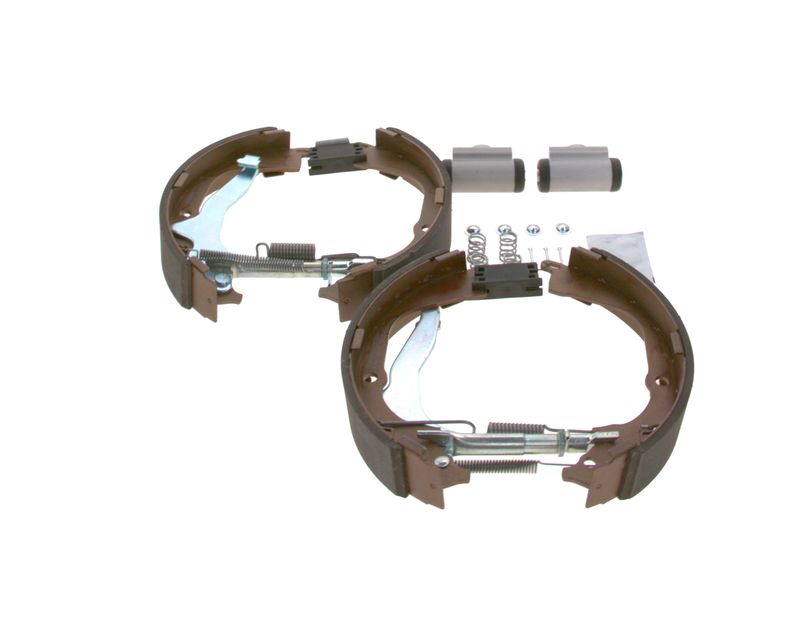

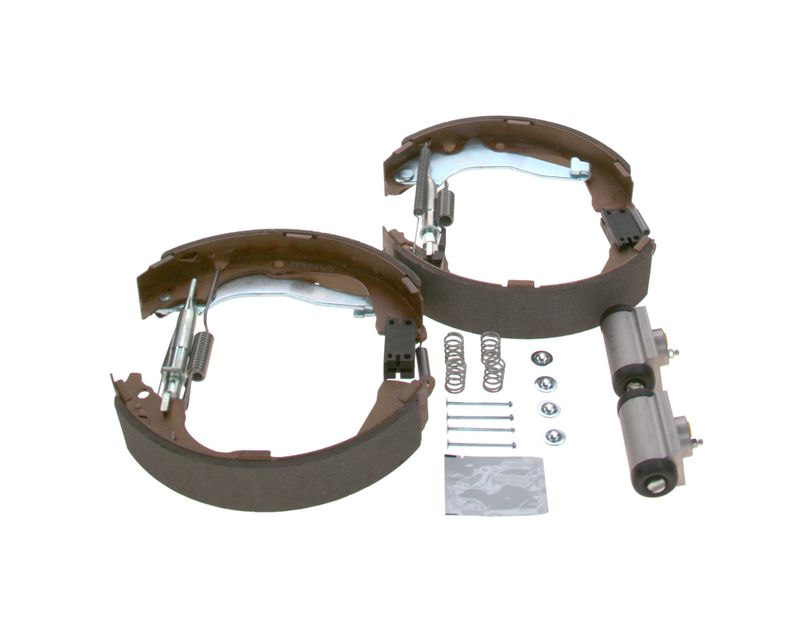

The Bosch 0204114709 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, 294 mm inner brake drum diameter, 27 mm piston diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 294

Width [mm] : 57

Piston Diameter [mm] : 27

Fitting Position : Rear Axle

Construction Year from : 08.2016

for PR number : 2E3
