BOSCH

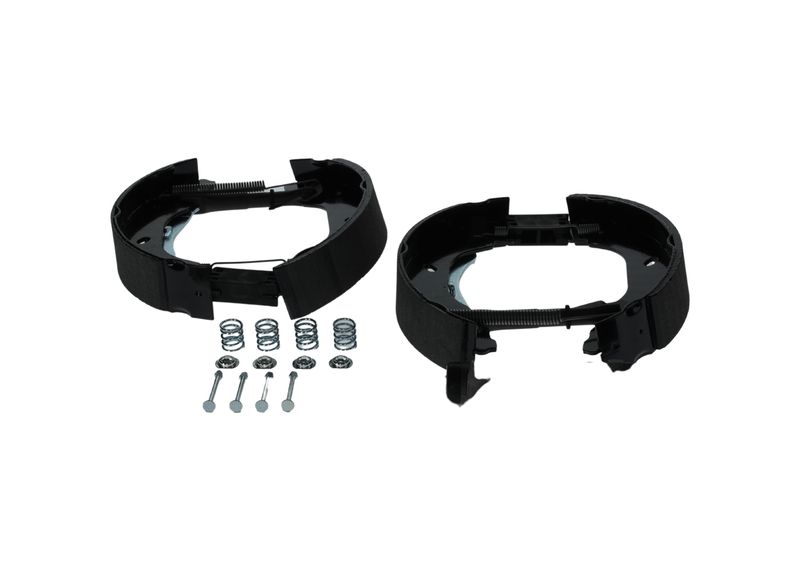

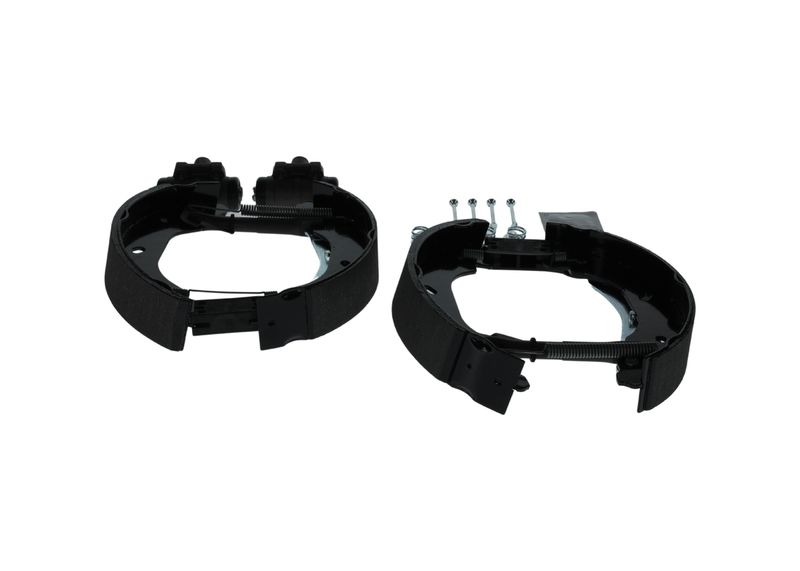

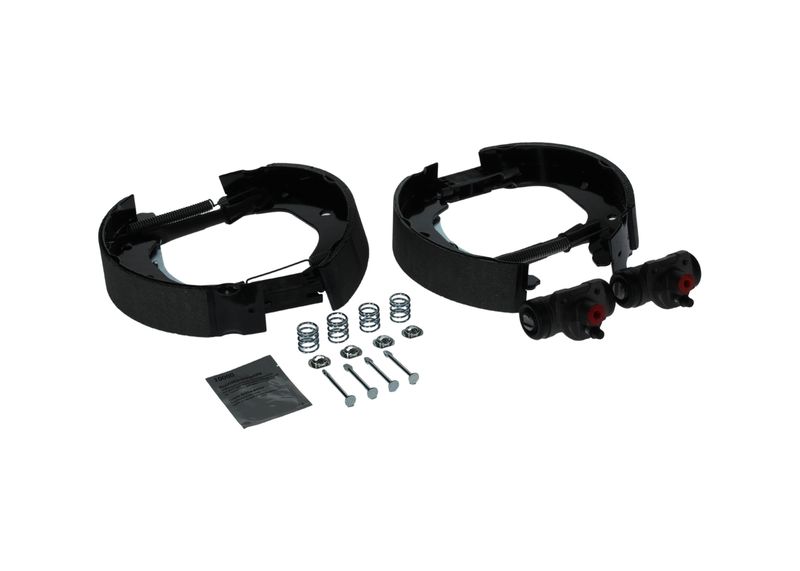

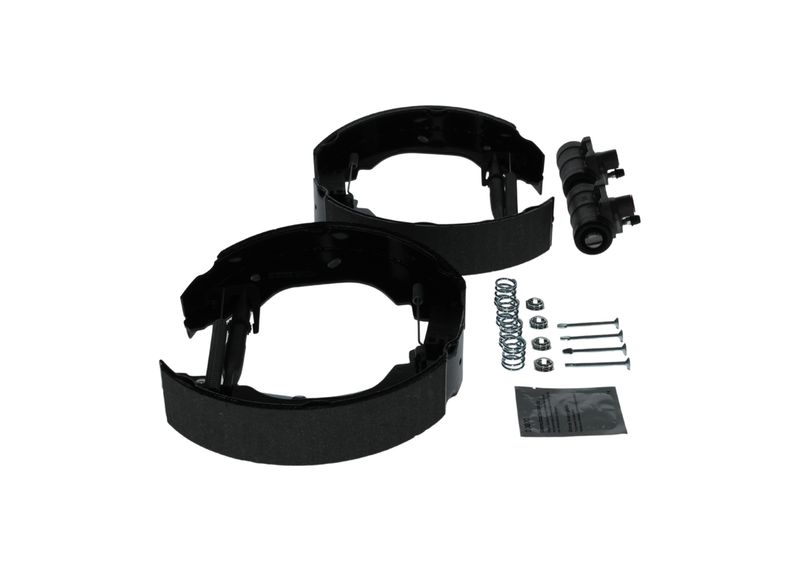

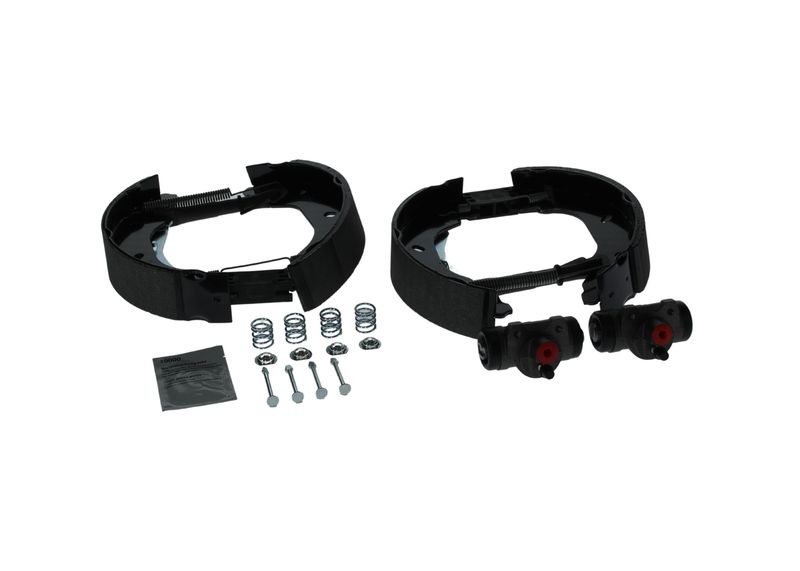

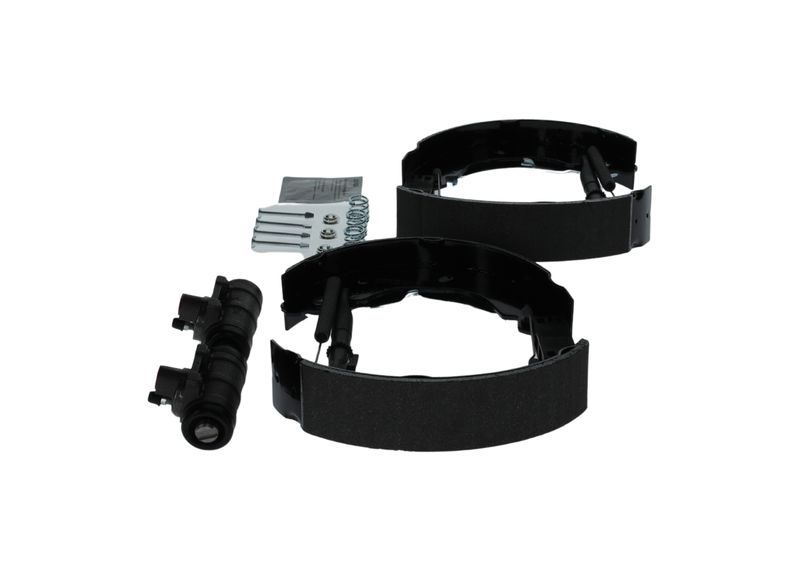

Bosch 0204211392 Brake Shoe Set

SKU: 0204211392

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£107.35 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TRANSIT Platform/Chassis (FM_ _, FN_ _)

Description	Cylinder Capacity	Horse Power	Year
2.0 DI (F_E_, F_F_)	1998 CCM	75 HP	08/2000 - 05/2006
2.0 DI (F_E_, F_F_)	1998 CCM	100 HP	08/2000 - 05/2006
2.0 DI (F_E_, F_F_)	1998 CCM	86 HP	08/2000 - 05/2006
2.0 TDCi (F_E_, F_F_)	1998 CCM	125 HP	08/2002 - 05/2006

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.0 DI (F_E_, F_F_, F_G_)	1998 CCM	75 HP	08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_)	1998 CCM	100 HP	08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_)	1998 CCM	86 HP	08/2000 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_)	1998 CCM	125 HP	08/2002 - 05/2006

TRANSIT Van (FA_ _)

Description	Cylinder Capacity	Horse Power	Year
2.0 DI (FAE_, FAF_, FAG_)	1998 CCM	75 HP	08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_)	1998 CCM	100 HP	08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_)	1998 CCM	86 HP	08/2000 - 05/2006
2.0 TDCi	1998 CCM	125 HP	08/2002 - 05/2006

TRANSIT TOURNEO Bus (FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	125 HP	03/2002 - 03/2006
2.0	1998 CCM	75 HP	06/2000 - 08/2003
2.0	1998 CCM	101 HP	06/2000 - 03/2005

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	140 HP	10/2007 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014

TRANSIT Van (FA_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014

TRANSIT TOURNEO Bus

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	07/2006 - 08/2014
2.2 TDCi	2198 CCM	131 HP	07/2006 - 08/2014
2.2 TDCi	2198 CCM	140 HP	10/2007 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014

The Bosch 0204211392 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Pre-assembled mounting type, with accessories and with wheel brake cylinder, 254 mm inner brake drum diameter, and 25.4 mm piston diameter. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Mounting Type : Pre-assembled

Adjustment : with automatic adjustment

Supplementary Article/Supplementary Info : with accessories

Brake Lining : with lining

Supplementary Article/Supplementary Info : with wheel brake cylinder

Inner brake drum diameter [mm] : 254

Width [mm] : 52

Piston Diameter [mm] : 25.4

Bosch 0204211392 Brake Shoe Set
