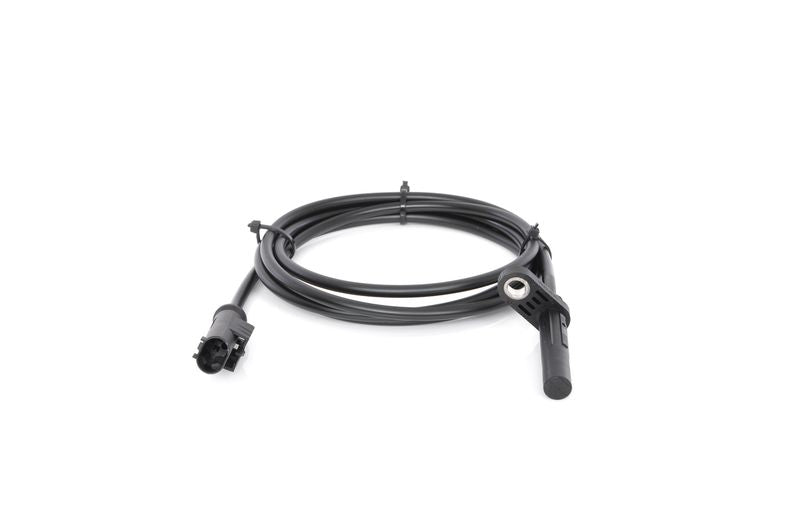

Bosch 0265009340 Sensor, wheel speed - 1

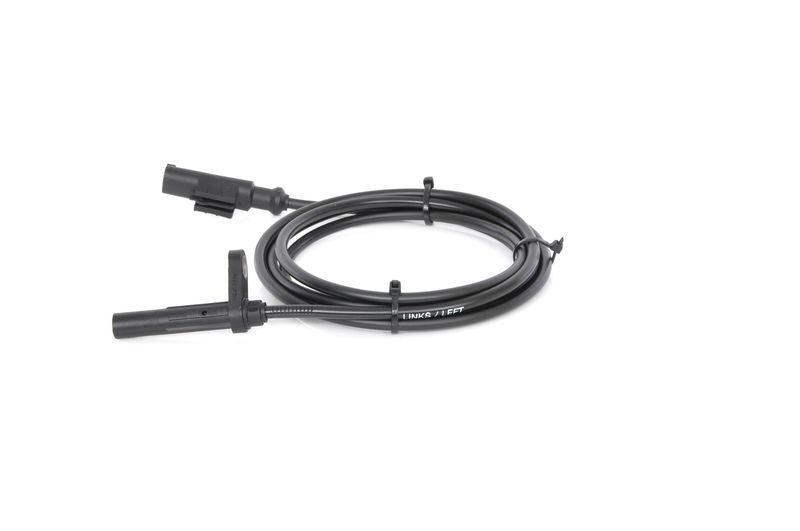

Bosch 0265009340 Sensor, wheel speed - 2

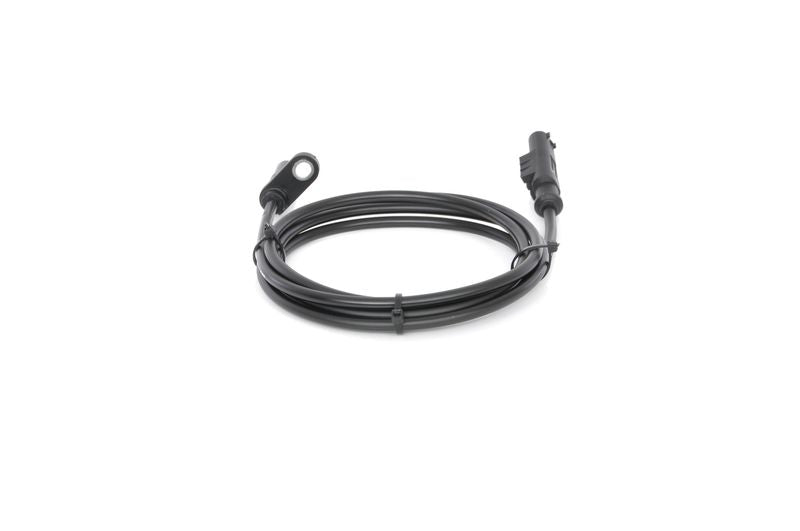

Bosch 0265009340 Sensor, wheel speed - 3

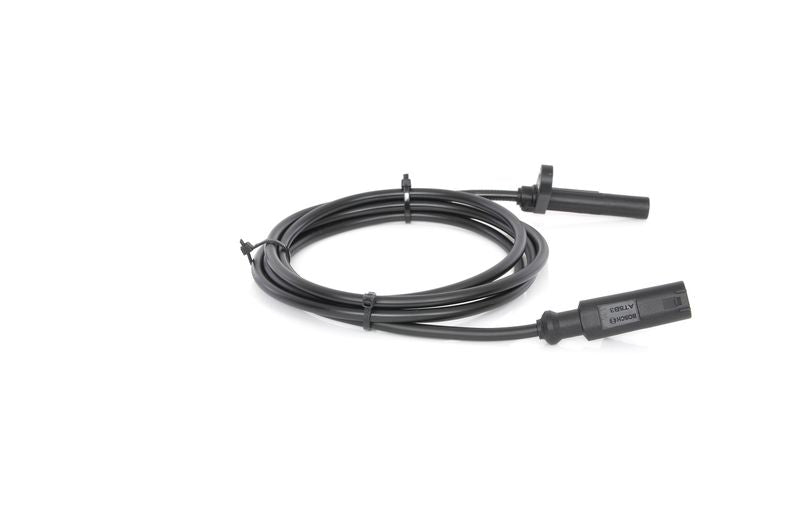

Bosch 0265009340 Sensor, wheel speed - 4

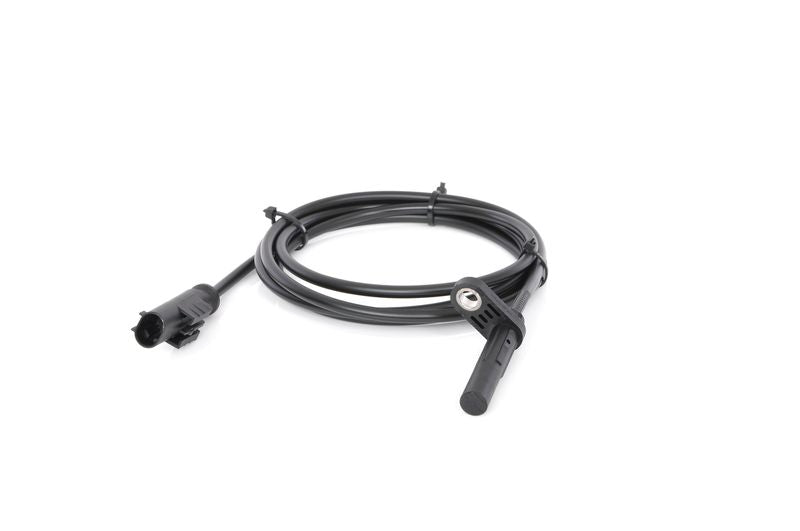

Bosch 0265009340 Sensor, wheel speed - 5

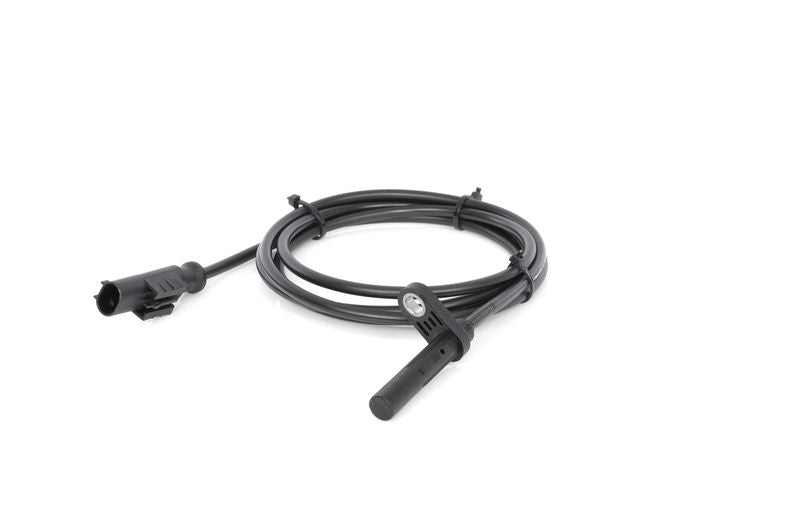

Bosch 0265009340 Sensor, wheel speed - 6
Bosch 0265009340 Sensor, wheel speed - 1
Bosch 0265009340 Sensor, wheel speed - 2
Bosch 0265009340 Sensor, wheel speed - 3
Bosch 0265009340 Sensor, wheel speed - 4
Bosch 0265009340 Sensor, wheel speed - 5
Bosch 0265009340 Sensor, wheel speed - 6
BOSCH

Bosch 0265009340 ABS Wheel Speed Sensor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0265009340

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£62.30 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
SPRINTER 3,5-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
313 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... 2143 CCM 129 HP 06/2006 - 12/2016
319 CDI / BlueTEC 4x4 (906.131, 906.133, 906.135,... 2987 CCM 190 HP 03/2009 - 12/2018
311 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2148 CCM 109 HP 06/2006 - 12/2009
315 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2148 CCM 150 HP 06/2006 - 12/2009
318 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2987 CCM 184 HP 06/2006 - 12/2009
313 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2143 CCM 129 HP 06/2006 - 12/2016
316 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2143 CCM 163 HP 03/2009 - 12/2018
319 CDI / BlueTEC (906.131, 906.133, 906.135, 906.231,... 2987 CCM 190 HP 03/2009 - 12/2018
311 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... 2148 CCM 109 HP 02/2008 - 12/2009
SPRINTER 4,6-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
424 (906.153, 906.155, 906.253, 906.255) 3498 CCM 258 HP 06/2006 - 12/2016
416 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 163 HP 03/2009 - 12/2018
419 CDI (906.153, 906.155, 906.253, 906.255) 2987 CCM 190 HP 03/2009 - 12/2018
415 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 150 HP 06/2006 - 12/2009
418 CDI (906.153, 906.155, 906.253, 906.255) 2987 CCM 184 HP 06/2006 - 12/2009
411 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 109 HP 06/2009 - 12/2018
414 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 143 HP 05/2016 - 12/2018
413 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 129 HP 06/2006 - 12/2016
SPRINTER 5-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
513 CDI 4x4 (906.155, 906.253, 906.255, 906.153) 2143 CCM 129 HP 05/2011 - 12/2016
516 CDI 4x4 (906.153, 906.155, 906.255, 906.253) 2143 CCM 163 HP 03/2009 - 12/2018
509 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 88 HP 06/2006 - 12/2009
511 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 109 HP 06/2006 - 12/2009
515 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 150 HP 06/2006 - 12/2009
518 CDI (906.153, 906.155, 906.253, 906.255) 2987 CCM 184 HP 06/2006 - 12/2009
516 NGT (906.153, 906.155, 906.253, 906.255) 1796 CCM 156 HP 09/2008 - 12/2018
516 (906.153, 906.155, 906.253, 906.255) 1796 CCM 156 HP 09/2008 - 12/2018
524 (906.153, 906.155, 906.253, 906.255) 3498 CCM 258 HP 06/2006 - 12/2016
519 CDI / BlueTEC (906.153, 906.155, 906.253, 906.255) 2987 CCM 190 HP 03/2009 - 12/2018
510 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 95 HP 03/2009 - 12/2016
513 CDI (906.155, 906.253, 906.255) 2148 CCM 129 HP 03/2009 - 05/2016
516 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 163 HP 03/2009 - 12/2018
511 CDI 4x4 (906.155, 906.253, 906.255) 2148 CCM 109 HP 06/2006 - 12/2009
515 CDI 4x4 (906.153, 906.155, 906.253, 906.255) 2148 CCM 150 HP 06/2006 - 12/2009
SPRINTER 3,5-t Bus (B906)
Description Cylinder Capacity Horse Power Year
318 CDI (906.731, 906.733, 906.735) 2987 CCM 184 HP 02/2008 - 12/2009
319 CDI / BlueTEC (906.731, 906.733, 906.735) 2987 CCM 190 HP 03/2009 - 12/2018
313 CDI 4x4 (906.731, 906.733, 906.735) 2143 CCM 129 HP 08/2011 - 12/2016
313 CDI (906.731, 906.733, 906.735) 2143 CCM 129 HP 08/2011 - 12/2016
319 CDI / BlueTEC 4x4 (906.731, 906.733, 906.735) 2987 CCM 190 HP 03/2009 - 12/2018
316 CDI 4x4 (906.731, 906.733, 906.735) 2143 CCM 163 HP 08/2011 - 12/2018
311 CDI (906.731, 906.733, 906.735) 2148 CCM 109 HP 06/2006 - 12/2009
315 CDI (906.731, 906.733, 906.735) 2148 CCM 150 HP 06/2006 - 12/2009
311 CDI 4x4 (906.731, 906.733, 906.735) 2148 CCM 109 HP 02/2008 - 12/2009
315 CDI 4x4 (906.731, 906.733, 906.735) 2148 CCM 150 HP 02/2008 - 12/2009
318 CDI 4x4 (906.731, 906.733, 906.735) 2987 CCM 184 HP 02/2008 - 12/2009
316 CDI (906.731, 906.733, 906.735) 2143 CCM 163 HP 08/2011 - 12/2018
SPRINTER 3,5-t Van (B906)
Description Cylinder Capacity Horse Power Year
319 CDI / BlueTEC 4x4 (906.631, 906.633, 906.635,... 2987 CCM 190 HP 03/2009 - 12/2018
313 CDI (906.631, 906.633, 906.635, 906.637) 2143 CCM 129 HP 05/2009 - 12/2016
313 CDI 4x4 (906.631, 906.633, 906.635, 906.637) 2143 CCM 129 HP 03/2009 - 12/2016
311 CDI (906.631, 906.633, 906.635, 906.637) 2148 CCM 109 HP 06/2006 - 12/2009
315 CDI (906.631, 906.633, 906.635, 906.637) 2148 CCM 150 HP 06/2006 - 12/2009
318 CDI (906.631, 906.633, 906.635, 906.637) 2987 CCM 184 HP 06/2006 - 12/2009
316 CDI (906.631, 906.633, 906.635, 906.637) 2143 CCM 163 HP 03/2009 - 12/2018
319 CDI / BlueTEC (906.631, 906.633, 906.635, 906.637) 2987 CCM 190 HP 03/2009 - 12/2018
311 CDI 4x4 (906.631, 906.633, 906.635, 906.637) 2148 CCM 109 HP 02/2008 - 12/2009
315 CDI 4x4 (906.631, 906.633, 906.635, 906.637) 2148 CCM 150 HP 02/2008 - 12/2009
SPRINTER 4,6-t Van (B906)
Description Cylinder Capacity Horse Power Year
424 (906.655, 906.657, 906.653) 3498 CCM 258 HP 06/2006 - 12/2016
416 CDI (906.653, 906.655, 906.657, 906.633, 906.635,... 2143 CCM 163 HP 03/2009 - 12/2018
419 CDI (906.653, 906.655, 906.657) 2987 CCM 190 HP 03/2009 - 12/2018
411 CDI (906.653, 906.655, 906.657) 2148 CCM 109 HP 06/2009 - 12/2018
415 CDI (906.653, 906.655, 906.657) 2148 CCM 150 HP 06/2009 - 12/2009
418 CDI (906.653, 906.655, 906.657) 2987 CCM 184 HP 06/2009 - 05/2016
413 CDI (906.653, 906.655, 906.657) 2143 CCM 129 HP 06/2006 - 12/2016
414 CDI (906.653, 906.655, 906.657) 2143 CCM 143 HP 05/2016 - 12/2018
414 CDI 4x4 (906.653, 906.655, 906.657) 2143 CCM 143 HP 05/2016 - 12/2018
416 CDI 4x4 (906.655, 906.657) 2143 CCM 163 HP 11/2013 - 12/2018
SPRINTER 5-t Bus (B906)
Description Cylinder Capacity Horse Power Year
519 CDI (906.655, 906.657) 2987 CCM 190 HP 03/2009 - 12/2018
516 CDI (906.655, 906.657) 2143 CCM 163 HP 03/2009 - 12/2018
513 CDI (906.655, 906.657) 2143 CCM 129 HP 03/2009 - 12/2016
SPRINTER 5-t Van (B906)
Description Cylinder Capacity Horse Power Year
509 CDI (906.653, 906.655, 906.657) 2148 CCM 88 HP 06/2006 - 12/2009
511 CDI (906.653, 906.655, 906.657) 2148 CCM 109 HP 06/2006 - 12/2009
515 CDI (906.653, 906.655, 906.657) 2148 CCM 150 HP 06/2006 - 12/2009
518 CDI (906.653, 906.655, 906.657) 2987 CCM 184 HP 06/2006 - 12/2009
524 (906.653, 906.655, 906.657) 3498 CCM 258 HP 06/2006 - 12/2016
519 CDI / BlueTEC (906.653, 906.655, 906.657) 2987 CCM 190 HP 03/2009 - 12/2018
516 CDI (906.653, 906.655, 906.657) 2143 CCM 163 HP 03/2009 - 12/2018
513 CDI (906.653, 906.655, 906.657) 2148 CCM 129 HP 03/2009 - 05/2016
510 CDI (906.653, 906.655, 906.657) 2143 CCM 95 HP 03/2009 - 12/2016
518 CDI 4x4 (906.653, 906.655, 906.657) 2987 CCM 184 HP 06/2006 - 12/2016
516 CDI 4x4 (906.653, 906.655, 906.657) 2143 CCM 163 HP 03/2009 - 12/2018
511 CDI 4x4 (906.653, 906.655, 906.657) 2148 CCM 109 HP 06/2006 - 12/2009
513 CDI 4x4 (906.653, 906.655, 906.657) 2143 CCM 129 HP 03/2009 - 12/2016
515 CDI 4x4 (906.653, 906.655, 906.657) 2148 CCM 150 HP 06/2006 - 12/2009
519 CDI / BlueTEC 4x4 (906.653, 906.655, 906.657) 2987 CCM 190 HP 03/2009 - 12/2018
VW
CRAFTER 30-50 Platform/Chassis (2F_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 109 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 136 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 163 HP 07/2011 - 12/2016
2.0 TDI 1968 CCM 142 HP 10/2011 - 12/2016
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011
2.0 TDI 4motion 1968 CCM 163 HP 11/2011 - 12/2016
CRAFTER 30-50 Van (2E_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 109 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 136 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 163 HP 07/2011 - 12/2016
2.0 TDI 1968 CCM 142 HP 10/2011 - 12/2016
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011
2.0 TDI 4motion 1968 CCM 163 HP 07/2011 - 12/2016

The Bosch 0265009340 ABS Wheel Speed Sensor is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records Hall Sensor sensor type, with cable, -40 °C temperature range from, and 150 °C temperature range to. It is listed in the sensor, wheel speed product category. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.

Function : Sensor, wheel speed
Sensor Type : Hall Sensor
Supplementary Article/Supplementary Info 2 : with cable
Overall Length [mm] : 1,656
Temperature range from [°C] : -40
Temperature range to [°C] : 150
  • Vendor BOSCH
  • SKU 0265009340
  • Barcode 4047024907669
  • MERCEDES-BENZ : A 906 540 11 17 906 540 11 17
  • VW : 2E0 927 748 B 2E0 927 801 B
  • DELPHI : SS21316-12B1
  • FEBI BILSTEIN : 106623
  • FTE : 9400197
  • HELLA : 6PU 358 252-521
  • INTERMOTOR : 61043
  • MEYLE : 014 800 0117
  • MEYLE : 014 899 0063
  • TEXTAR : 45018700
  • TRW : GBS2675
  • BOSCH : DF 11
