BOSCH

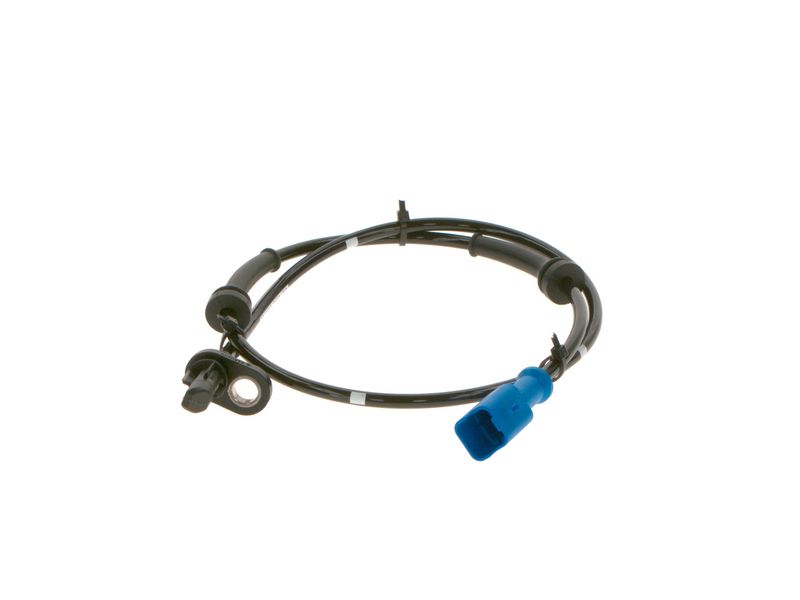

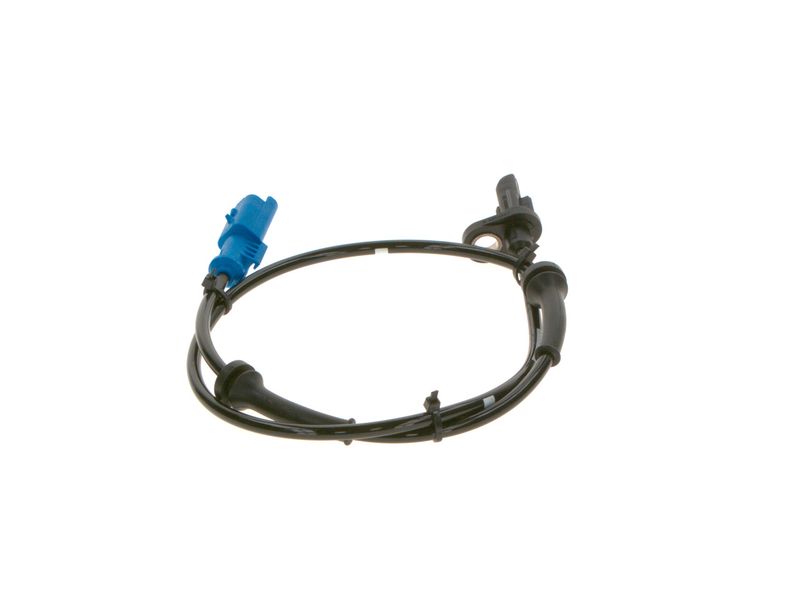

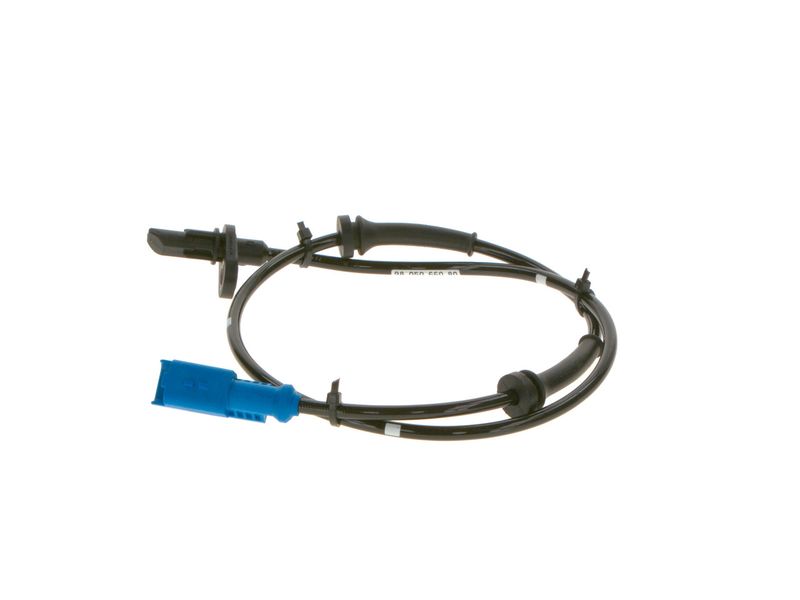

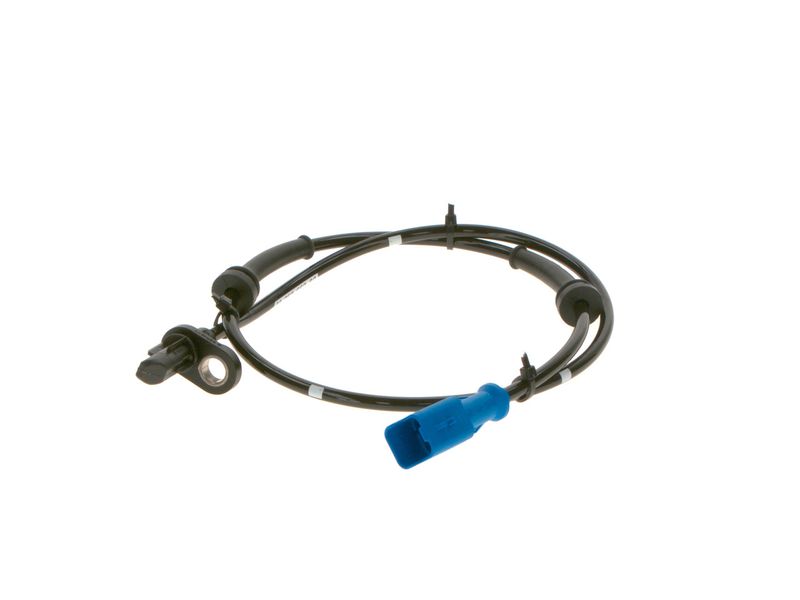

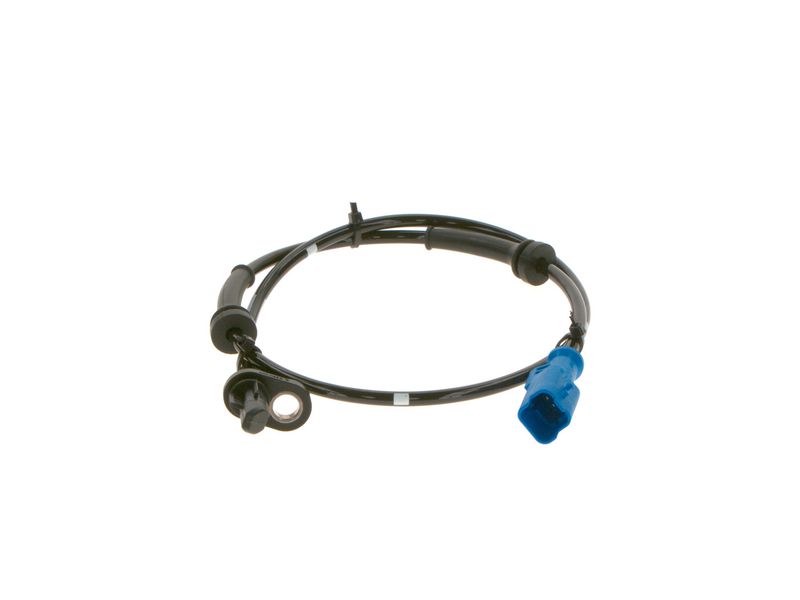

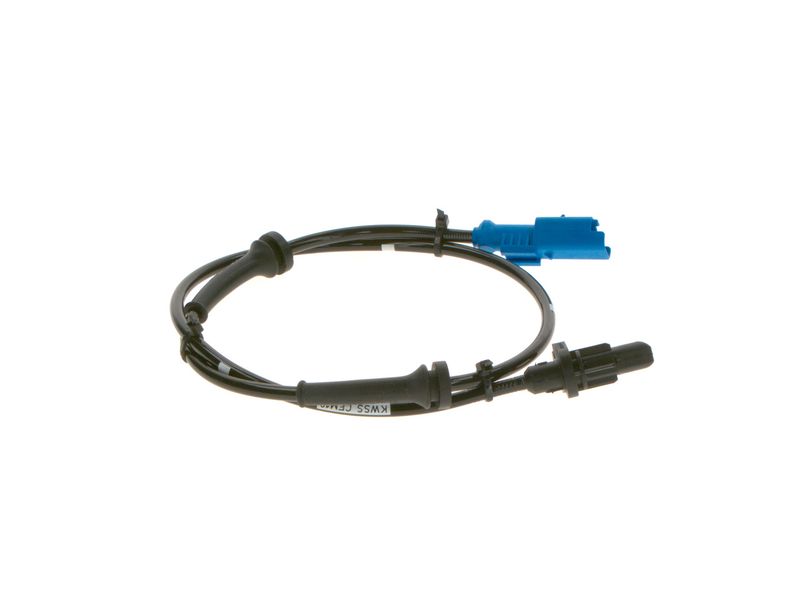

Bosch 0265009501 ABS Wheel Speed Sensor

SKU: 0265009501
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£33.36 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C-ELYSEE (DD_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 72 (DDHMY0) 1199 CCM 72 HP 11/2012 - 01/2017
1.6 HDI 92 1560 CCM 92 HP From 11/2012
1.6 VTi 115 (DDNFP0, DDNFP6, DDNFP9) 1587 CCM 115 HP From 11/2012
1.2 VTi 82 1199 CCM 82 HP From 12/2014
1.5 BlueHDi 100 1499 CCM 102 HP From 05/2018
1.2 PureTech 82 (DDHMRP) 1199 CCM 83 HP From 02/2018
C3 PICASSO (SH_)
Description Cylinder Capacity Horse Power Year
1.4 VTi 95 (SH8FSC, SH8FP0, SH8FP6) 1397 CCM 95 HP 12/2008 - 12/2015
1.6 VTi 120 1598 CCM 120 HP 02/2009 - 07/2015
1.6 HDI 90 1560 CCM 92 HP 07/2010 - 03/2015
1.4 VTi 95 LPG (SH8FN0) 1397 CCM 95 HP 09/2010 - 11/2015
1.6 HDi 115 1560 CCM 114 HP 01/2013 - 03/2015
1.2 THP 110 (SHHNZ6) 1199 CCM 110 HP 01/2015 - 12/2015
1.6 BlueHDi 100 1560 CCM 99 HP 01/2015 - 08/2017
1.6 VTi 115 (SH5FP0, SH5FP8) 1598 CCM 114 HP 07/2009 - 12/2015
C3 III (SX)
Description Cylinder Capacity Horse Power Year
1.2 VTi 68 1199 CCM 68 HP From 09/2016
1.2 VTi 82 1199 CCM 82 HP From 09/2016
1.2 THP 110 (SXHNPS, SXHNZT, SXHNZ6) 1199 CCM 110 HP From 09/2016
1.6 BlueHDi 75 1560 CCM 75 HP 09/2016 - 05/2018
1.6 BlueHDi 100 1560 CCM 99 HP 09/2016 - 05/2018
1.6 VTi (SXNFPT) 1587 CCM 116 HP From 02/2017
1.5 BlueHDi 100 (SXYHYP, SXYHTU) 1499 CCM 102 HP From 05/2018
1.2 PureTech 82 1199 CCM 83 HP From 05/2018
1.2 PureTech 82 LPG 1199 CCM 83 HP From 05/2018
C3 III Van (SX_, SY_)
Description Cylinder Capacity Horse Power Year
PureTech 82 1199 CCM 83 HP From 03/2019
PureTech 110 1199 CCM 110 HP From 03/2019
BlueHDi 75 1560 CCM 75 HP From 03/2019
BlueHDi 100 1499 CCM 102 HP From 03/2019
BlueHDi 100 1560 CCM 99 HP From 03/2019
C3 AIRCROSS I (2R_, 2C_)
Description Cylinder Capacity Horse Power Year
1.6 BlueHDi 100 (2CBHYB) 1560 CCM 99 HP 07/2017 - 08/2018
1.6 BlueHDi 120 (2CBHZH) 1560 CCM 120 HP 07/2017 - 05/2018
1.2 PureTech 82 (2RHMRC, 2RHMZB) 1199 CCM 82 HP From 06/2017
1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ) 1199 CCM 110 HP From 06/2017
1.2 PureTech 130 (2RHNYH) 1199 CCM 131 HP From 07/2017
1.6 BlueHDi 115 (2CBHXH) 1560 CCM 115 HP 06/2017 - 05/2018
1.5 BlueHDi 100 (2CYHYJ) 1499 CCM 102 HP From 08/2018
1.5 BlueHDi 120 (2CYHXX) 1499 CCM 120 HP From 08/2018
1.5 BlueHDi 100 (2CYHYJ) 1499 CCM 99 HP From 08/2018
1.6 HDi 92 (2C9HPA) 1560 CCM 92 HP From 10/2017
1.5 BlueHDi 110 1499 CCM 110 HP From 10/2020
C3 AIRCROSS II Van (2C_, 2R_)
Description Cylinder Capacity Horse Power Year
PureTech 82 1199 CCM 82 HP From 05/2019
PureTech 82 1199 CCM 110 HP From 05/2019
1.6 BlueHDI 100 1560 CCM 99 HP From 05/2019
1.5 BlueHDI 100 1499 CCM 99 HP From 05/2019
C3 ORIGIN III (SX)
Description Cylinder Capacity Horse Power Year
1.2 PURETECH 110 (SXHNPY, SXHNPZ) 1199 CCM 110 HP From 03/2024
1.2 PURETECH 82 (SXHMRV) 1199 CCM 83 HP From 03/2024
1.5 BlueHDi 100 (SXYHTU) 1499 CCM 102 HP From 03/2024
C4 CACTUS
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP From 09/2014
1.6 HDi 90 1560 CCM 92 HP From 09/2014
1.2 VTi 75 / PureTech 75 1199 CCM 75 HP From 09/2014
1.2 THP 110 1199 CCM 110 HP From 09/2014
1.6 BlueHDi 100 1560 CCM 99 HP 09/2014 - 06/2018
1.2 PureTech 130 1199 CCM 131 HP From 11/2017
1.5 BlueHDi 100 1499 CCM 102 HP From 06/2018
1.5 BlueHDi 120 1499 CCM 120 HP From 09/2018
1.5 BlueHDi 100 1499 CCM 99 HP From 06/2018
C4 CACTUS Van (0B_, 0P_)
Description Cylinder Capacity Horse Power Year
PureTech 82 1199 CCM 82 HP From 05/2019
PureTech 110 1199 CCM 110 HP From 05/2019
PureTech 130 1199 CCM 131 HP From 05/2019
BlueHDi 100 1499 CCM 99 HP From 05/2019
BlueHDi 100 1560 CCM 99 HP From 05/2019
OPEL
CROSSLAND X / CROSSLAND (P17, P2QO)
Description Cylinder Capacity Horse Power Year
1.2 (75) 1199 CCM 131 HP From 03/2017
1.2 (75) 1199 CCM 82 HP From 03/2017
1.2 (75) 1199 CCM 110 HP From 03/2017
1.6 Turbo D (75) 1560 CCM 99 HP 03/2017 - 05/2018
1.6 Turbo D (75) 1560 CCM 120 HP 03/2017 - 05/2018
1.6 Turbo D (75) 1560 CCM 116 HP 08/2017 - 04/2019
1.2 LPG (75) 1199 CCM 82 HP From 10/2017
1.5 Turbo D (75) 1499 CCM 102 HP From 06/2018
1.5 Turbo D (75) 1499 CCM 120 HP From 08/2018
1.2 1199 CCM 83 HP From 07/2019
1.5 (75) 1499 CCM 110 HP From 10/2020
PEUGEOT
207 CC (WD_)
Description Cylinder Capacity Horse Power Year
1.6 16V 1598 CCM 120 HP 02/2007 - 10/2013
1.6 HDi 1560 CCM 112 HP 08/2009 - 10/2013
1.6 16V Turbo 1598 CCM 156 HP 10/2009 - 12/2013
207 SW (WK_)
Description Cylinder Capacity Horse Power Year
1.4 16V 1397 CCM 95 HP 06/2007 - 10/2013
1.6 16V 1598 CCM 120 HP 06/2007 - 10/2013
1.6 HDi 1560 CCM 112 HP 08/2009 - 10/2013
1.6 HDi 1560 CCM 92 HP 11/2009 - 12/2013
208 I (CA_, CC_)
Description Cylinder Capacity Horse Power Year
1.6 THP 1598 CCM 156 HP 03/2012 - 12/2019
1.4 HDi 1398 CCM 68 HP 03/2012 - 12/2019
1.6 HDi 1560 CCM 92 HP 03/2012 - 12/2019
1.6 HDi 1560 CCM 114 HP 03/2012 - 12/2019
1.0 VTi 999 CCM 68 HP 03/2012 - 12/2019
1.2 VTI 82 1199 CCM 82 HP 03/2012 - 12/2019
1.6 VTi 1598 CCM 120 HP 03/2012 - 12/2019
1.6 GTi 1598 CCM 200 HP 08/2012 - 12/2019
1.2 THP 110 1199 CCM 110 HP 01/2013 - 12/2019
1.6 HDi / BlueHDi 75 1560 CCM 75 HP 01/2013 - 12/2019
1.6 GTi 1598 CCM 208 HP 10/2014 - 12/2019
1.6 BlueHDi 120 1560 CCM 120 HP 01/2015 - 12/2019
1.6 BlueHDi 100 1560 CCM 100 HP 01/2015 - 12/2019
1.6 THP 165 1598 CCM 165 HP 03/2015 - 12/2019
208 Hatchback Van (CR_)
Description Cylinder Capacity Horse Power Year
1.6 HDi 92 1560 CCM 92 HP 03/2014 - 12/2019
1.5 BlueHDi 100 1499 CCM 102 HP 05/2018 - 12/2019
301
Description Cylinder Capacity Horse Power Year
1.6 BlueHDi 100 1560 CCM 99 HP From 04/2014
1.2 VTi 82 1199 CCM 82 HP From 12/2014
1.5 BlueHDI 100 1499 CCM 102 HP From 05/2018
1.2 PureTech 82 1199 CCM 83 HP From 02/2018
2008 I (CU_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 1199 CCM 82 HP 03/2013 - 12/2018
1.6 VTi 1598 CCM 120 HP From 03/2013
1.6 HDi 1560 CCM 92 HP From 03/2013
1.6 HDi 1560 CCM 114 HP From 03/2013
1.4 HDi 1398 CCM 68 HP From 06/2013
1.6 BlueHDi 120 1560 CCM 120 HP 07/2014 - 04/2018
1.2 THP 110 / PureTech 110 1199 CCM 110 HP From 01/2015
1.2 THP 130 / PureTech 130 1199 CCM 130 HP 01/2015 - 11/2019
1.6 BlueHDi 100 1560 CCM 100 HP 01/2015 - 11/2019
1.6 BlueHDi 75 1560 CCM 75 HP 01/2015 - 11/2019
1.6 BlueHDi 1560 CCM 116 HP From 07/2014
1.2 PureTech 82 1199 CCM 82 HP 01/2018 - 12/2019
1.5 BlueHDI 120 1499 CCM 120 HP From 05/2018
1.5 BlueHDI 100 1499 CCM 102 HP From 05/2018
VAUXHALL
CROSSLAND X / CROSSLAND (P17)
Description Cylinder Capacity Horse Power Year
1.2 (75) 1199 CCM 83 HP From 03/2017
1.2 (75) 1199 CCM 110 HP From 03/2017
1.2 (75) 1199 CCM 131 HP From 03/2017
1.6 Turbo D (75) 1560 CCM 99 HP 03/2017 - 05/2018
1.6 Turbo D (75) 1560 CCM 120 HP 03/2017 - 05/2018
1.5 Turbo D (75) 1499 CCM 102 HP From 06/2018
1.5 Turbo D (75) 1499 CCM 120 HP From 08/2018
1.5 Turbo D ((75)) 1499 CCM 110 HP From 10/2020

The Bosch 0265009501 ABS Wheel Speed Sensor is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records Hall Sensor sensor type, with cable, -40 °C temperature range from, and rear axle fitting position. It is listed in the sensor, wheel speed product category. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.

Function : Sensor, wheel speed
Sensor Type : Hall Sensor
Supplementary Article/Supplementary Info 2 : with cable
Overall Length [mm] : 745
Temperature range from [°C] : -40
Temperature range to [°C] : 150
Construction Year to : 12.2024
Fitting Position : Rear Axle
Vehicle Equipment : for vehicles without collision warning system
  • Vendor BOSCH
  • SKU 0265009501
  • Barcode 4047025756433
  • GMC : 3641711
  • OPEL : 36 41 711
  • PEUGEOT : 98 050 660 80 98 050 665 80
  • VAUXHALL : 36 41 711
  • APEC : ABS1800
  • FEBI BILSTEIN : 172385
  • INTERMOTOR : 61116
  • MEYLE : 11-14 899 0028
  • BOSCH : WHEEL-SPEED SENSOR; DF11
