BOSCH

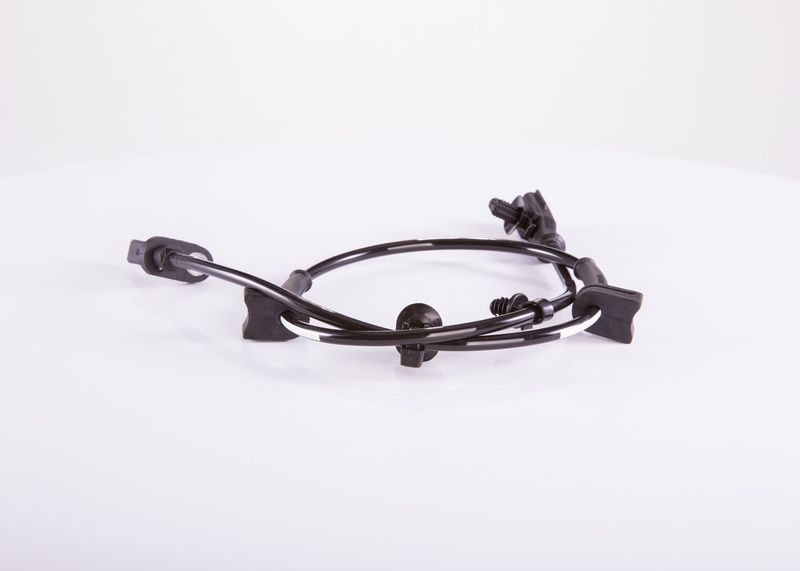

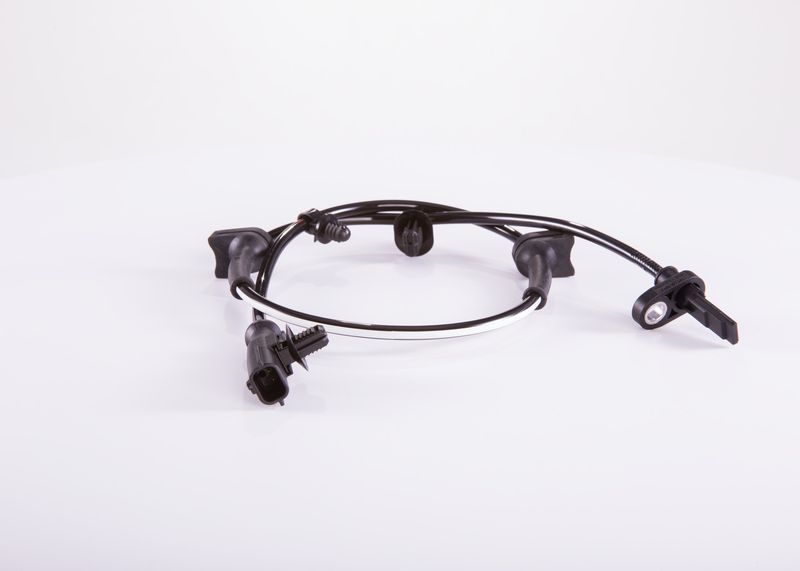

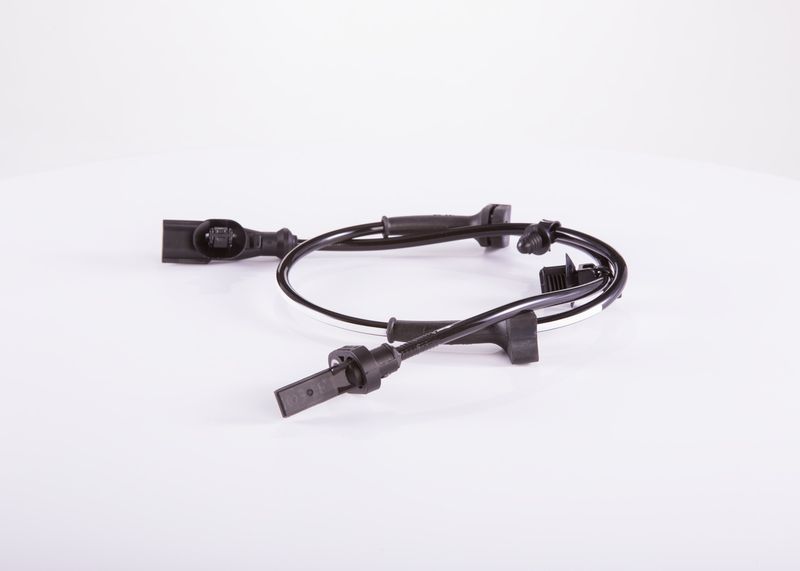

Bosch 0265009534 ABS Wheel Speed Sensor

SKU: 0265009534

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£26.90 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

B-MAX Van (JK)

Description	Cylinder Capacity	Horse Power	Year
1.0 EcoBoost	998 CCM	100 HP	From 10/2012

B-MAX (JK)

Description	Cylinder Capacity	Horse Power	Year
1.0 EcoBoost	998 CCM	100 HP	From 10/2012
1.0 EcoBoost	998 CCM	120 HP	From 10/2012
1.6 Ti	1596 CCM	105 HP	From 10/2012
1.6 TDCi	1560 CCM	95 HP	From 10/2012
1.4	1388 CCM	90 HP	From 10/2012
1.5 TDCi	1499 CCM	75 HP	From 10/2012
1.0 EcoBoost	998 CCM	125 HP	From 10/2012
1.4 LPG	1388 CCM	90 HP	From 08/2013
1.5 TDCi	1499 CCM	95 HP	From 04/2015
1.0 EcoBoost	998 CCM	140 HP	From 02/2016

FIESTA VI (CB1, CCN)

Description	Cylinder Capacity	Horse Power	Year
1.25	1242 CCM	60 HP	06/2008 - 04/2017
1.25	1242 CCM	82 HP	06/2008 - 04/2017
1.4 LPG	1388 CCM	97 HP	01/2009 - 04/2017
1.6 TDCi	1560 CCM	95 HP	02/2010 - 12/2015
1.0	998 CCM	65 HP	01/2013 - 04/2017
1.0 EcoBoost	998 CCM	100 HP	01/2013 - 12/2017
1.0 EcoBoost	998 CCM	125 HP	09/2012 - 12/2017
1.6 Ti	1596 CCM	105 HP	09/2012 - 04/2017

FIESTA VI Van

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	02/2010 - 05/2015
1.25	1242 CCM	82 HP	01/2009 - 04/2017
1.5 TDCi	1499 CCM	75 HP	10/2012 - 04/2017
1.0 EcoBoost	998 CCM	125 HP	09/2012 - 04/2017
1.0 EcoBoost	998 CCM	140 HP	05/2014 - 04/2017
1.0	998 CCM	65 HP	01/2013 - 04/2017
1.0 EcoBoost	998 CCM	100 HP	01/2013 - 04/2017
1.6 ST	1596 CCM	182 HP	03/2013 - 04/2017
1.5 TDCi	1499 CCM	95 HP	05/2015 - 04/2017
1.0	998 CCM	80 HP	10/2012 - 04/2017

FIESTA Saloon

Description	Cylinder Capacity	Horse Power	Year
1.6 Ti	1596 CCM	120 HP	04/2010 - 04/2017
1.6 Ti	1596 CCM	105 HP	03/2015 - 04/2017
1.6	1596 CCM	85 HP	03/2015 - 04/2017

TOURNEO COURIER B460 MPV

Description	Cylinder Capacity	Horse Power	Year
1.0 EcoBoost	998 CCM	100 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	75 HP	02/2014 - 12/2023
1.6 TDCi	1560 CCM	95 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	95 HP	05/2015 - 12/2023
1.5 EcoBlue	1499 CCM	100 HP	04/2018 - 12/2023

TRANSIT COURIER B460 Box Body/MPV

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	75 HP	02/2014 - 12/2023
1.0 EcoBoost	998 CCM	100 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	95 HP	05/2015 - 12/2023
1.5 EcoBlue	1499 CCM	100 HP	04/2018 - 12/2023

TRANSIT COURIER B460 MPV

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	75 HP	02/2014 - 12/2023
1.0 EcoBoost	998 CCM	100 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	95 HP	05/2015 - 12/2023
1.5 EcoBlue	1499 CCM	100 HP	04/2018 - 12/2023

The Bosch 0265009534 ABS Wheel Speed Sensor is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records Hall Sensor sensor type, with cable, -40 °C temperature range from, and front axle fitting position. It is listed in the sensor, wheel speed product category. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.

Function : Sensor, wheel speed

Sensor Type : Hall Sensor

Supplementary Article/Supplementary Info 2 : with cable

Overall Length [mm] : 715

Temperature range from [°C] : -40

Temperature range to [°C] : 150

Construction Year from : 02.2013

Construction Year to : 12.2018

Fitting Position : Front Axle

Bosch 0265009534 ABS Wheel Speed Sensor
