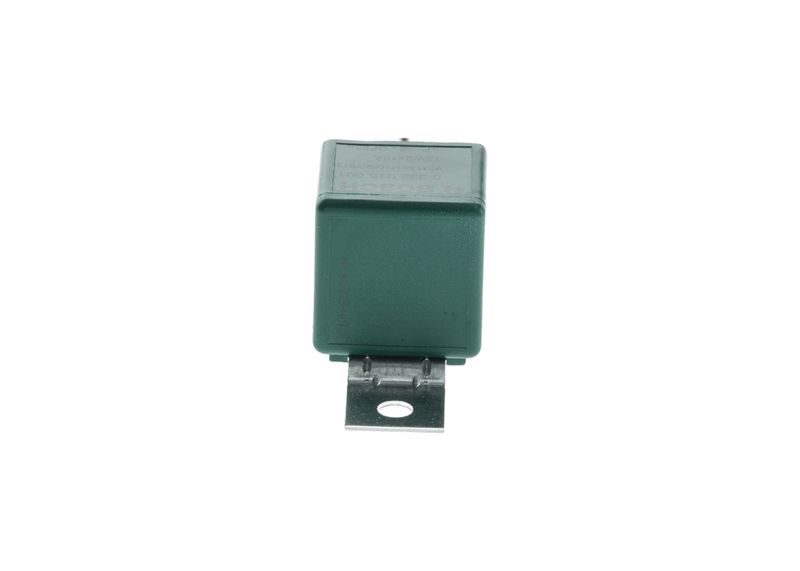

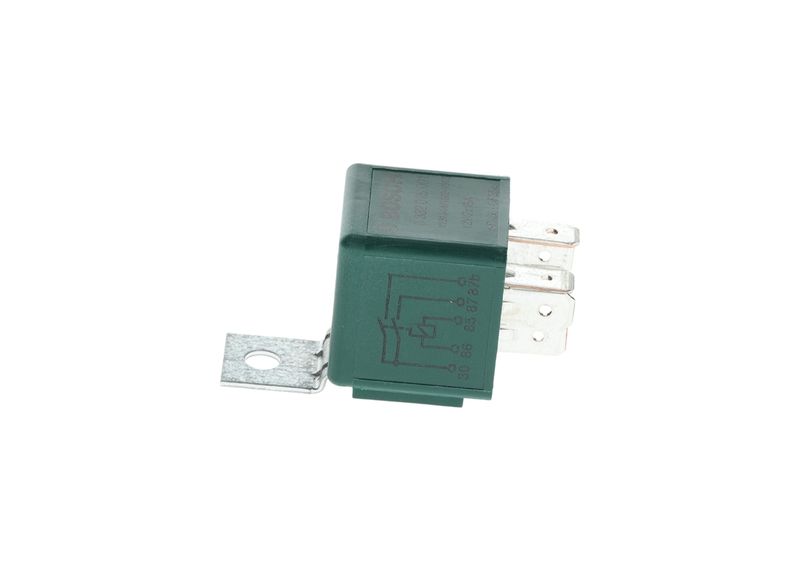

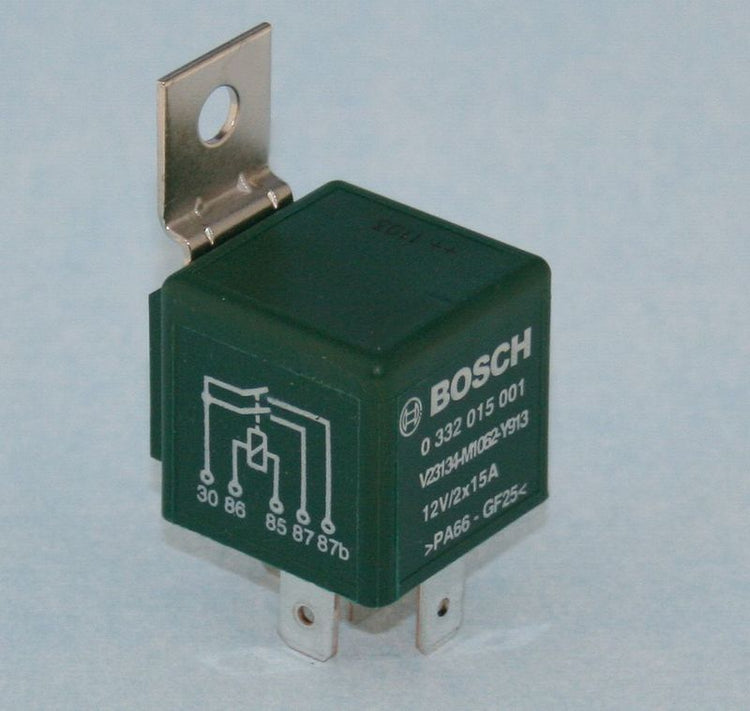

Bosch 0332015001 Relay, main current
Your selected vehicle
Regular price
£13.23
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Bosch 0332015001 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 12 V electrical rating, 5 pins, -40 °C temperature range from, and 85 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Switch Function :
Normally Open Contact
Current Strength [A] :
15
Voltage [V] :
12
Number of pins :
5
Relay function :
Trumpet Horns
Temperature range from [°C] :
-40
Temperature range to [°C] :
85
Resistor [Ohm] :
32
- Vendor BOSCH
- SKU 0332015001
- ALFA ROMEO : 10508650920000 531113
- AUTO UNION : 30383860305000
- BMW : 1 358 198 13581983 61 31 1 358 170 61 32 1 358 198
- DAIMLER : A0005458005
- KÄSSBOHRER : 7375038000
- MAGIRUS-DEUTZ : N92320B1 01239059 123 9059
- MAN : 81 25902 0110 81 25902 7010 90 81616 0351
- MERCEDES-BENZ : A 000 542 50 19 A 000 545 80 05 000 542 50 19 000 545 80 05
- NSU : 568100525
- RENAULT : 77 00 266 096 77 00 266 296
- VOLVO : 1128697 1235013
- FAUN : 1731 060 1731 199
- FENDT : X830250002
- LUCAS : SRB528
- MAHLE : MR 8
