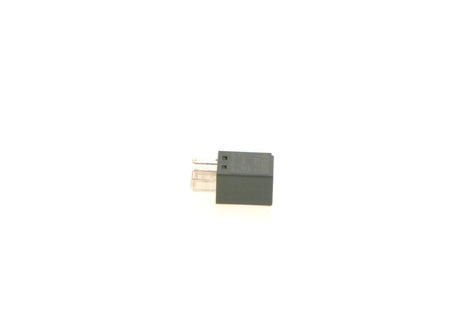

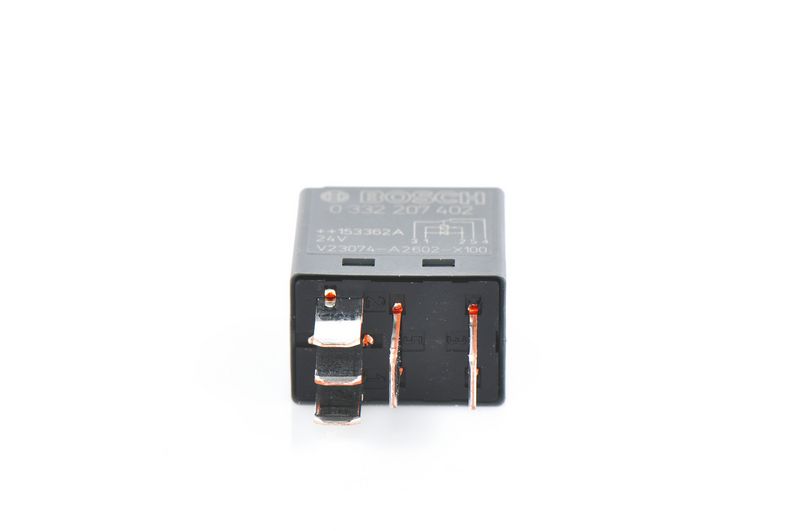

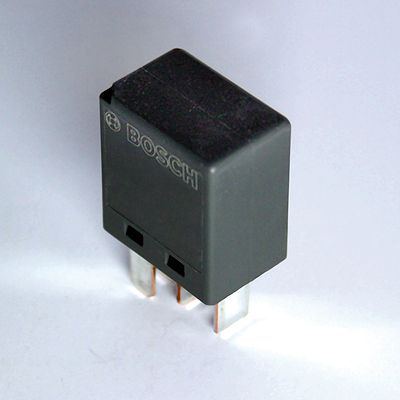

Bosch 0332207402 Relay, main current
Your selected vehicle
Regular price
£10.56
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Bosch 0332207402 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, Synthetic Material Housing housing type, IP20 protection type (ip code), and -40 °C temperature range from. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Current Strength [A] :
10
Voltage [V] :
24
Number of pins :
5
Relay function :
Normally open contact
Housing Type :
Synthetic Material Housing
Switch Function :
Changeover Contact
Protection Type (IP Code) :
IP20
Temperature range from [°C] :
-40
Temperature range to [°C] :
100
Resistor [Ohm] :
16
Supplementary Article/Supplementary Info :
without holder
Housing Colour :
black/grey
- Vendor BOSCH
- SKU 0332207402
- DAF : 1301879
- DAIMLER : A0025423019
- KÄSSBOHRER : 7375181000
- MERCEDES-BENZ : A 002 542 27 19 A 002 542 30 19 A 737 518 10 00 002 542 27 19 002 542 30 19 737 518 10 00
- SCANIA : 1320483
- VOLVO : 3093031
- FEBI BILSTEIN : 37688
- BOSCH : RW402
