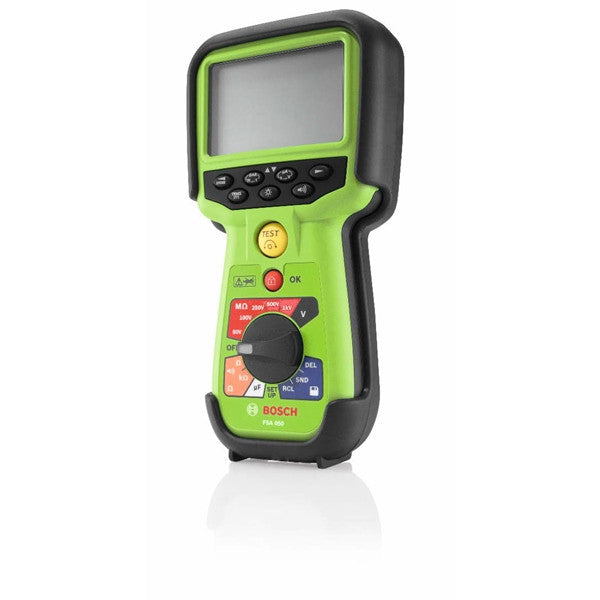

FSA 050 Hybrid Tester
FSA 050 Hybrid Tester
BOSCH

FSA 050 Hybrid Tester

SKU: 0684010050
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£1,531.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

The FSA 050 Hybrid Tester is a workshop service or equipment product that supports the inspection, inflation, programming or maintenance task stated in its product data. Use Bosch reference 0684010050 when cross-checking the part. Confirm the operating range, voltage or pressure, connections, included parts and intended application before use, and follow the equipment manufacturer's safety instructions.

  • Wireless connectivity: Conntect with Bosch Connected Repair or other workshop networks to help you work more efficiently
  • Complete with storage case, two measuring cables, high-voltage probe, CD/DVD CompacSoft[plus] and Bluetooth USB stick: It’s the economical package for testing electrical drive systems
  • Bluetooth interface: Ultimate convenience – wirelessly transmit test results to workshop PC or FSA series
  • Lightweight (0.8 kg): The mobile solution around the workshop
  • Compact (220 x 110 x 65 mm): Handy size for efficient working
  • Combines as a test module with FSA 500: Enhance functionality and output to comprehensively document measurement test results
  • Standalone tester: Get fast results with insulation and high-voltage testing for electric and hybrid drive
Technical Info
  • High-voltage analysis: up to 600 V (TRMS)
  • Insulation analysis:until 200 G Ω
  • Insulation resistance: 50 - 100 - 250 - 500 - 1 000 V
  • Test voltages: 1 mA
  • Test current Measurement modes: t, PI, DAR
  • Resistance measurement: 0.01 - 1 000 kOhm
  • Continuity testing: 0.01 - 99.9 Ohm with test current 20 mA / 205 mA
  • Capacitance measurement: 100 picofarad - 10 microfarad
  • Data transmission: Bluetooth class I (up to 30 m range)
  • Power supply: Batteries 5x IEC LR6 (AA)
  • Operating temperature range -20 - 55 degree(C)
  • Weight: 0.8 kg
  • Dimensions: 220 x 92 x 50 mm
Length 489
Thickness 129
Width 389
Weight 4.58
The FSA 050 high-voltage multimeter tests all electrical drive systems and is the fast and convenient way to competently troubleshoot faults with electric and hybrid vehicles. With the handy FSA 050 in your workshop, you’ll be up-to-date and prepared for the trend towards electrical drives.
  • Vendor BOSCH
  • SKU 0684010050
  • Barcode 4047024752207
