BOSCH

Bosch 0986010310 Starter Motor

SKU: 0986010310
Your selected vehicle
Out of stock
Out of Stock
£156.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
9 (L42_)
Description Cylinder Capacity Horse Power Year
1.1 (L421) 1108 CCM 48 HP 09/1981 - 05/1987
1.4 (L422, L42C) 1397 CCM 60 HP 12/1981 - 12/1988
1.4 (L423, L42R) 1397 CCM 67 HP 09/1985 - 12/1988
1.4 Automatik (L423) 1397 CCM 68 HP 09/1981 - 12/1985
1.4 (L423) 1397 CCM 72 HP 09/1981 - 12/1985
1.2 (L42S) 1237 CCM 54 HP 09/1985 - 12/1988
1.4 Turbo (L425) 1397 CCM 105 HP 04/1984 - 12/1986
1.4 Turbo 1397 CCM 116 HP 12/1986 - 12/1989
1.4 Turbo 1397 CCM 118 HP 07/1986 - 12/1989
VOLVO
440 (445)
Description Cylinder Capacity Horse Power Year
1.7 1721 CCM 95 HP 08/1988 - 07/1989
1.7 1721 CCM 106 HP 09/1988 - 12/1996
1.7 Turbo 1721 CCM 120 HP 08/1988 - 07/1996
1.7 1721 CCM 87 HP 09/1988 - 12/1996
1.7 1721 CCM 102 HP 08/1989 - 12/1996
1.8 1794 CCM 90 HP 08/1991 - 07/1996
2.0 1998 CCM 110 HP 08/1992 - 07/1995
2.0 1998 CCM 109 HP 08/1993 - 07/1996
1.6 1596 CCM 83 HP 09/1988 - 12/1996
1.8 1794 CCM 90 HP 09/1995 - 12/1996
1.7 Turbo 1721 CCM 122 HP 01/1991 - 12/1996
1.7 1721 CCM 78 HP 09/1988 - 08/1992
1.6 1596 CCM 93 HP 09/1991 - 08/1993
1.7 1721 CCM 81 HP 09/1988 - 08/1989
460 (464)
Description Cylinder Capacity Horse Power Year
1.7 Turbo 1721 CCM 120 HP 08/1989 - 07/1996
1.7 1721 CCM 102 HP 08/1989 - 07/1992
1.8 1794 CCM 90 HP 08/1991 - 07/1996
2.0 1998 CCM 110 HP 08/1992 - 07/1995
2.0 1998 CCM 109 HP 08/1993 - 07/1996
1.6 1596 CCM 83 HP 07/1992 - 07/1996
1.7 Turbo 1721 CCM 122 HP 01/1991 - 07/1996
1.7 1721 CCM 90 HP 09/1990 - 07/1996
1.7 1721 CCM 87 HP 09/1988 - 07/1996
1.7 1721 CCM 109 HP 08/1989 - 07/1992
480 (482)
Description Cylinder Capacity Horse Power Year
1.7 1721 CCM 95 HP 08/1987 - 07/1989
1.7 1721 CCM 109 HP 08/1986 - 07/1988
1.7 Turbo 1721 CCM 120 HP 08/1987 - 07/1996
1.7 1721 CCM 102 HP 08/1989 - 07/1996
1.7 Turbo 1721 CCM 122 HP 01/1991 - 07/1996
2.0 1998 CCM 110 HP 08/1992 - 09/1995
1.7 1721 CCM 106 HP 04/1986 - 07/1989

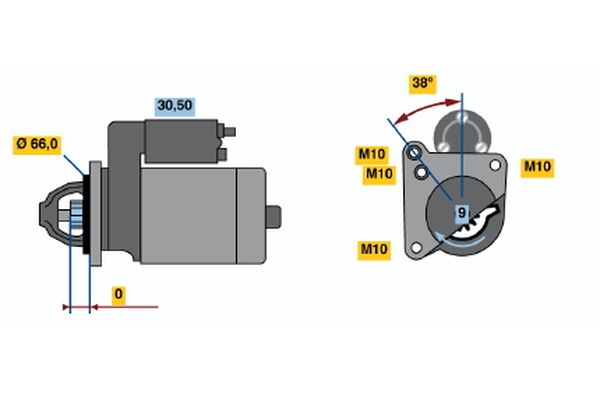

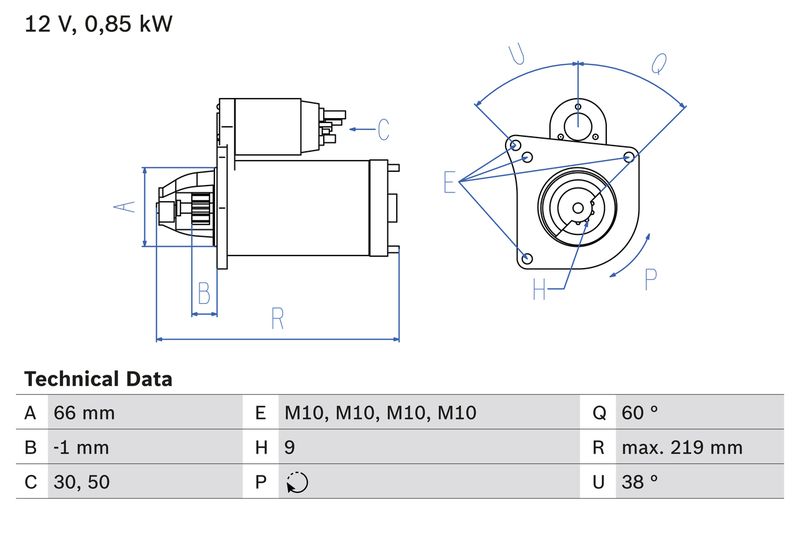

The Bosch 0986010310 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.85 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 0.85
Number of mounting bores : 0
Number of threaded holes : 4
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 66
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : -1
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Thread Size 3 : M10x1.5
Length [mm] : 219
Position/Degree : links
Mounting Angle [degrees] : 38
Jaw opening angle measurement [Degree] : 60
Mounting bore angle measurement [degree] : 38
Construction Year from : 10.1986
Construction Year to : 06.1987
  • Vendor BOSCH
  • SKU 0986010310
  • Barcode 3165141018226
  • RENAULT : 00 00 434 120 77 00 703 490 77 01 349 264 77 01 351 027 77 01 499 247
  • VOLVO : 3412455 3430012 9031302
  • APEC : ASM1578
  • Carwood Group : BREF0320986010310
  • Carwood Group : BREF032110585
  • HELLA : 8EA 011 610-331
  • LUCAS : LRS00505
  • MAHLE : MS 375
  • NAPA : NSM1578
  • VALEO : 432628
  • VALEO : 436081
  • WAI : 30177N
  • WAI : S133.794
  • BOSCH : 1031
