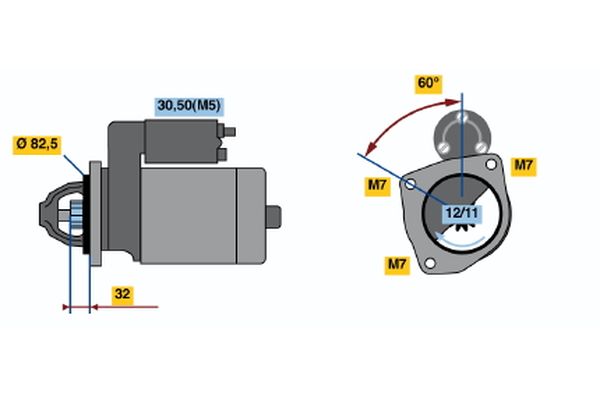

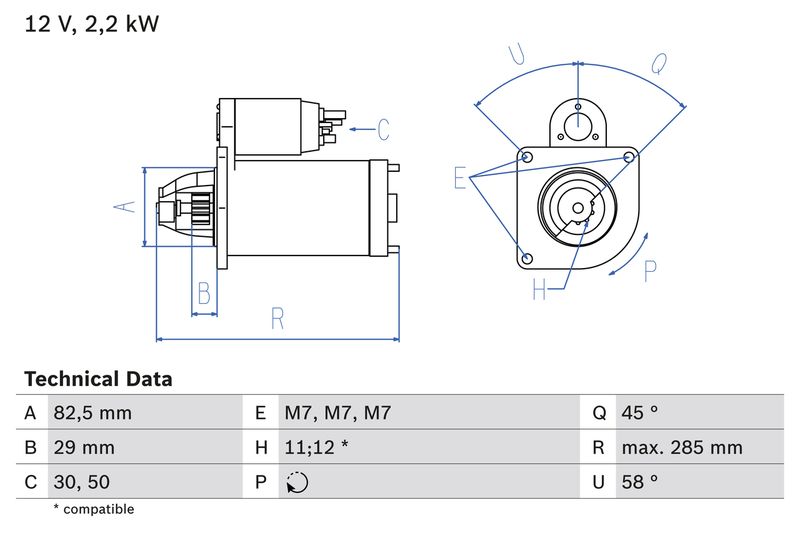

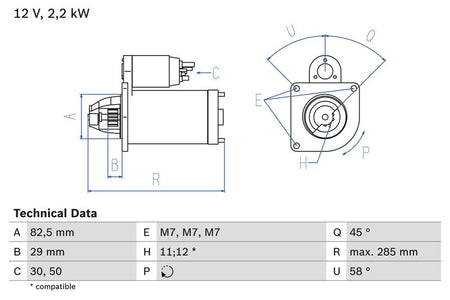

Bosch 0986010600 Starter - 1
Bosch 0986010600 Starter - 2
Bosch 0986010600 Starter - 1
Bosch 0986010600 Starter - 2
BOSCH

Bosch 0986010600 Starter Motor

SKU: 0986010600
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£183.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
CX   (MA)
Description Cylinder Capacity Horse Power Year
25 D Turbo 2499 CCM 95 HP 04/1983 - 08/1985
CX   Break (MA)
Description Cylinder Capacity Horse Power Year
2500 D Turbo 2499 CCM 95 HP 04/1983 - 08/1985
CX II
Description Cylinder Capacity Horse Power Year
25 D Turbo 2499 CCM 95 HP 08/1985 - 12/1986
CX Mk II Break
Description Cylinder Capacity Horse Power Year
2500 D Turbo 2499 CCM 95 HP 08/1985 - 12/1986
PEUGEOT
J5 Platform/Chassis (280L)
Description Cylinder Capacity Horse Power Year
2.5 D 2500 CCM 73 HP 09/1981 - 09/1990
J5 Bus (280P)
Description Cylinder Capacity Horse Power Year
2.5 D 2498 CCM 73 HP 09/1981 - 09/1990
J5 Van (280L)
Description Cylinder Capacity Horse Power Year
2.5 D 2498 CCM 73 HP 09/1981 - 08/1990
2.5 DT 2498 CCM 95 HP 09/1981 - 08/1990
2.5 DT All-wheel Drive 2498 CCM 95 HP 09/1981 - 08/1990
J5 Platform/Chassis (290L)
Description Cylinder Capacity Horse Power Year
2.5 TD 2500 CCM 95 HP 10/1990 - 02/1994
2.5 TD 4x4 2500 CCM 95 HP 10/1990 - 02/1994
2.5 D 2500 CCM 73 HP 10/1990 - 02/1994
2.5 D 4x4 2500 CCM 73 HP 10/1990 - 02/1994
J5 Bus (290P)
Description Cylinder Capacity Horse Power Year
2.5 TD 2498 CCM 95 HP 10/1990 - 02/1994
2.5 D 4x4 2500 CCM 73 HP 10/1990 - 02/1994
2.5 TD 4x4 2500 CCM 95 HP 10/1990 - 02/1994
2.5 D 2500 CCM 73 HP 10/1990 - 02/1994
J5 Van (290L)
Description Cylinder Capacity Horse Power Year
2.5 D 4x4 2500 CCM 73 HP 10/1990 - 03/1994
2.5 TD 4x4 2500 CCM 95 HP 10/1990 - 03/1994
2.5 D 2498 CCM 73 HP 09/1990 - 01/1994
2.5 DT 2498 CCM 95 HP 09/1990 - 01/1994

The Bosch 0986010600 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 12 and 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 3
Number of threaded holes : 3
Number of Teeth : 12
Number of Teeth : 11
Clamp : 50
Flange Diameter [mm] : 82.5
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 29
Starter Type : Self-supporting
Thread Size : M7
Thread Size 1 : M7x1
Thread Size 2 : M7x1
Length [mm] : 285
Position/Degree : links
Mounting Angle [degrees] : 58
Jaw opening angle measurement [Degree] : 45
Mounting bore angle measurement [degree] : 58
  • Vendor BOSCH
  • SKU 0986010600
  • Barcode 3165141025866
  • CITROËN : 5802 L5 5802 P7 5802 85 5802 93 95 495 849 95 583 854 80 95 619 197
  • PEUGEOT : 5802 L5 5802 P7 5802 85 5802 93 95 495 849 95 583 854 80 95 619 197
  • BOSCH : 1 986 S01 261
  • Carwood Group : BREF0320986010600
  • Carwood Group : BREF032111115
  • Carwood Group : BREF0321986S01261
  • LUCAS : LRS00650
  • VALEO : 201189
  • WAI : 30651N
  • BOSCH : 1060
