Bosch 0986011140 Starter Motor
Your selected vehicle
Regular price
£265.65
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

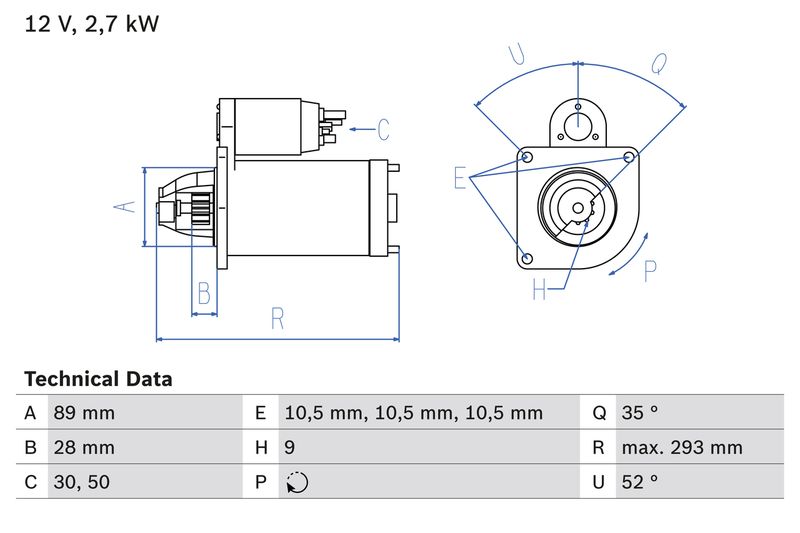

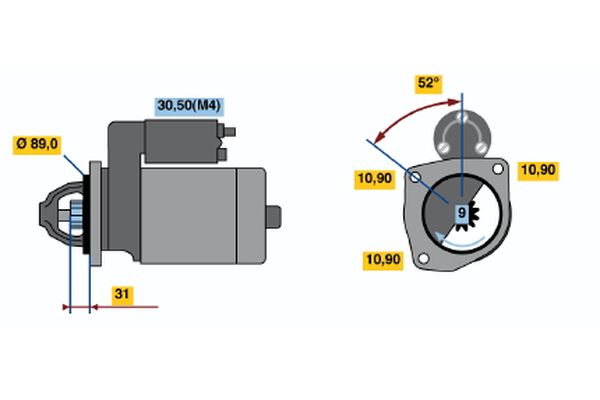

The Bosch 0986011140 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.7 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.7
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
28
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Bore Ø 3 [mm] :
10.5
Length [mm] :
293
Position/Degree :
links
Mounting Angle [degrees] :
52
Jaw opening angle measurement [Degree] :
35
Mounting bore angle measurement [degree] :
52
- Vendor BOSCH
- SKU 0986011140
- BOSCH : 1 986 S00 992
- Carwood Group : BREF0320986011140
- Carwood Group : BREF032110536
- Carwood Group : BREF032116139
- Carwood Group : BREF032116312
- Carwood Group : BREF0321986S00992
- HELLA : 8EA 011 610-941
- LUCAS : LRS00762
- MAHLE : MS 277
- VALEO : 433318
- VALEO : 438187
- WAI : 17074N
- WAI : 17075N
- BOSCH : 1114
