Bosch 0986011160 Starter Motor
Your selected vehicle
Regular price
£136.31
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

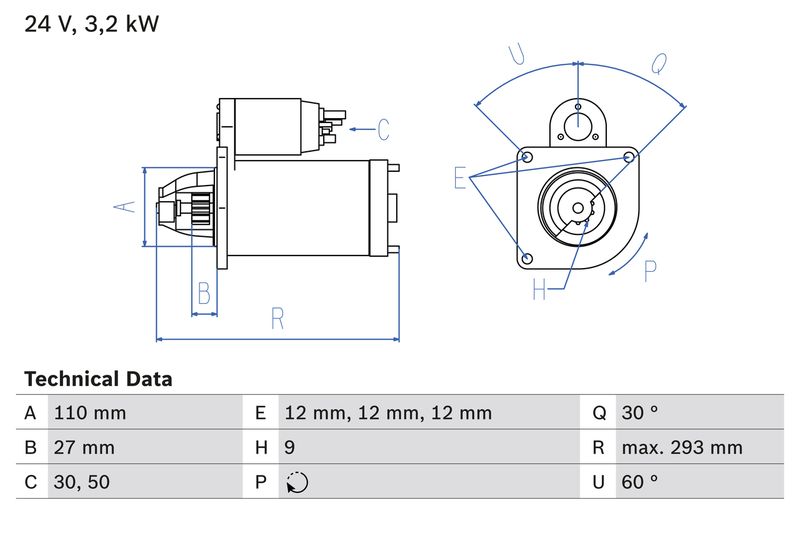

The Bosch 0986011160 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 3.2 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
3.2
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
110
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
27
Starter Type :
Self-supporting
Bore Diameter [mm] :
12
Bore Diameter 2 [mm] :
12
Bore Ø 3 [mm] :
12
Length [mm] :
293
Position/Degree :
links
Mounting Angle [degrees] :
60
Jaw opening angle measurement [Degree] :
30
Mounting bore angle measurement [degree] :
60
- Vendor BOSCH
- SKU 0986011160
- Carwood Group : BREF0320986011160
- Carwood Group : BREF032110517
- HELLA : 8EA 012 586-061
- LUCAS : LRS00839
- MAHLE : MS 389
- MAHLE : MS 448
- VALEO : 455517
- WAI : 18031N
- WAI : 31758N
- BOSCH : 1116
