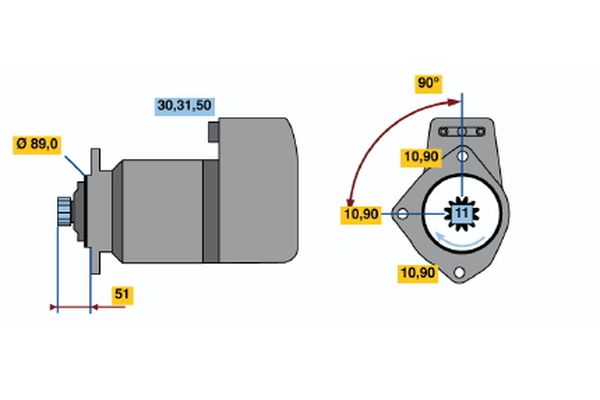

The Bosch 0986011480 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 5.4 kW rated power, 11 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
5.4
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
11
Clamp :
30
Clamp :
50
Clamp :
31
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
47.5
Starter Type :
Floating pinion
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Bore Ø 3 [mm] :
10.5
Length [mm] :
375
Position/Degree :
rechts
Mounting Angle [degrees] :
90
Mounting bore angle measurement [degree] :
90
- Vendor BOSCH
- SKU 0986011480
- Carwood Group : BREF0320986011480
- Carwood Group : BREF032114438
- Carwood Group : BREF032114744
- LUCAS : LRS01883
- MAHLE : MS 675
- WAI : 18117N
- BOSCH : 1148
